English – 13
ASSEMBLY
1151416-95 Rev. 1 2008-12-23

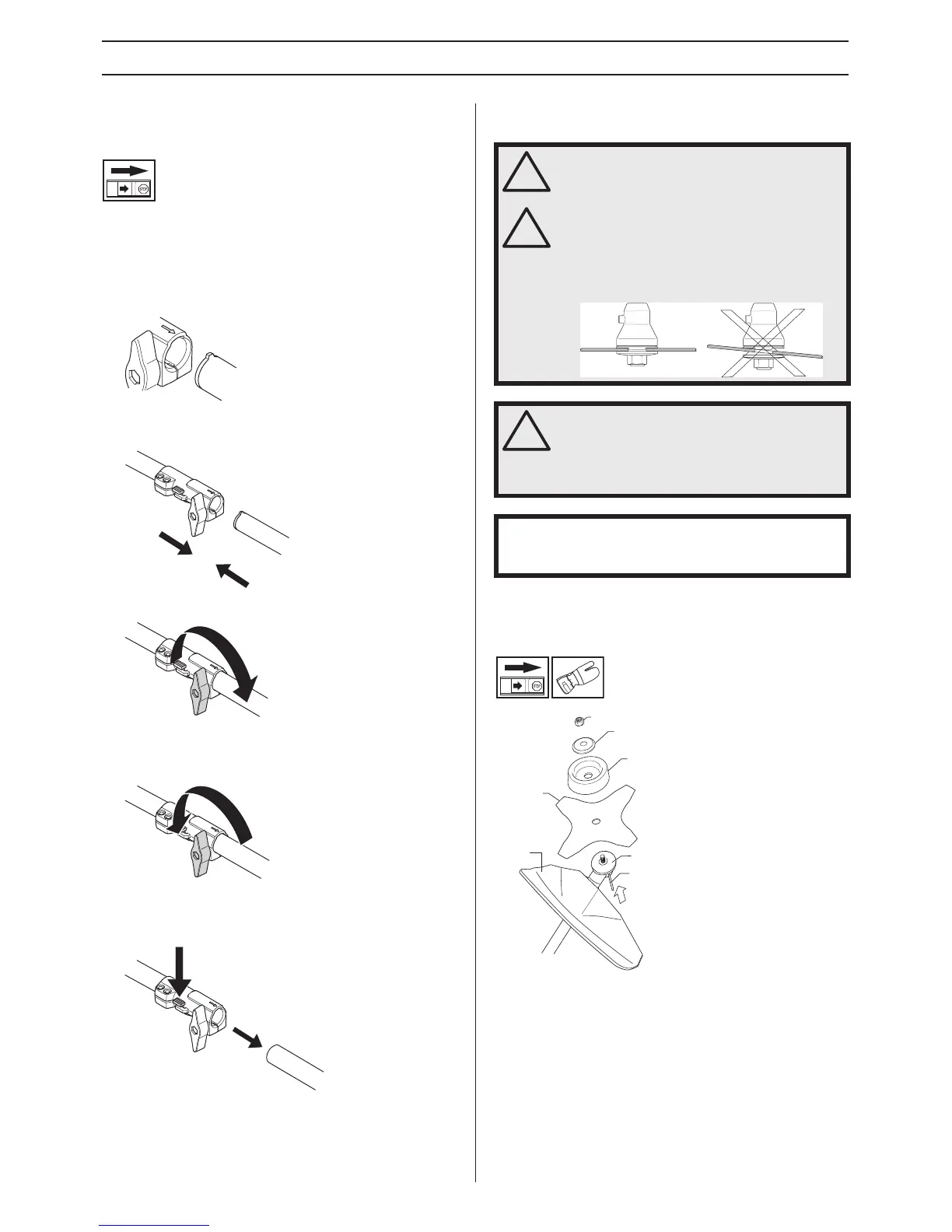

Assembling and dismantling the
two-piece shaft (325RDx)
Assembly
• Loosen the coupling by turning the knob.
• Align the tab of the attachment (A) with the arrow on the
coupling (B).
• Push the attachment into the coupling until the attachment
snaps into place.
• Before using the unit, tighten the knob securely.
Dismantling
• Loosen the coupling by turning the knob (at least 3 times).
• Push and hold the button (C). While securely holding the
engine end, pull the attachment straight out of the
coupling.
Assembling the cutting equipment
Fitting a blade guard, grass blade
and grass cutter
• Hook the blade guard/combination guard (A) onto the
fitting on the shaft and secure with the bolt.
CAUTION! Use the recommended blade guard. See the
Technical data section.
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive disc
aligns with the corresponding hole in the gear housing.
• Insert the locking pin (C) in the hole to lock the shaft.
A
B
C
!
WARNING!
When fitting the cutting attachment it is
extremely important that the raised section
on the drive disc/support flange engages
correctly in the centre hole of the cutting
attachment. If the cutting attachment is fitted
incorrectly it can result in serious and/or
fatal personal injury.
!
!
WARNING! Never use a cutting attachment
without an approved guard. See the chapter
on Technical data. If an incorrect or faulty
guard is fitted this can cause serious
personal injury.
IMPORTANT! If a saw blade or grass blade are to be used
the machine must be equipped with the correct handlebar,
blade guard and harness.
G
F
D
B
C
A
E
