ASSEMBLY
14 – English

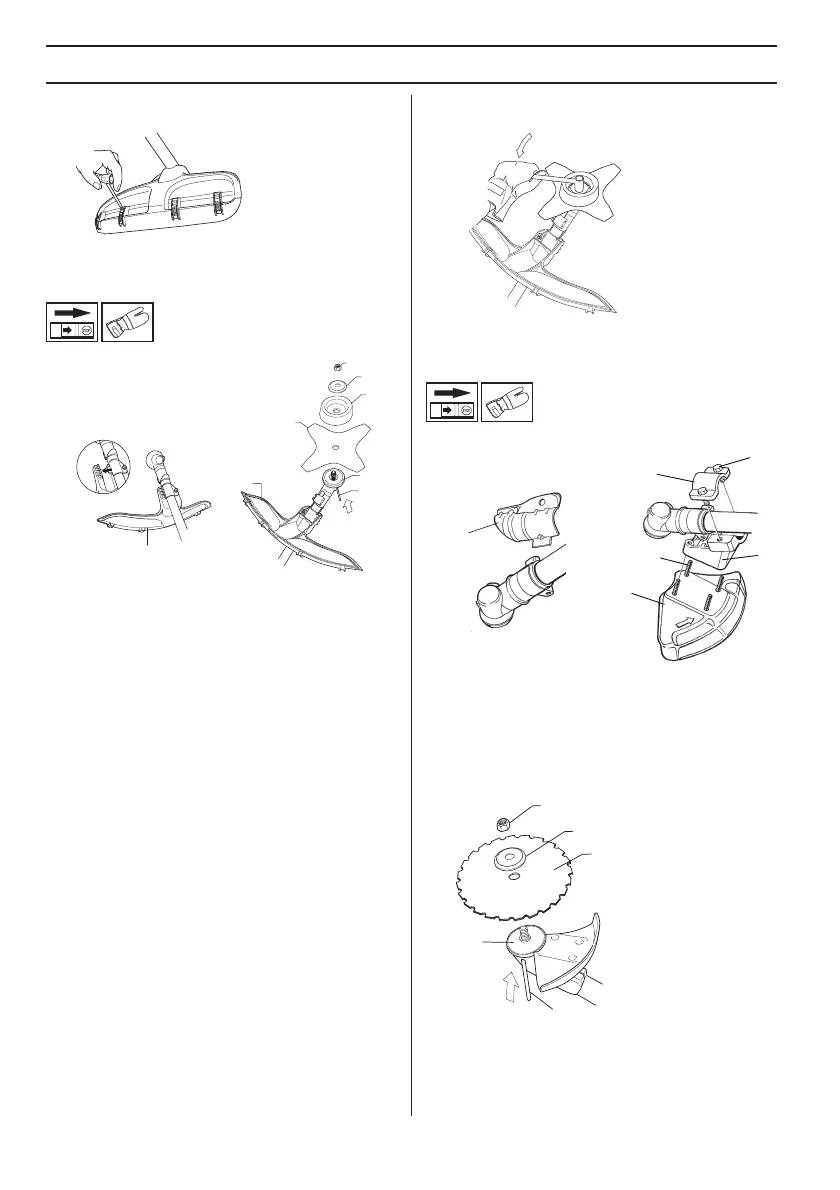

The guard extension is removed easily using the spark
plug spanner, see illustration.
Fitting a blade guard, grass blade
and grass cutter
• Hook the blade guard/combination guard (A) onto the
fitting on the shaft and secure with the bolt.
CAUTION! Ensure that the guard extension is
removed.
Use the recommended blade guard. See the
Technical data section.
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive
disc aligns with the corresponding hole in the gear
housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Place the blade (D), support cup (E) and support
flange (F) on the output shaft.
• Fit the nut (G). The nut must be tightened to a torque
of 35-50 Nm (3.5-5 kpm). Use the socket spanner in
the tool kit. Hold the shaft of the spanner as close to
the blade guard as possible. To tighten the nut, turn
the spanner in the opposite direction to the direction
of rotation (Caution! left-hand thread).
Fitting the blade guard and saw
blade
• Remove the mounting plate (H). Fit the adapter (I) and
bracket (J) with the two screws (K) as shown. Fit the
blade guard (A) to the adapter using the 4 screws (L)
as shown.
CAUTION! Use the recommended blade guard. See
the Technical data section.
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive
disc aligns with the corresponding hole in the gear
housing.
G
F
D
B
C
A
E
A
A
L
I
J
K
H
F
D
B
C
G
