ASSEMBLY
English – 15

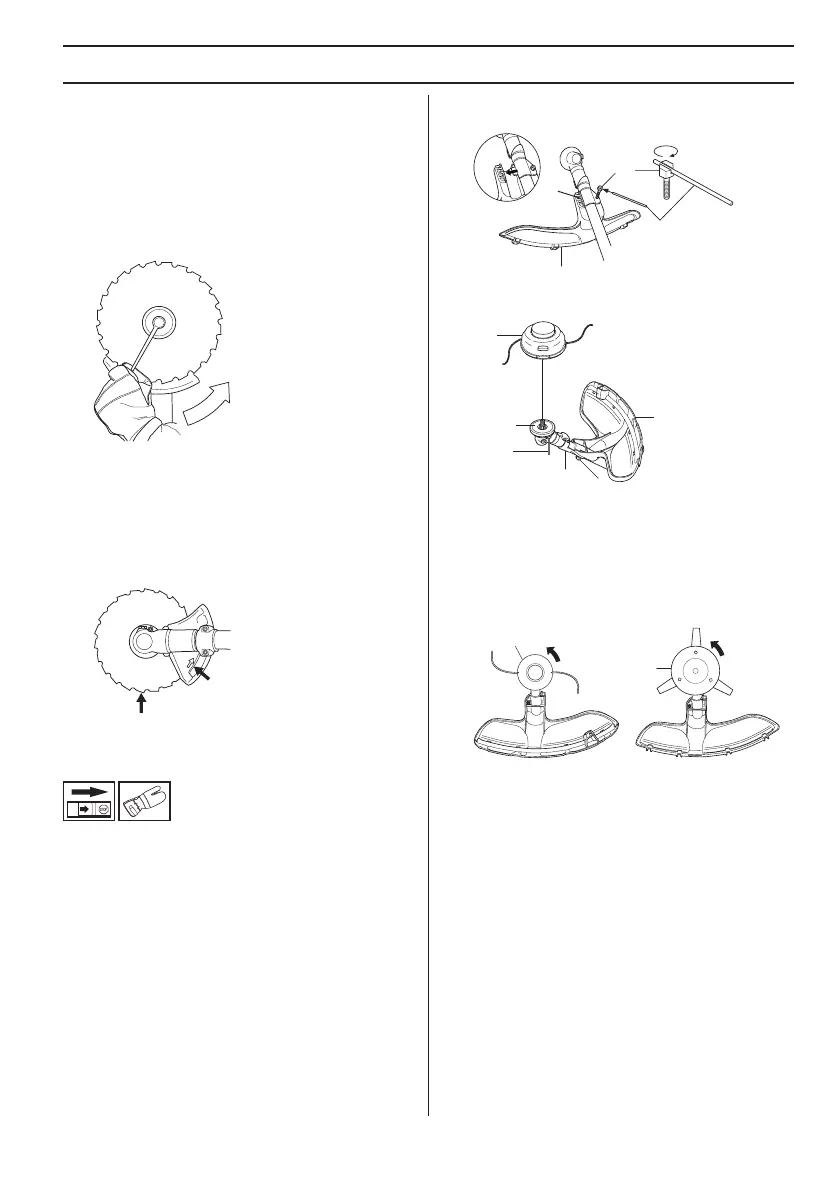

• Insert the locking pin (C) in the hole to lock the shaft.
• Place the blade (D) and support flange (F) on the
output shaft.
• Fit the nut (G). The nut must be tightened to a torque
of 35-50 Nm (3.5-5 kpm). Use the socket spanner in
the tool kit. Hold the shaft of the spanner as close to
the blade guard as possible. To tighten the nut, turn
the spanner in the opposite direction to the direction
of rotation (Caution! left-hand thread).
• When loosening and tightening the saw blade nut,
there is a risk of injury from the teeth of the saw blade.
You should therefore always ensure that your hand is
shielded by the blade guard when doing this. Always
use a socket spanner with a shaft that is long enough
to allow this. The arrow in the diagram shows the area
where you should operate the socket spanner when
loosening or tightening the nut.
Fitting other guards and cutting
attachments
• Fit the trimmer guard/combination guard (A) intended
for use with the trimmer head/plastic blades.
CAUTION! Ensure that the guard extension is fitted.
Hang the trimmer guard/combination guard (A) on the
two hooks on the plate holder (M). Bend the guard
around the shaft and tighten it with the bolt (L) on the
opposite side of the shaft. Use the locking pin (C).
Place the locking pin in the groove on the screw head
and tighten. See diagram.
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive
disc aligns with the corresponding hole in the gear
housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Screw on the trimmer head/plastic blades (H) in the
opposite direction to the direction of rotation.
• To dismantle, follow the instructions in the reverse
order.
