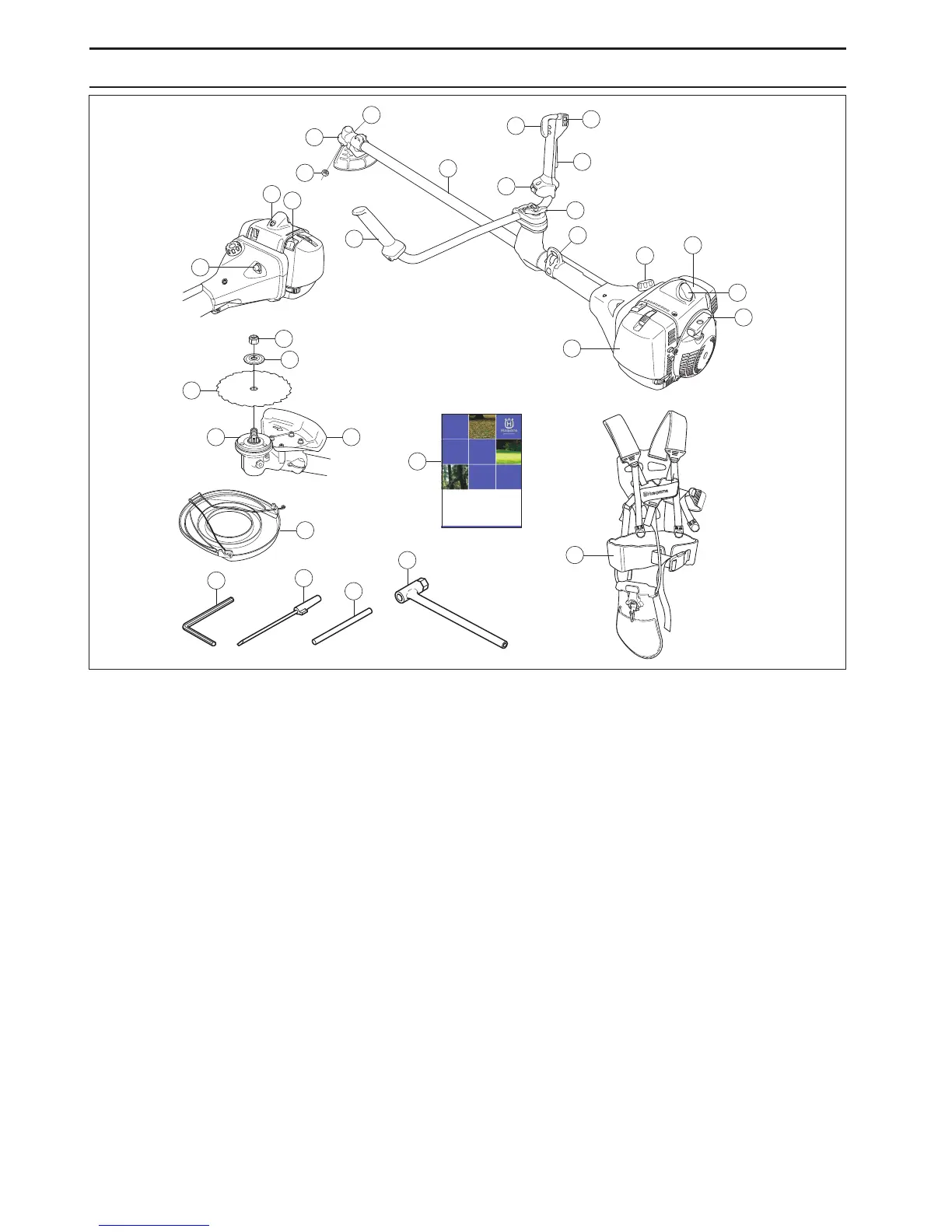

What is what on the brush cutter? (355FX,
355FXT)
19
17
18
24
28
26
27
25
29
21
2322
1
20
30
16
2
3
4
6
11
12
10
14
13
15
1
7
8
5
9
1
Locking nut
2 Bevel gear
3 Grease filler cap, bevel gear
4 Shaft
5 Switch for heated handle (355FXT)
6 Throttle control
7 Stop switch
8 Throttle lockout
9 Handle adjustment
10 Support eyes for harness
11 Fuel tank
12 Cylinder cover
13 Spark plug cap and spark plug
14 Starter handle
15 Air filter cover
16 Handlebar
17 Air purge
18 Decompression valve
19 Choke control
20 Support flange
21 Saw blade
22 Drive disc
23 Cutting attachment guard
24 Transport guard
25 Operator
′
s manual
26 Allen key
27 Carburettor screwdriver
28 Locking pin
29 Socket spanner
30 Harness
