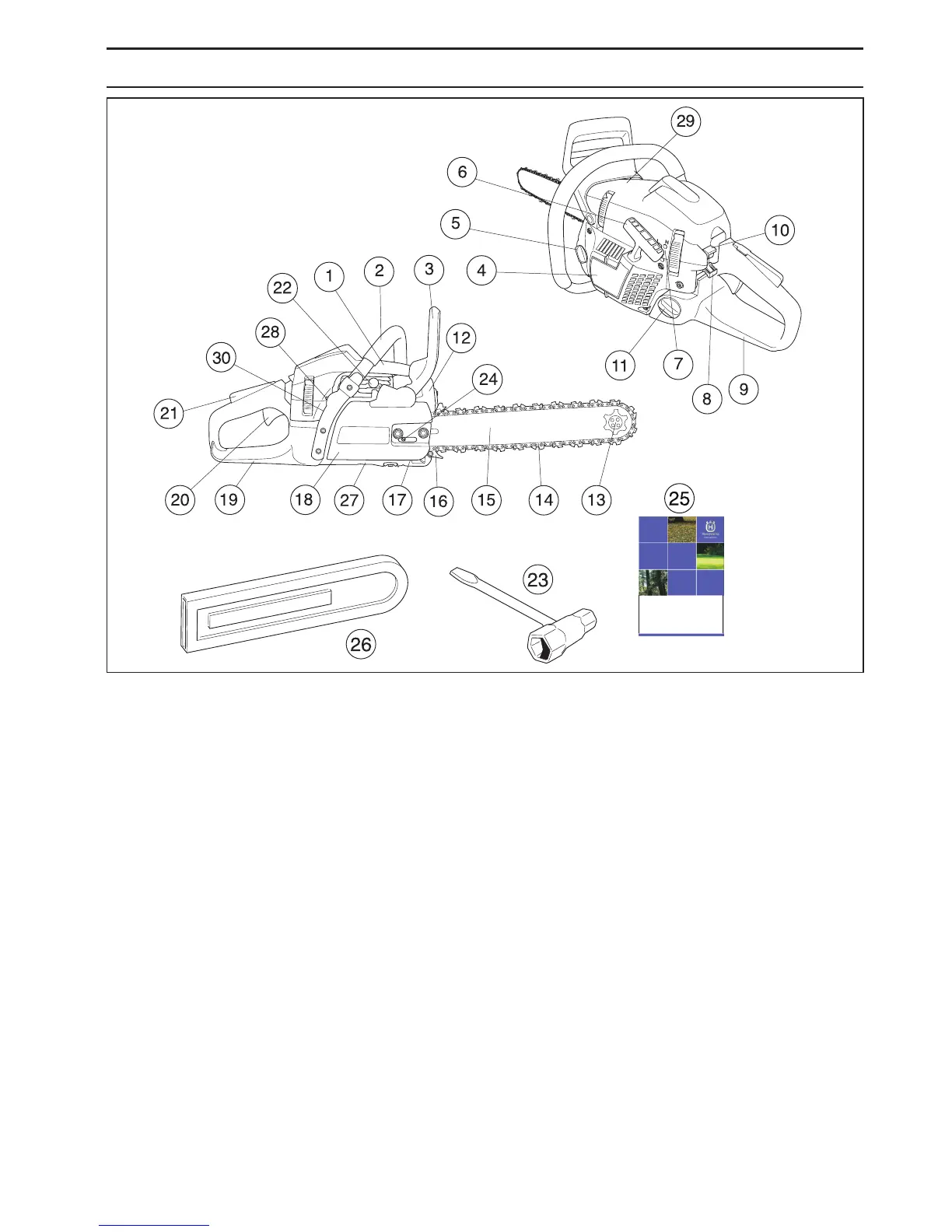

What is what on the c
hain saw?
1
Cylinder cover
2 Front handle
3 Chain brake and front hand guard
4 Starter
5 Chain oil tank
6 Starter handle
7 Adjuster screws carburettor
8 Choke control/Start throttle lock
9 Rear handle
10 Stop switch (Ignition on/off switch.)
11 Fuel tank
12 Muffler
13 Bar tip sprocket
14 Chain
15 Bar
16 Spike bumper
17 Chain catcher
18 Clutch cover
19 Rear handle with right hand guard
20 Throttle control
21 Throttle lockout
22 Decompression valve (Model 359) Automatic
decompression valve (Model 357XP)
23 Combination spanner
24 Chain tensioning screw
25 Operator
′
s manual
26 Transport guard
27 Oil pump adjustment screw
28 Switch for heated handle (Models 357XPG, 359G)
29 Information and warning decal
30 Product and serial number plate
