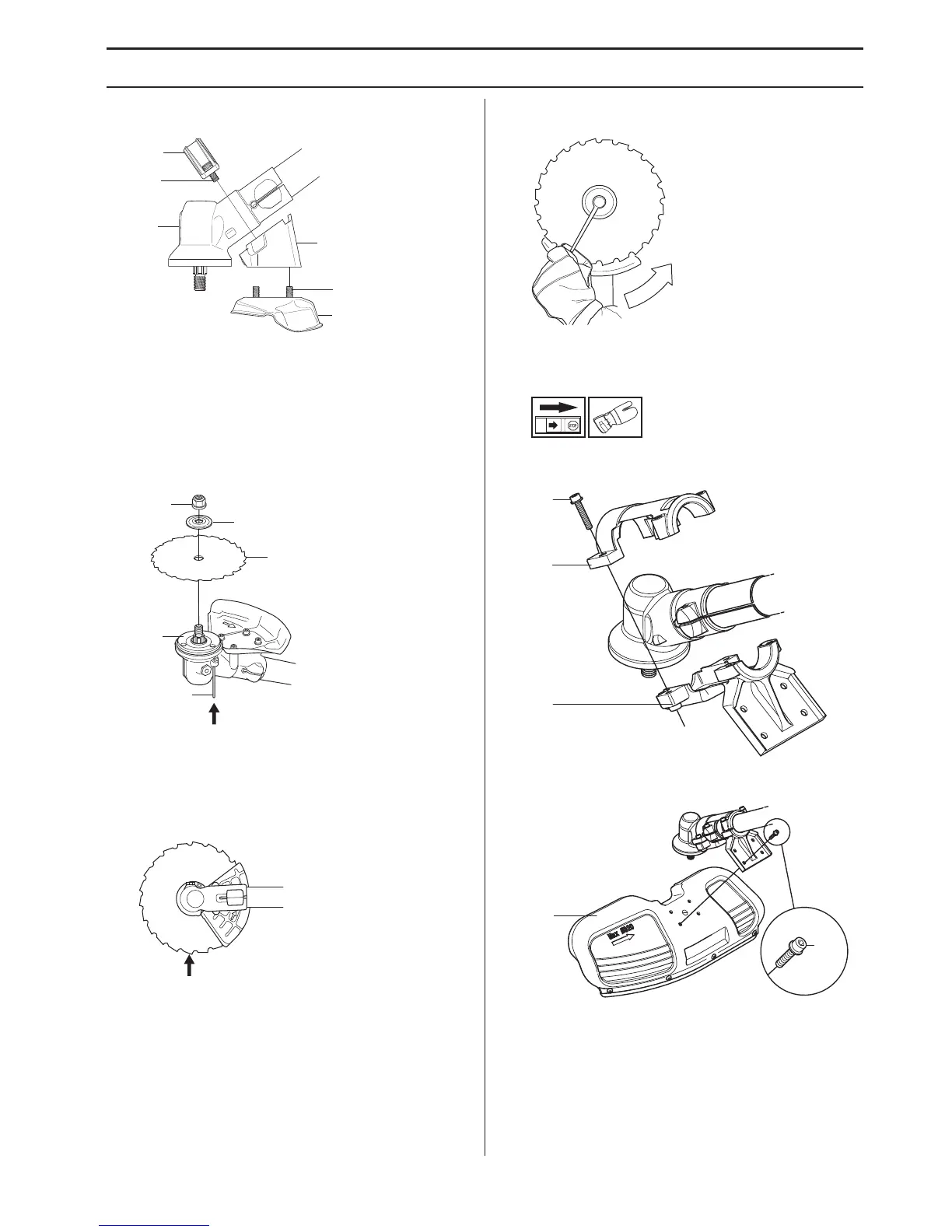

ASSEMBLY
English – 17
• Then fasten the blade guard (A) with 4 bolts (L) in the
holder (N).
• Fit the drive disc (B) on the output shaft.
• Turn the output shaft until one of the holes in the drive
disc aligns with the corresponding hole in the gear
housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Place the blade (D) and support flange (F) on the
output shaft.
• Fit the nut (G). The nut must be tightened to a torque
of 35-50 Nm (3.5-5 kpm). Use the spanner in the tool
kit. Hold the shaft of the spanner as close to the blade
guard as possible. To tighten the nut, turn the spanner
in the opposite direction to the direction of rotation
(Caution! left-hand thread).
When loosening and tightening the saw blade nut, there
is a risk of injury from the teeth of the saw blade. You
should therefore always ensure that your hand is shielded
by the blade guard when doing this. Always use a socket
spanner with a shaft that is long enough to allow this. The
arrow in the diagram shows the area where you should
operate the socket spanner when loosening or tightening
the nut.
Fitting the shredder blade and the
shredder blade guard (555FRM)
• Fit the holder (K) and bracket (J) with 4 bolts (H) on
the gear housing.
• Then fasten the shredder blade guard (A) with 4 bolts
in the holder as shown.
H
J
K
L
R
A
F
G
D
B
C
J
K
H
A
x 4
