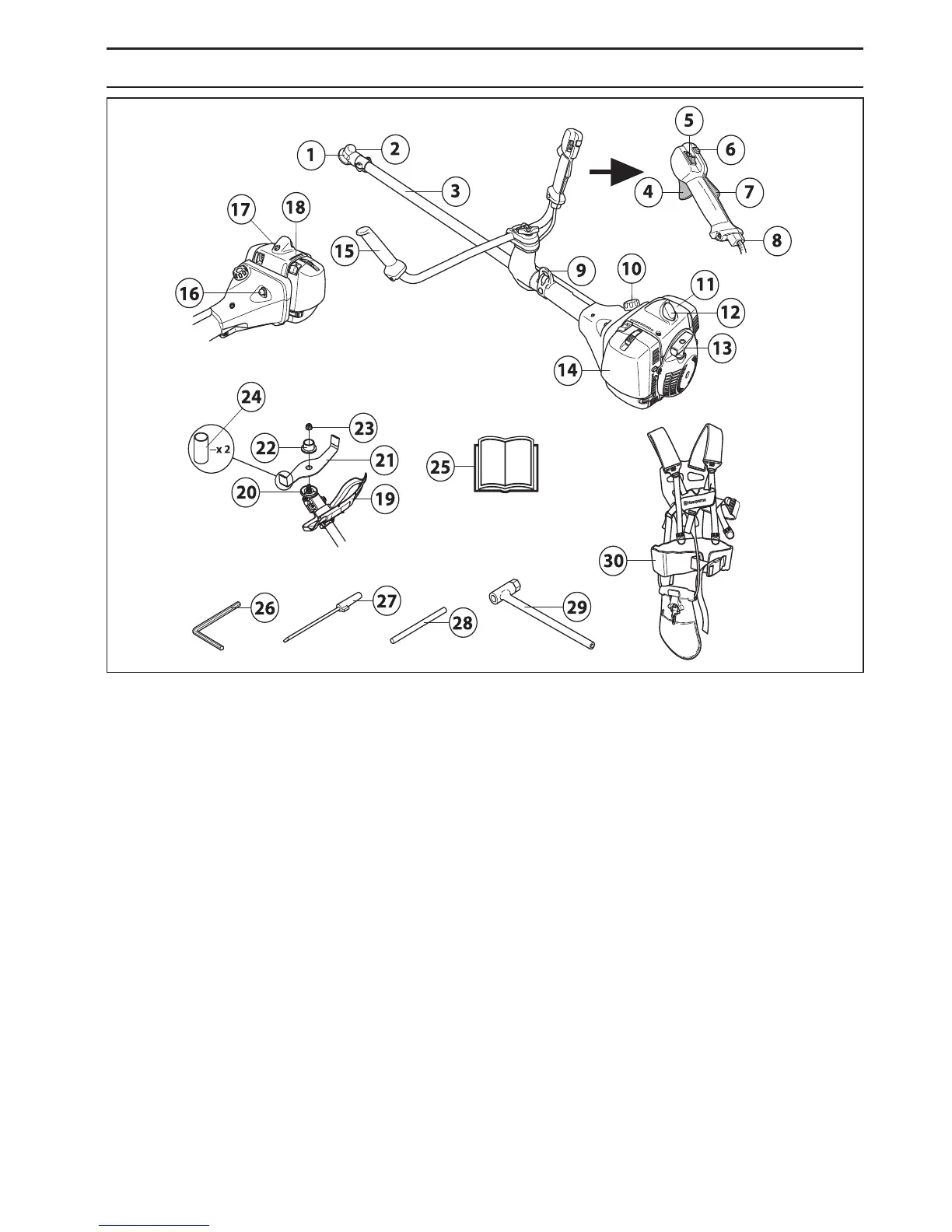

What is what on the brush cutter? (555FRM)
1
Bevel gear
2 Grease filler cap, bevel gear
3 Shaft
4 Throttle trigger
5 Stop switch
6 Start throttle button
7 Throttle trigger lockout
8 Adjusting the throttle wire
9 Support eyes for harness
10 Fuel tank
11 Cylinder cover
12 Spark plug cap and spark plug
13 Starter handle
14 Air filter cover
15 Handlebar
16 Air purge
17 Decompression valve
18 Choke control
19 Cutting attachment guard
20 Drive disc
21 Shredder blade
22 Support flange
23 Locking nut
24 Transport guard
25 Operator
′
s manual
26 Allen key
27 Carburettor screwdriver
28 Locking pin
29 Socket spanner
30 Harness
