INSTALLATION
4. Check that all parts for the installation are included.
Numbers in parentheses refer to the contents
image, see 2.1 What’s What? on page 11.
• Robotic lawnmowers
• Charging station (13)
• Search wire for boundary wire and
guide wire (32)
• Power supply (23)
• Low voltage cable (26)
• Pegs (33)
• Connectors for the search wire (34)
• Screws for the charging station (28)
• Measurement gage (30)
• Couplers for search wire (31)
• Cable markers (29)

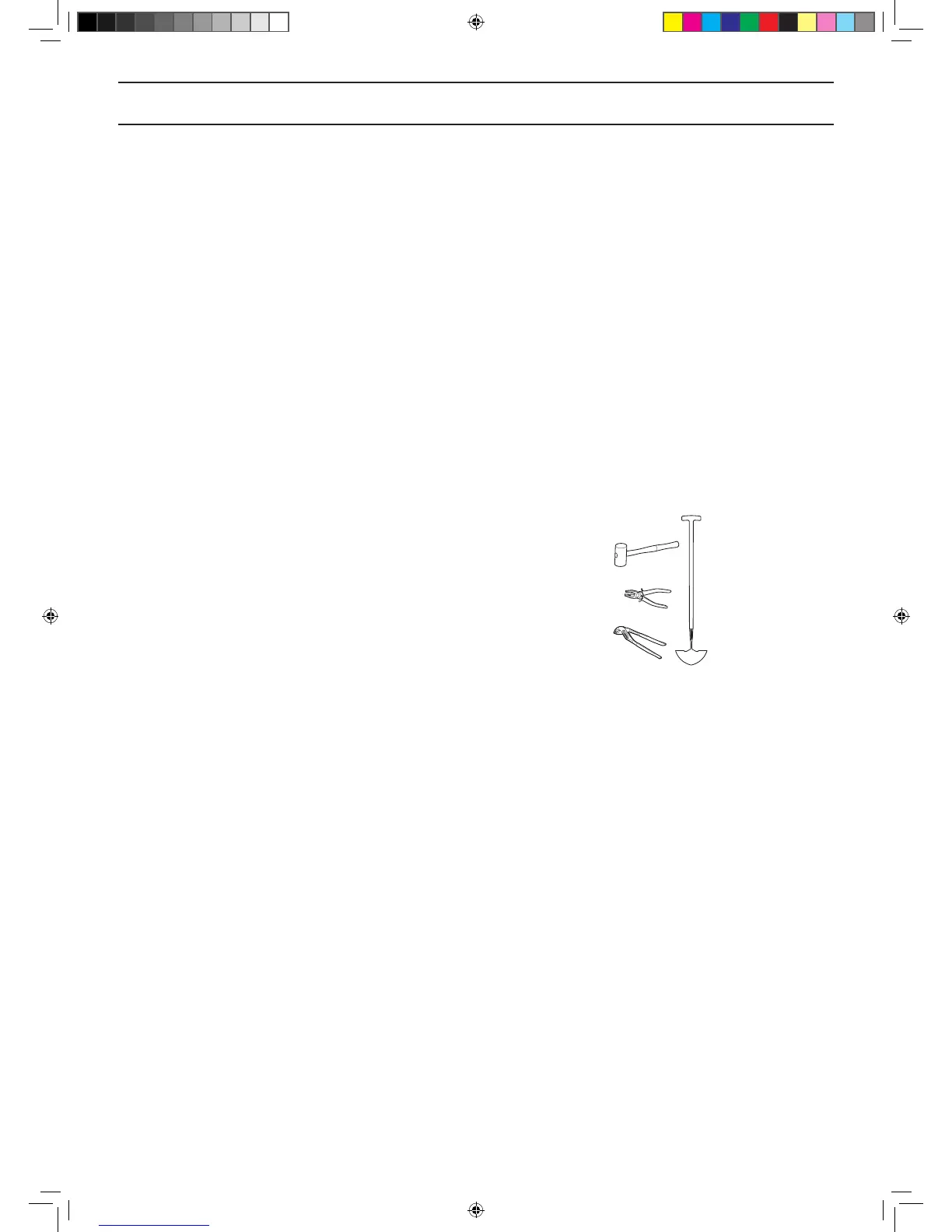

During installation you will also need:
• Hammer/plastic mallet to simplify putting the pegs
in the ground)
• Combination pliers for cutting the boundary wire
and pressing the connectors together.
• Universal pliers (for pressing couplers to each
other).
• Edge cutter/straight spade (if the boundary wire
must be buried).
3.2 Installation of Charging Station
Ideal position for charging station
Take the following aspects into consideration when
identifying the best location for the charging station:
• Allow for at least 3 meters of free space in front of
the charging station
• Close to a wall socket. The supplied low voltage
cable is 10 meters long.
• A level surface to place the charging station on
• Protection from water spray for instance from
sprinklers
• Protection from direct sunlight
• Possible requirement to keep the charging station
out of sight for outsiders
