English – 31
Maintenance

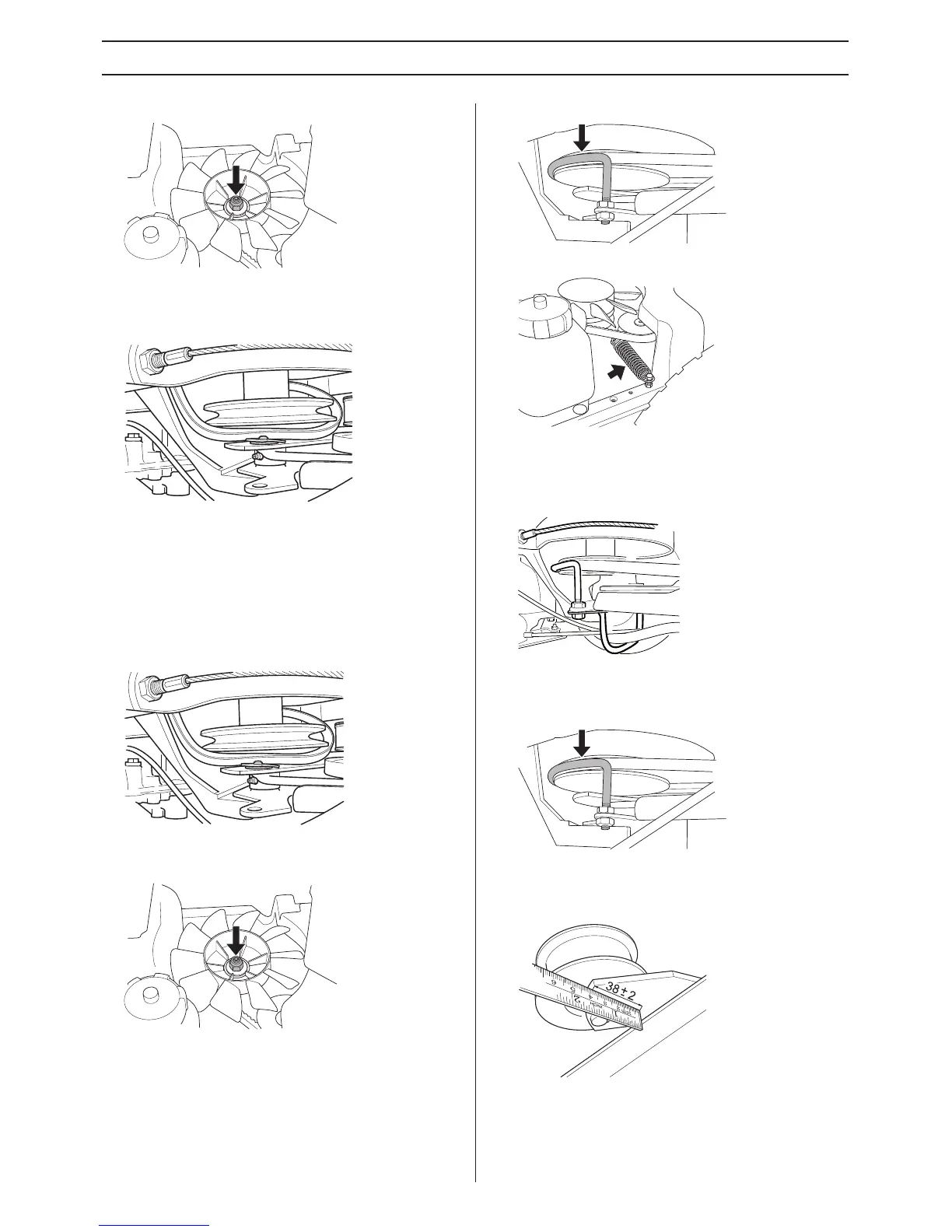

5 Remove the cooling fan, it is held in place by a nut.
6 Pull the belt off of the pump's pulley.
7 Pull the belt off of the engine's pulley and move it under
the engine belt pulleys.
8 Pull out the belt through the opening under the pivot
bearing and past the belt tensioner's disc.
Assembly
1 Pull the belt through the opening under the pivot bearing
and on the outside past the belt tensioner's disc.
2 Pull the belt under the engine belt pulleys and fit it on the
engine belt pulley.
3 Fit the belt on the pump's pulley.
4 Fit the cooling fan.
5 Check that the centre belt is fitted correctly on its front
pulley and fit the centre belt on the engine's pulley.
6 Fit the belt guide for the centre belt.
7 Fit the spring on the belt tensioner.
Replacing the centre belt
Remove the hose holder in the middle (PR 17 and PF 21) and
the rear belt guide for the centre belt (all machine types).
Remove the centre belt and mount a new belt.
Fit and adjust the belt guide with the lower belt on the engine
belt pulley.
Fit the hose holder on PR 17 and PF 21
Check and adjust the belt tensioner. This is especially
important when fitting a new belt.
