TRACTOR - - MODEL NUMBER YTH2242T (279180)

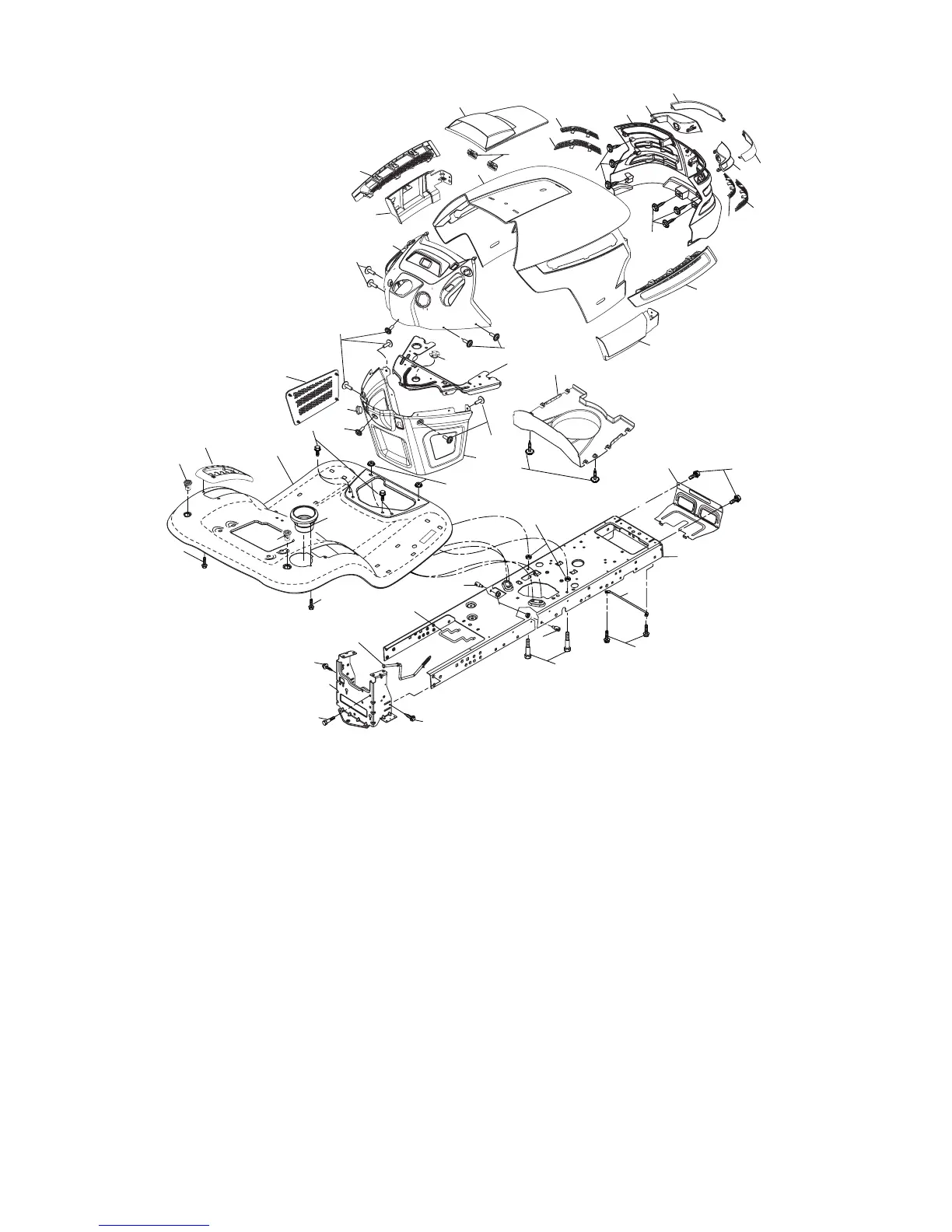

CHASSIS
37
181
181
194
36
184
183
152
159
2
180
162
196
229
230
68
222
chassis-tex_33-lt husq
217
138
99
229
165
14
214
130
130
182
176
176
176
175
178
150
202
203
204
210
208
18
15
25
207
211
209
212
130
5
177
176
176
205
206
195
219
194
219
2 532 19 42-63 Drawbar
5 532 40 18-23 Dash
14 532 40 18-24 Hood
15 532 19 89-07 Lens LH
18 532 40 02-97 Grille/Lens Asm.
25 532 19 89-06 Lens RH
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 40 47-94 Fender
68 817 49 05-08 Screw Thdrol 5/16-18 x 1/2
99 532 40 15-30 Rod Asm Bypass
130 532 19 16-11 Screw 10 x 3/4 Single Lead-Hex
138 532 40 29-54 Cupholder
150 532 19 85-13 Air Duct
152 532 19 43-29 Shield Browning
159 817 00 06-12 Screw 3/8-16 x 3/4
162 532 14 24-32 Screw
165 532 40 03-15 Support Tank Rear
175 532 19 63-04 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8
177 532 19 52-27 Bushing Steering
178 532 19 97-82 Cargo Net Asm.
180 532 19 42-60 Chassis
181 532 40 47-96 Bushing Mtg. Fender Crgo
182 532 19 47-87 Dash Lower
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
183 874 78 05-20 Bolt Fin Hex 5/16-18 unc x 1-1/4
184 532 19 57-80 Spacer Fender
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
195 532 40 41-37 Plug Hole Dash Lower
196 532 40 28-43 Console Asm. Deck Lift
202 532 40 30-48 Vent Side Hood RH
203 532 40 30-76 Vent Side Hood LH
204 532 19 89-04 Vent Top Hood
205 532 40 17-09 Skirt Hood Side RH
206 532 40 17-11 Skirt Hood Side LH
207 532 19 71-98 Bezel RH
208 532 19 71-99 Bezel LH
209 532 19 91-30 Insert Hex Top RH
210 532 19 91-31 Insert Hex Top Lh
211 532 19 91-32 Insert Hex Bottom RH
212 532 19 91-33 Insert Hex Bottom LH
214 532 19 91-45 Clip Retainer Tinner
217 532 15 65-24 Rod Pivot
219 532 19 51-61 Stud Fastner
222 532 13 77-29 Screw Thdrol 1/4-20 x 5/8
229 817 00 06-16 Screw Hexwsh Thdr 3/8-16 x 3/4
230 532 17 01-65 Bolt Shoulder 5/16-18
