37
TRACTOR - - MODEL NUMBER YTH2242T (279180)

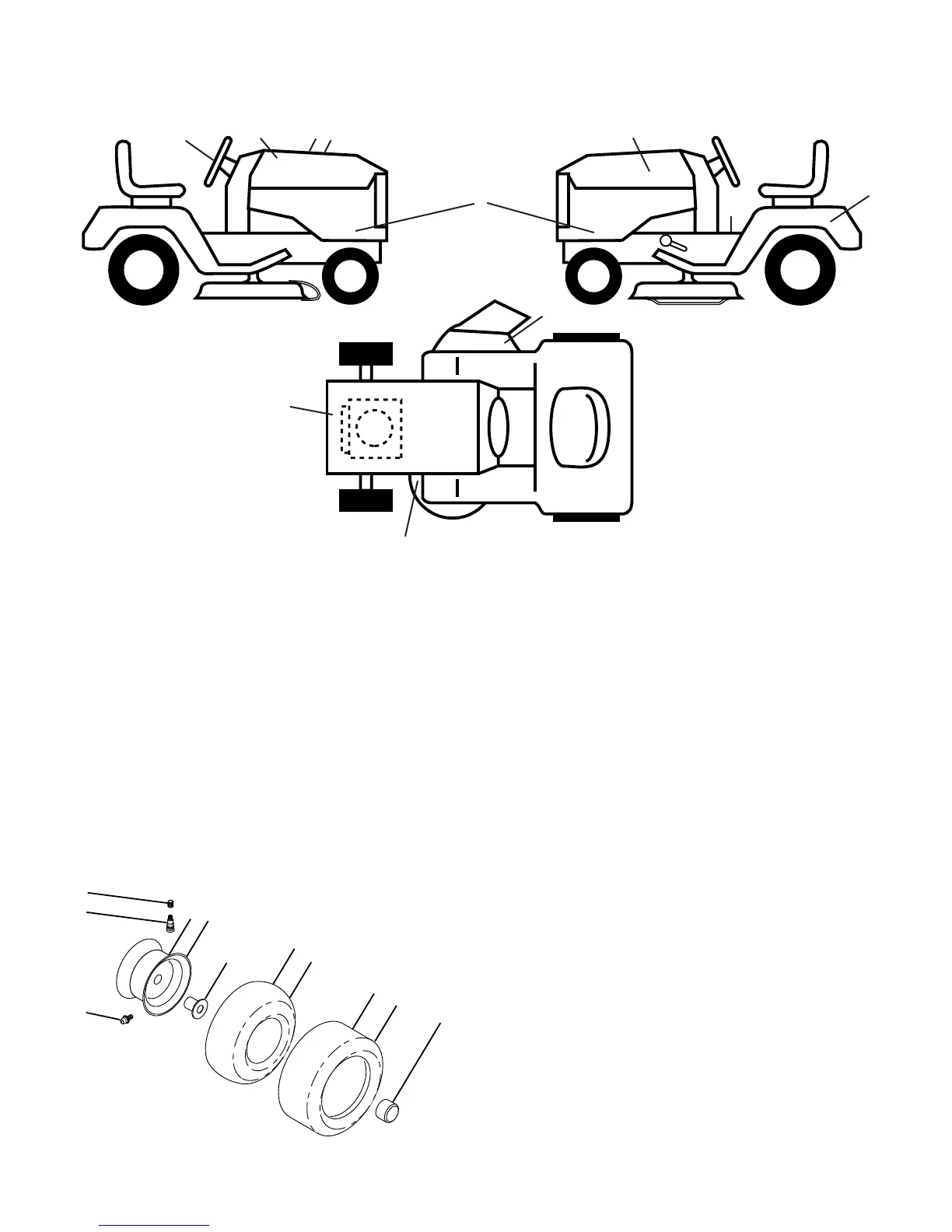

DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
4
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Asm 6" front Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire F T 15 x 6 0 - 6 Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel nly)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 13 84-68 Tire R T 18 x 9.5-8 Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm 8" rear Service
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
11
9
1 532 40 21-04 Decal, Operators
2 532 40 28-32 Decal, Hood
3 532 40 35-27 Decal, Hood Panel SD
4 532 40 21-28 Decal, Hood Top Insert
5 532 18 09-41 Decal, Customer Respons.
6 532 40 35-70 Decal, Replacement
7 532 40 44-84 Decal, Steering Wheel
8 532 18 94-89 Decal, Eng. HP
9 532 14 50-05 Decal, Battery Dnge/Poi
11 532 17 05-63 Decal, Warning
12 532 16 03-96 Decal, Mower V-Belt Schematic
- - 532 16 69-60 Decal, Bypass
- - 532 40 29-76 Pad, Footrest, LH
- - 532 40 47-99 Pad, Footrest, RH
- - 532 40 40-32 Manual, Owner's (English)
- - 532 40 40-33 Manual, Owner's (French)
12
7
2 5
6
3
2
8
1
