WARNING: Failure to correctly torque the bolt may result in
the loss of the blade which can cause serious injury.
WARNING: Mower blades are sharp and can cut. Wrap the
blade(s) or wear gloves and use extra caution when servicing
them.
Seat adjustment
FasTrak 44/52
The seat can be adjusted forward and rearward by removing the two cap
screws that lock the seat platform in place and pivoting the seat platform up
and forward. Then loosen the four cap screws on the underneath side of the
operator’s platform. Position the seat where you have the best control of
the machine and are the most comfortable and then tighten the cap screws.
Fig. 4-7
FasTrak 36/42
The seat can be adjusted forward and rearward by removing the locknut
that locks the seat platform in place and pivoting the seat platform up and
forward. Then loosen the four cap screws on the underneath side of the
operator’s platform. Position the seat where you have the best control of
the machine and are the most comfortable and then tighten the cap screws.
Fig. 4-7
Control lever adjustment
The control levers can be adjusted for operator comfort. By loosening
the cap screws that attaches the upper control lever to the lower lever (Fig.
4-8), the upper control lever can be pivoted to fit the operator’s personal
preference.
The control levers can also be adjusted up and down. Remove the cap
screws and slide the upper control lever up or down and align the holes in it
with the holes in lower lever. Re-install the cap screws and tighten.
The control levers should be adjusted so that they align with each other
when in the neutral position.

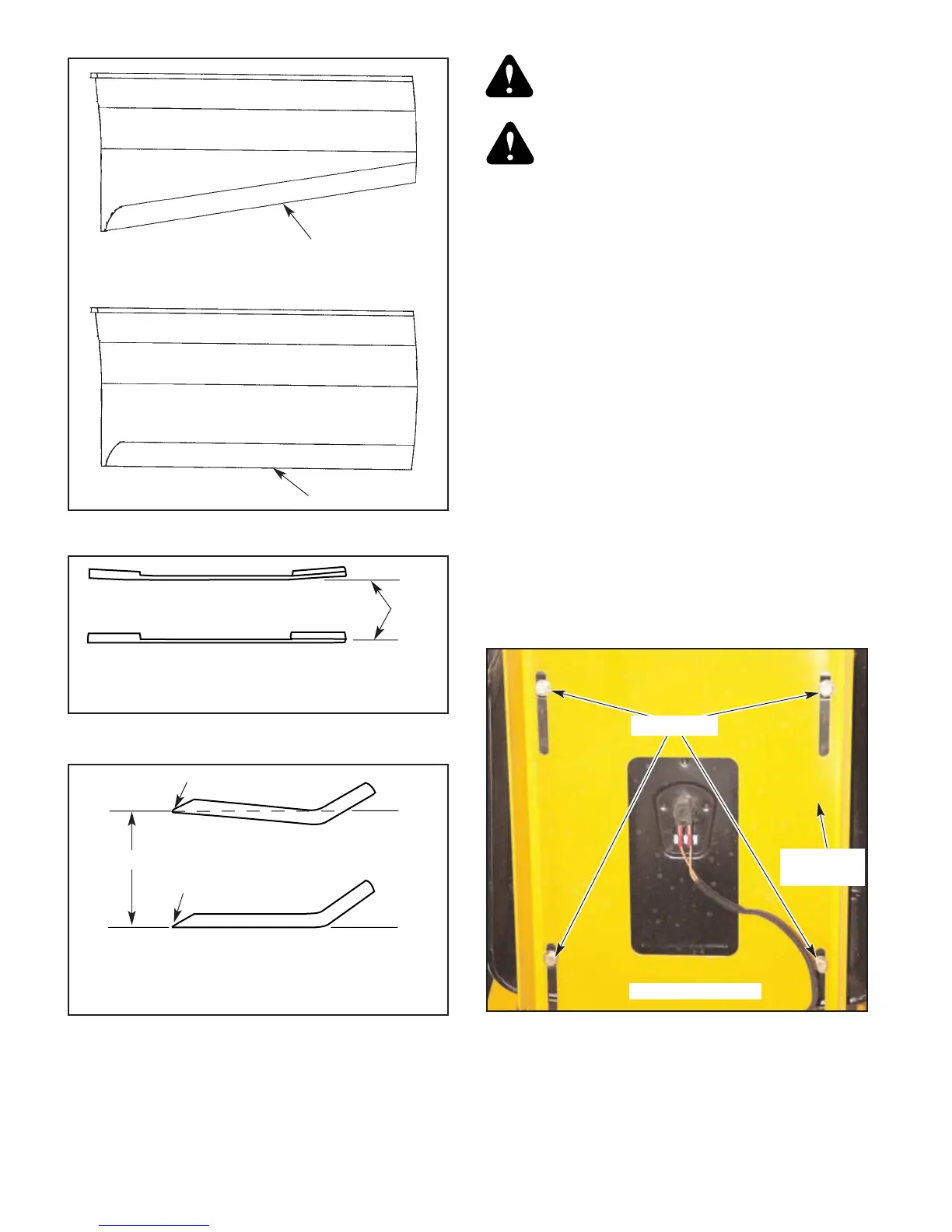

Figure 4-4
Resharpening Pattern
Do not sharpen to original pattern (below).
It is easier to get a straight cutting edge following
the resharpening pattern shown above.
Original Edge
Warped Blade (Replace)
Straight Blade
Comparison of Warped and Straight Blades
Cutting
Plane
Figure 4-5
Figure 4-6
Twisted Blade Edge
(Replace)
Cutting Edge
Straight Blade Edge
End view of blades, comparing
twisted and straighten blades.
Cutting Plane
Cutting Edge
Figure 4-7
Operator’s
platform
Cap screw
FasTrak 36/42 shown
