605596 3-5 REV K
Seat Belt Maintenance
Inspect the seat belt system (all seat, seat belt parts, and
seat platform) daily prior to mowing for signs of any damage.
Replace any parts with signs of:
• cuts,
• fraying,
• extreme or unusual wear,
• significant discoloration due to UV exposure,
• dirt or stiffness,
• abrasion to the seat belt webbing,
• damage to the buckle, latch plate or hardware,
• any other problem.
Use soap and water to clean the seat belt. Do not use
carbon tetrachloride, naphtha, or other chemical cleaning
agents, as these will weaken the webbing. For the same
reason, do not bleach or dye the webbing. Replace the seat
belt if worn or damaged.
Possible Damage to ROPS
If the unit has rolled over or the ROPS has been in some
other type of accident (such as hitting an overhead object
during transport), replace the ROPS to retain the best
protection.
Following an accident, check the ROPS, the operator’s seat,
the seat belt, seat belt mountings and seat platform for
possible damage. Before operating the machine, replace all
damaged parts.
IMPORTANT: Do not attempt to weld or straighten the
ROPS.
ROPS Inspection
Inspect the ROPS after the first 20 hours of operation.
Following the initial inspection, check the ROPS after every
500 hours of operation or every six months, whichever comes
first.
1. Check the torque of the ROPS mounting bolts. Tighten
the bolts to the correct torques as shown below if
necessary. Figure 3-9
2. Inspect the operator’s seat and the mounting parts for
the seat belt. Tighten the bolts to the correct torque as
shown below if necessary and replace parts that show
wear or damage.
3. Check the seat platform to make sure it is secured
properly. Adjust or repair it as necessary.
Torque values:
ft-lbs N•m
ROPS mounting bolts . . . . . . . . . . . . .73 . . . . . . . . .99
Seat belt mounting hardware. . . . . . .48 . . . . . . . . .65
Mower Operation
This mower features the SmoothTrak™ steering system.
The following provides you with detailed information on how
to operate the mower efficiently.
Driving the Mower
After starting the engine, engage the steering control
levers and steer as follows:
To go forward, push the steering control levers forward an
equal distance.
Figure 3-10
To go in reverse, pull the steering control levers rearward
an equal distance.
Figure 3-10
To turn left, move the right steering control lever farther
forward from neutral than the left steering control lever.
The ROPS structure’s protective capability may be
impaired by structural damage, overturn or
alteration. Do not remove or alter any of the ROPS
parts. Do not attempt to weld or straighten ROPS.
Failure to adhere to these instructions could result
in severe injury or death.
If the ROPS is replaced, make sure to use the
proper hardware and apply the recommended
torque values to the attaching bolts.
WARNING
Never operate the mower with the seat platform
improperly secured. The seat platform must be
properly secured to prevent the seat from moving/
tilting in the event of the mower tipping or rollover.

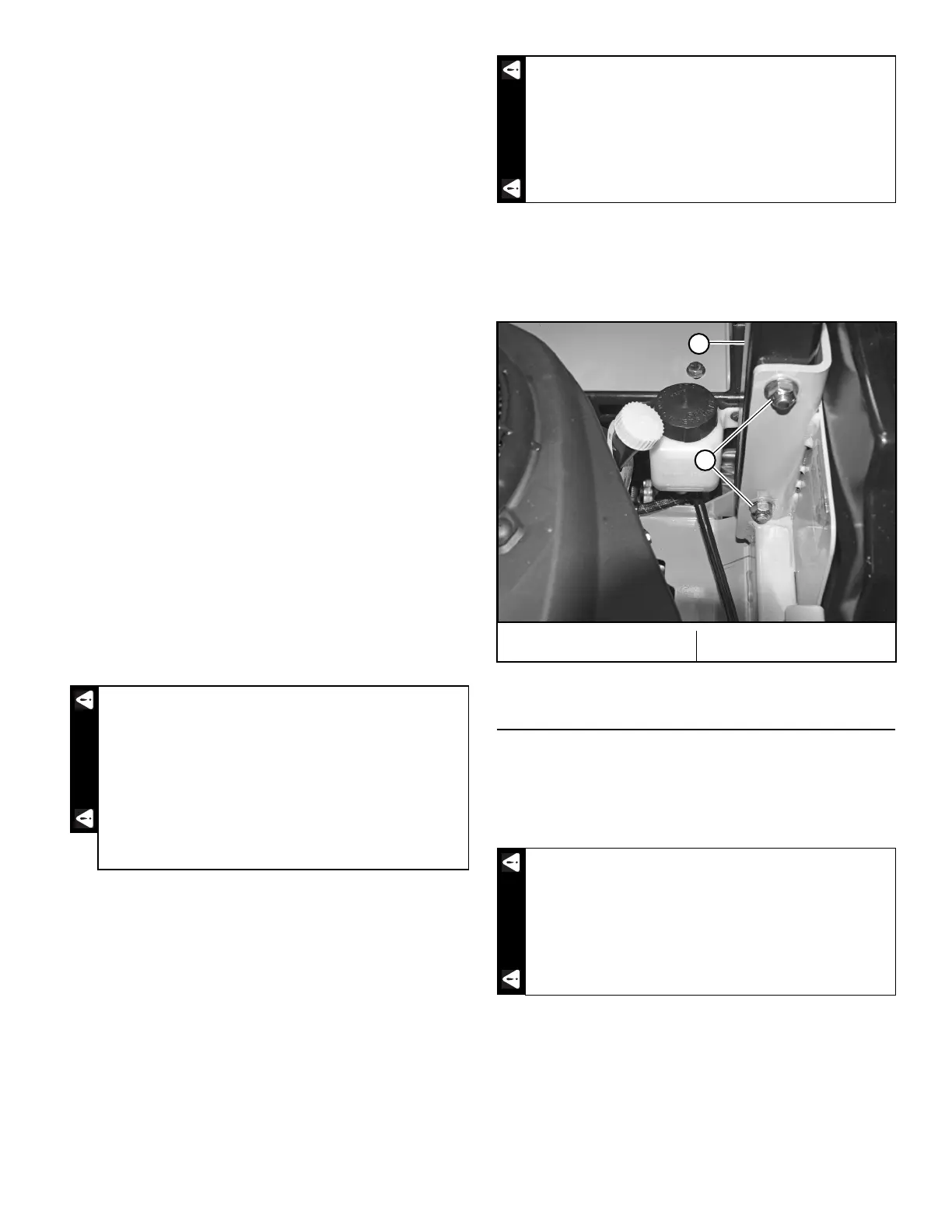

A. ROPS mounting bolts B. ROPS post
Figure 3-9
Never make sudden stops or reverse direction,
especially when maneuvering on a slope. The
steering is designed for sensitive response. Rapid
movement of the control levers in either direction
could result in a reaction of the mower that can
cause serious injury.
WARNING
A
B
DANGER
