disengage the deck clutch, and rotate key counter-
clockwise to the OFF position. Remove the key from
switch before leaving the machine.
Stopping the traction drive system
Use the following procedure to shut off the traction drive
system after operating the equipment.
1. Place the steering control levers in the park brake
position.
2. Disengage the deck clutch.
3. Rotate key counter-clockwise to the OFF position.
Remove the key from switch before leaving the
machine.
Moving mower with non-functioning traction
drive system
WARNING: Always disconnect batteries when trans-
porting unit.
If it becomes necessary to move the machine when the
traction drive system is inoperative, contact local Hustler
®
dealer.
Do not tow the machine. Move it by hand or use a winch to
load on a trailer for transporting.
When transporting on another vehicle, the mower must be
secured.
ROPS
(Roll Over Protective Structure)
A Roll Over Protective Structure (ROPS) and seat belt are
provided with the equipment. Fig. 3-5 Do not remove the ROPS
or seat belt. ROPS when used with seat belt is effective in
reducing injuries during unit overturn accidents. Overturning
the unit without ROPS can result in serious injury or death.
NOTE: Inspect the ROPS after the first 20 hours of opera-
tion. Following the initial inspection, check the ROPS after
every 500 hours of operation or every six months, whichever
comes first.
1. Check the torque of the ROPS mounting bolts. Tighten
the bolts to the correct torques as shown below if
necessary. Fig. 3-6
2. Inspect the operator’s seat and the mounting parts for the
seat belt. Tighten the bolts to the correct torque as shown
below if necessary and replace parts that show wear or
damage.
Torque values are given below:
Ft-lbs. Nm
Hustler
®
Zeon ROPS mounting bolts . . . 85. . . . .115
Seat belt mounting hardware . . . . . . . . . . 48. . . . . 65
The two-post ROPS can be pivoted down by removing the
right and left retaining rings and pulling out on the clevis pins so
that the machine can operate under low hanging tree limbs or
other obstructions. Do not wear the seat belt when the ROPS is
in the lowered position. Use the ROPS in the “folded”
position only when it is absolutely necessary.
WARNING: Make sure seat pan is securely bolted
down prior to each use to prevent seat from moving/
tilting in the event of mower tipping or rollover.

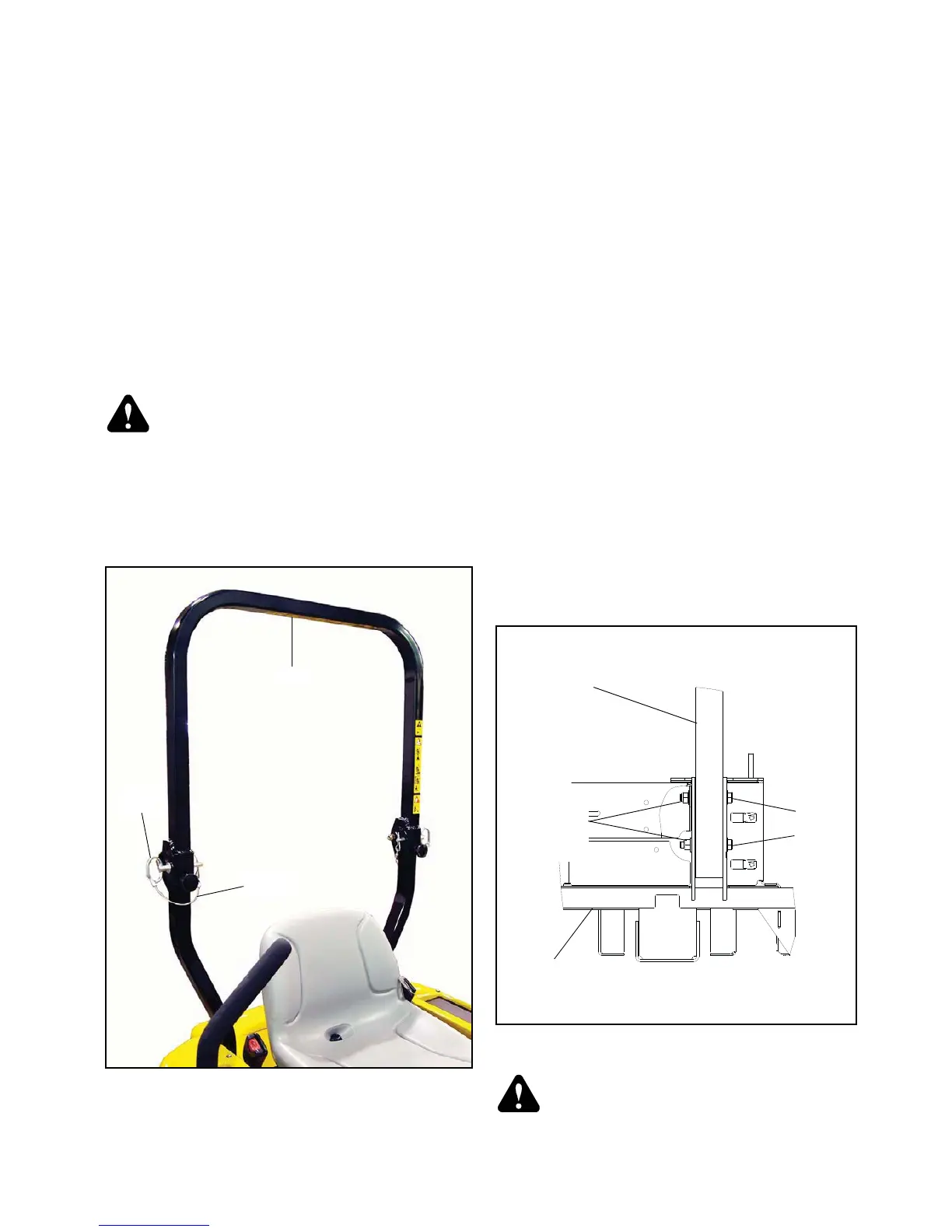

Fig. 3-5
Retaining
ring
ROPS
Clevis
pin
Fig. 3-6
