are out of the grass and engage the deck clutch switch (Fig. 3-2).
Deck cutting height adjustment
Deck height is adjustable from 1”- 3-1/2” (3.81 cm - 8.89 cm)
in 1/4” (.64 cm) increments. The deck can also be adjusted to a
4” or 4/12” (10.16 cm or 11.43 cm) cutting height.
Step on the deck lift pedal and latch the transport lever in the
deck transport position. Pull the adjusting pin out of the hole
that it is in and insert it into the desired cutting height hole. Step
on the deck lift pedal to release the transport lever. Fig. 3-10
Step on the deck lift pedal and raise the deck to its highest
position and latch the transport lever in place when transporting
the unit. Fig. 3-10.
Anti-scalp wheels
Anti-scalp wheel kits are standard on Hustler
®
Zeon units.
These anti-scalp wheels are designed to minimize scalping
when mowing on rough uneven terrain.
After setting the cutting height, adjust the anti-scalp wheels so
they extend below the deck but do not contact the ground.
They should always be at least 1/4” to 3/4” (6.35mm to
19.05mm) below the deck. With the unit sitting on a flat level
surface, the wheel position can be adjusted up or down as
needed from 3/4” to 1-3/4” (19.05mm to 44.45mm) below the
blade surface. Move the wheels up or down, in 1/2” (12.70mm)
increments, using the different axle mount holes in the wheel
mount bracket. Fig. 3-11

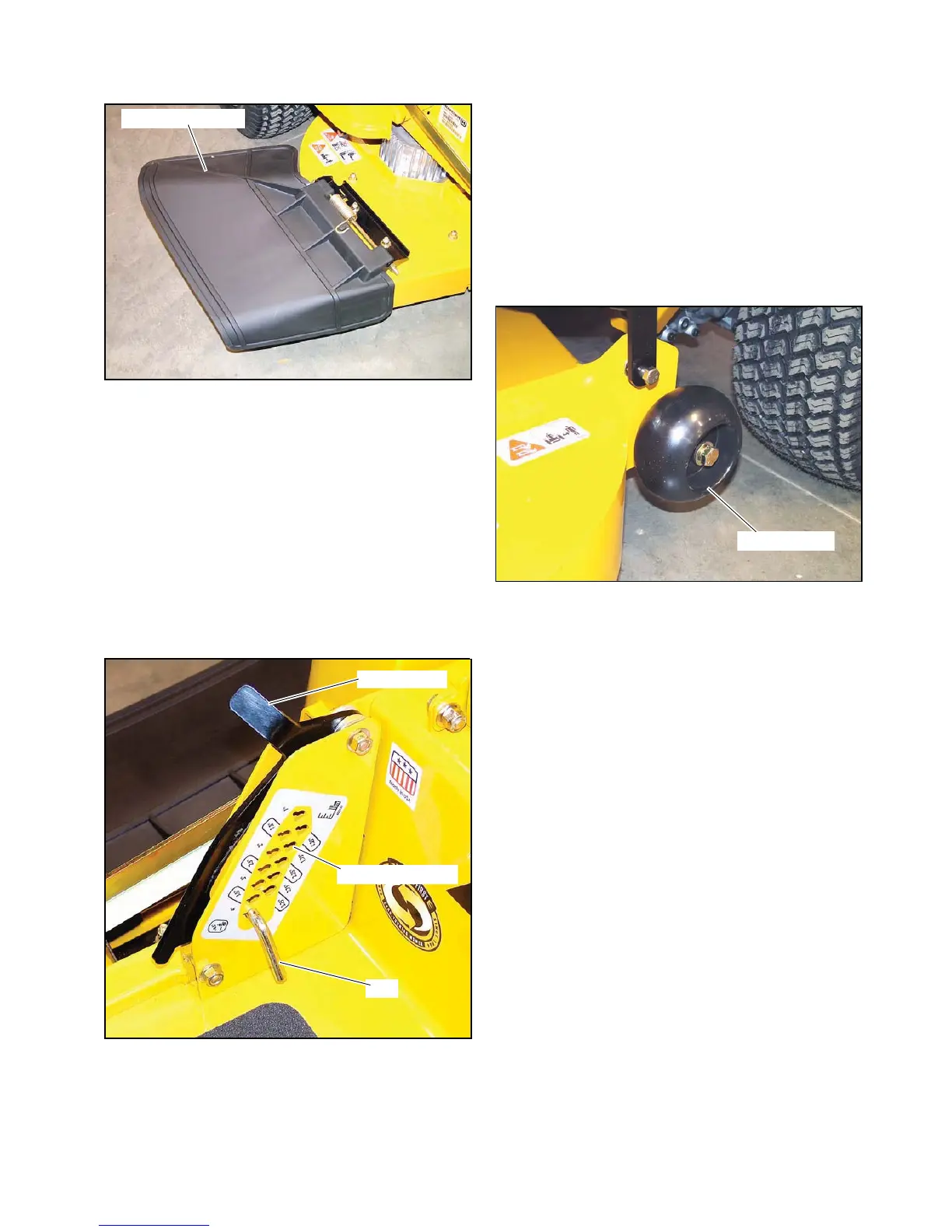

Fig. 3-9
Fig. 3-10
Side discharge chute
