Hypertherm powermax1100 User Manual

O PERATION
4-7
Operator Manual
Retaining Cap
120520 - 40A
Retaining Cap
120483 - 80A
Electrode
120473
Swirl Ring
120474
PAC135T
Torch
Hand Shield
120475

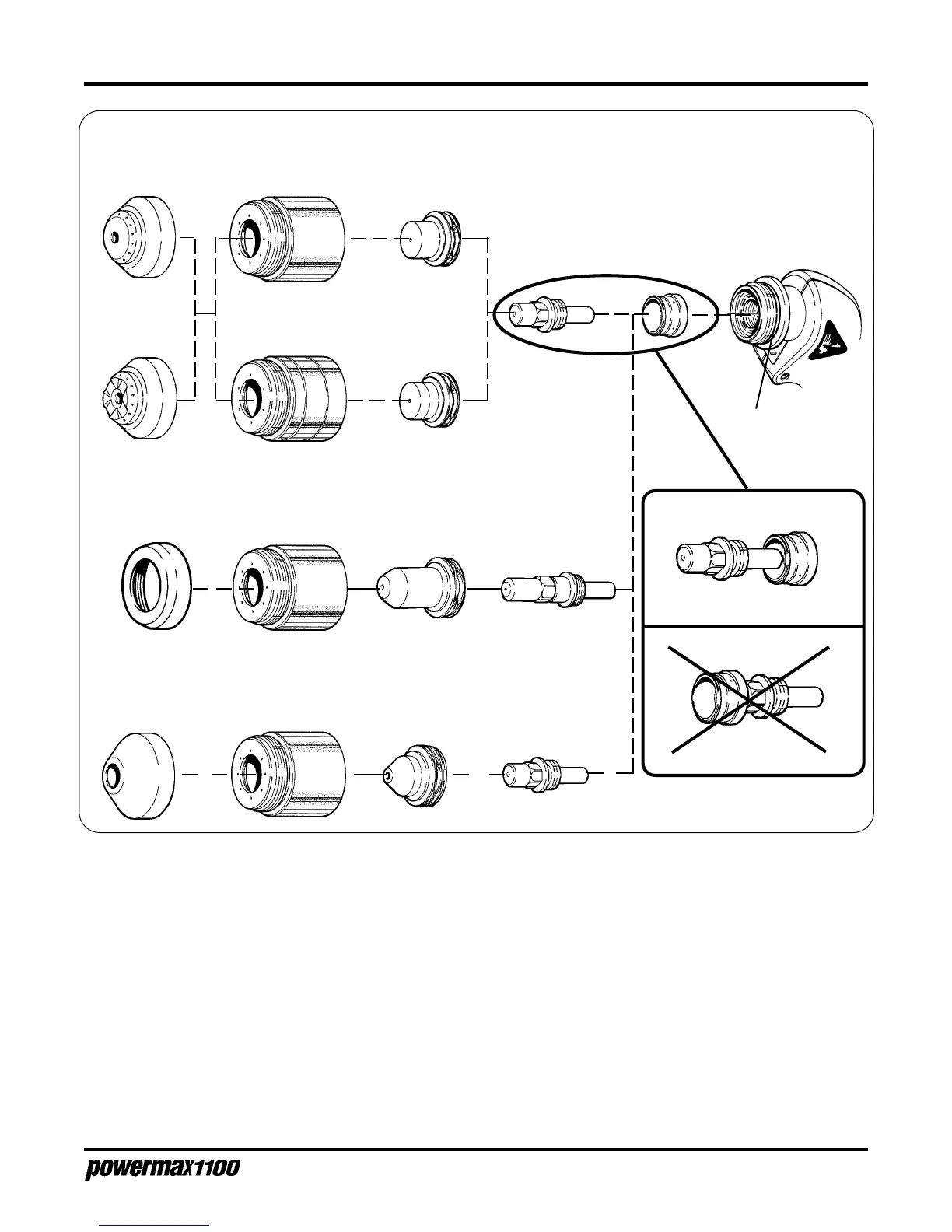

Figure 4-5 Consumables
Nozzle
120515 - 40A
Shield
120510
Nozzle
120509
O-Ring
026020
Nozzle
120476 - 80A
Gouging
Shielded - 80A, 40A
Extended
Deflector
120519
Nozzle
120518
Electrode
120517
Retaining Cap
120483
Retaining Cap
120483
Machine Shield
120516
Electrode
120473
Description of Consumables
• Shielded 80A For cutting above 40A. Shielded nozzle allows the torch tip to be dragged directly on the
workpiece.
• Shielded 40A For optimal cutting on thinner materials at or below 40A.
• Extended For increased visibility and access for special applications. The nozzle is not shielded.
Maintain a standoff distance from the workpiece of approximately 1/8" (3 mm) when
cutting above 40A to avoid accelerated consumable parts wear. Use only with the
machine torch in CE countries.
• Gouging For metal removal without cutting. Use for weld removal or setup. Nozzle shield may be
placed directly on the workpiece.
1-98
