PARTS - POWER SUPPLY

4-6 powermax1650 Service Manual

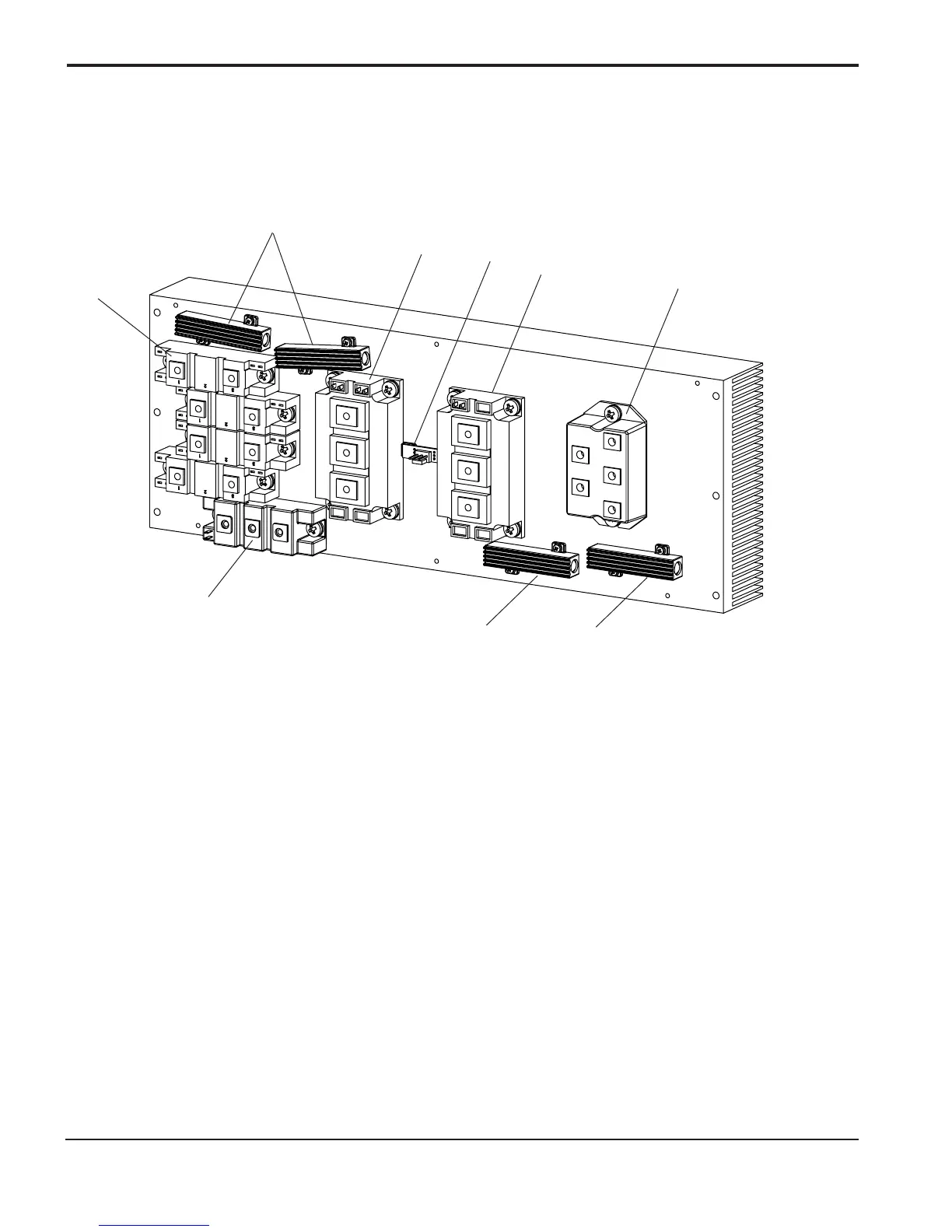

Power Supply – Heat Sink Assembly

Part

Item Number Description Designator Qty.

027662 Thermal grease, 5 oz. DC-340 1

1 128733 Output diode bridge 1

2 128747 Snubber resister assembly 1

3 128743 IGBT, inverter Q13 1

4 128744 Temperature Switch PCB4 1

5 128745 IGBT, PFC Q14 1

6 128746 Input diode bridge D24 1

7 128748 IGBT, pilot arc 1

8 128734 Snubber resister 1

9 129782 Snubber resister 1

Reference page 3-26 for torque specifications.


















