2-2
GROUP 2 REMOVAL AND INSTALLATION OF UNIT
GROUP 2 REMOVAL AND INSTALLATION OF UNIT

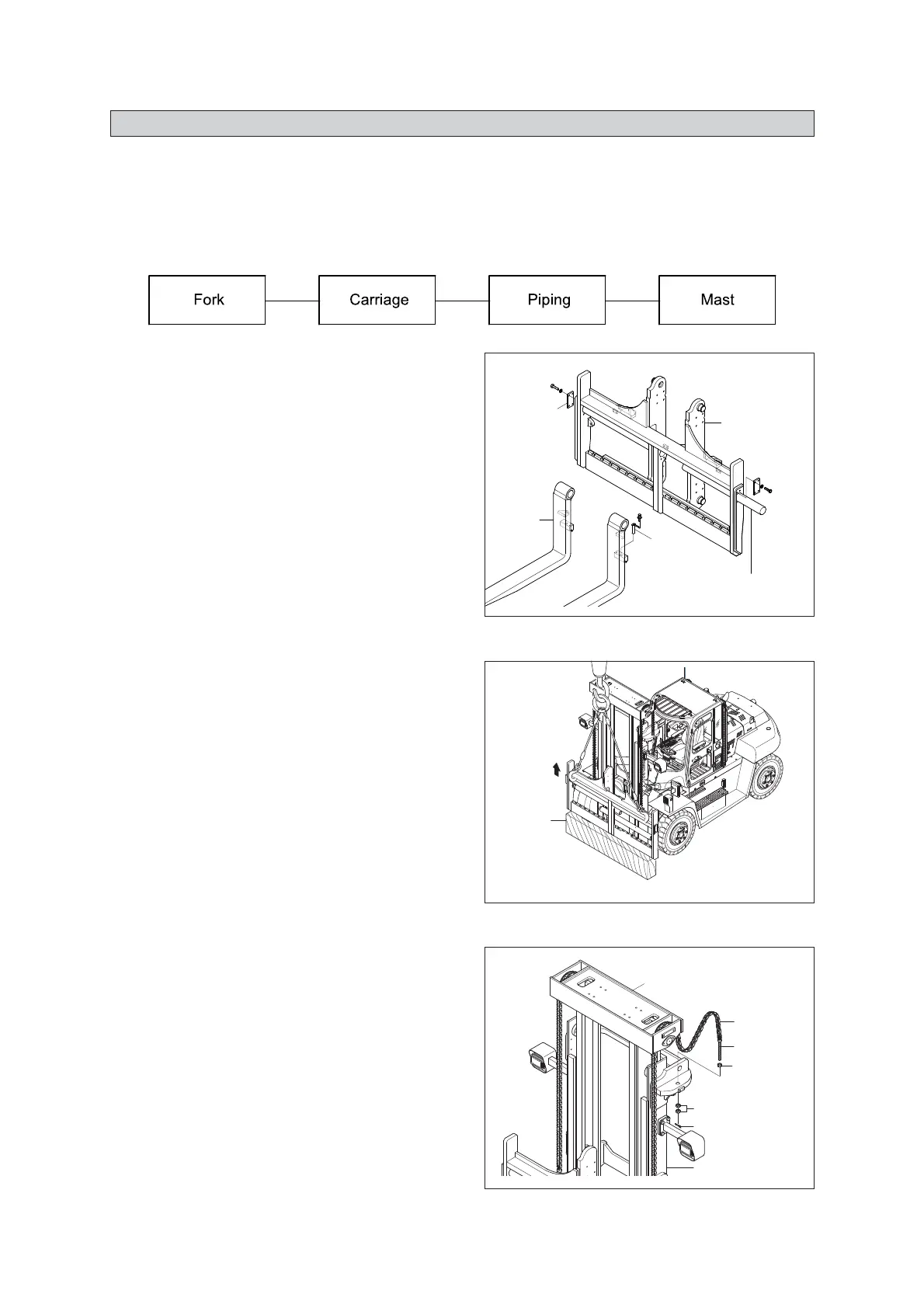

Forks
Lower the fork carriage until the forks are
approximately 25
mm
(1
in
) from the floor.
Release fork retainer and remove cover.
Slide one hanger bar at a time out of
carriage assembly.
Remove only one fork at a time.
On larger forks it may be necessary to
use a block of wood.
1. MAST
REMOVAL
1)
(1)
Remove and install following units as explained in the flow chart.
anger bar
Fork
over
Fork
retainer
arriage
110D7ERE51
①
②
③
※
Carriage
With the mast vertical, raise the carriage
high enough to place blocks under the
load forks. This is done to create slack in
the load chains when the carriage is
lowered. Lower the carriage all the way
down to the floor. Make sure the carriage
is level, this will prevent any binding when
the mast is raised.
(2)
①
110D7ERE53
While supporting lift chains, remove nuts
from the anchor bolt.
②
Inner mast
Outer mast
Lift chain
Nut
Split pin
Nut
Lift chain
Anchor bolt
100D7RE54
To Next Page
