3-1
GROUP 1 STRUCTURE AND OPERATION
GROUP 1 STRUCTURE AND OPERATION
SECTION 3 POWER TRAIN SYSTEM
SECTION 3 POWER TRAIN SYSTEM

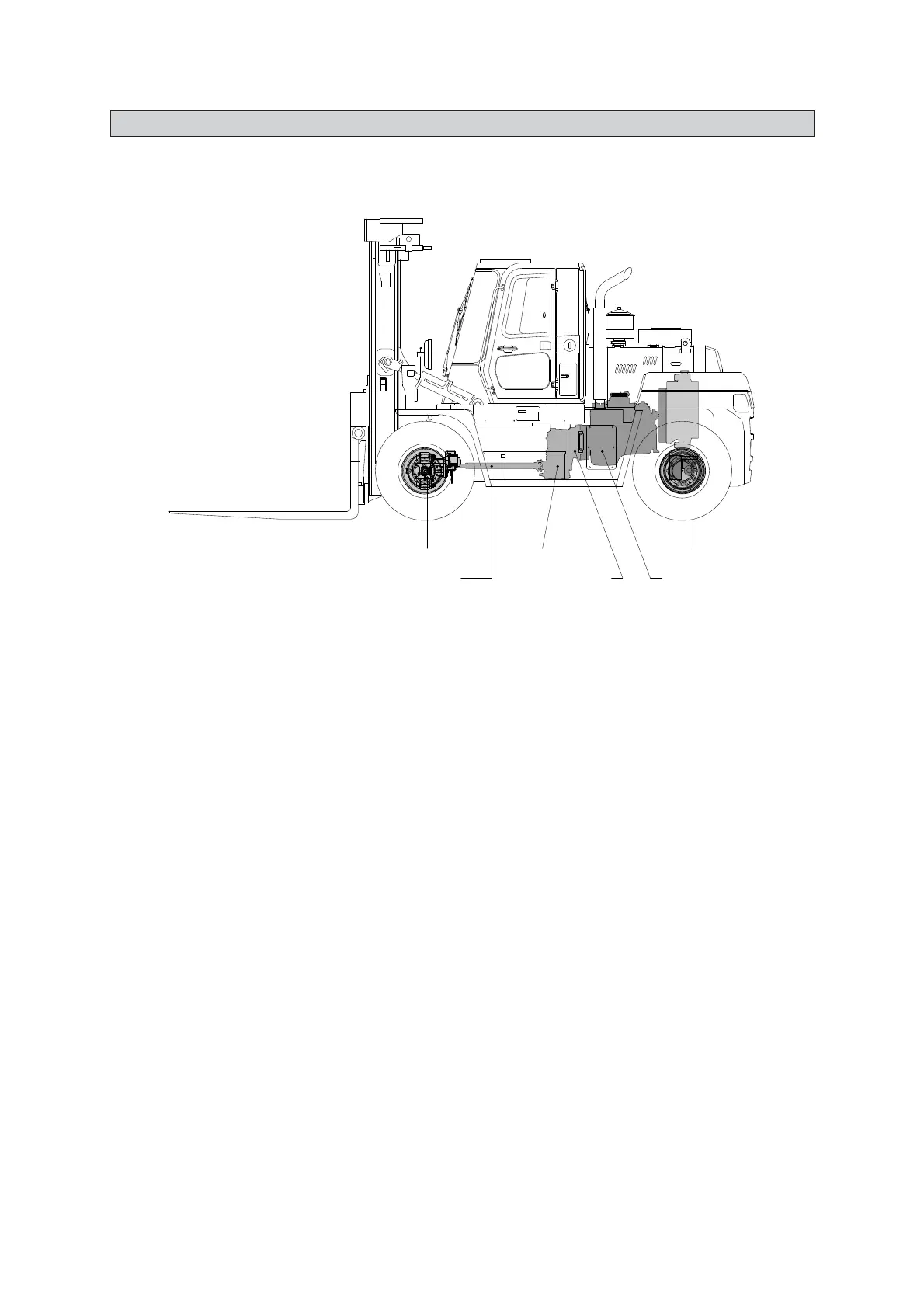

Drive axle
Propeller shaft
Transmission
Torque converter
Steering axle
Engine
160D7APT01
The power train consists of the following components :
· Torque converter
· Transmission
· Propeller shaft
· Drive axle
Engine power is transmitted to the transmission through the torque converter.
The transmission is a hydraulically engaged three speed forward, three speed reverse power shift type
transmission.
The transmission outputs through universal joints to drive axle assembly.
The power transmitted to front axle drives front wheels.
1. POWER TRAIN COMPONENT OVERVIEW
1. POWER TRAIN COMPONENT OVERVIEW
