5. MAJOR COMPONENT LOCATIONS

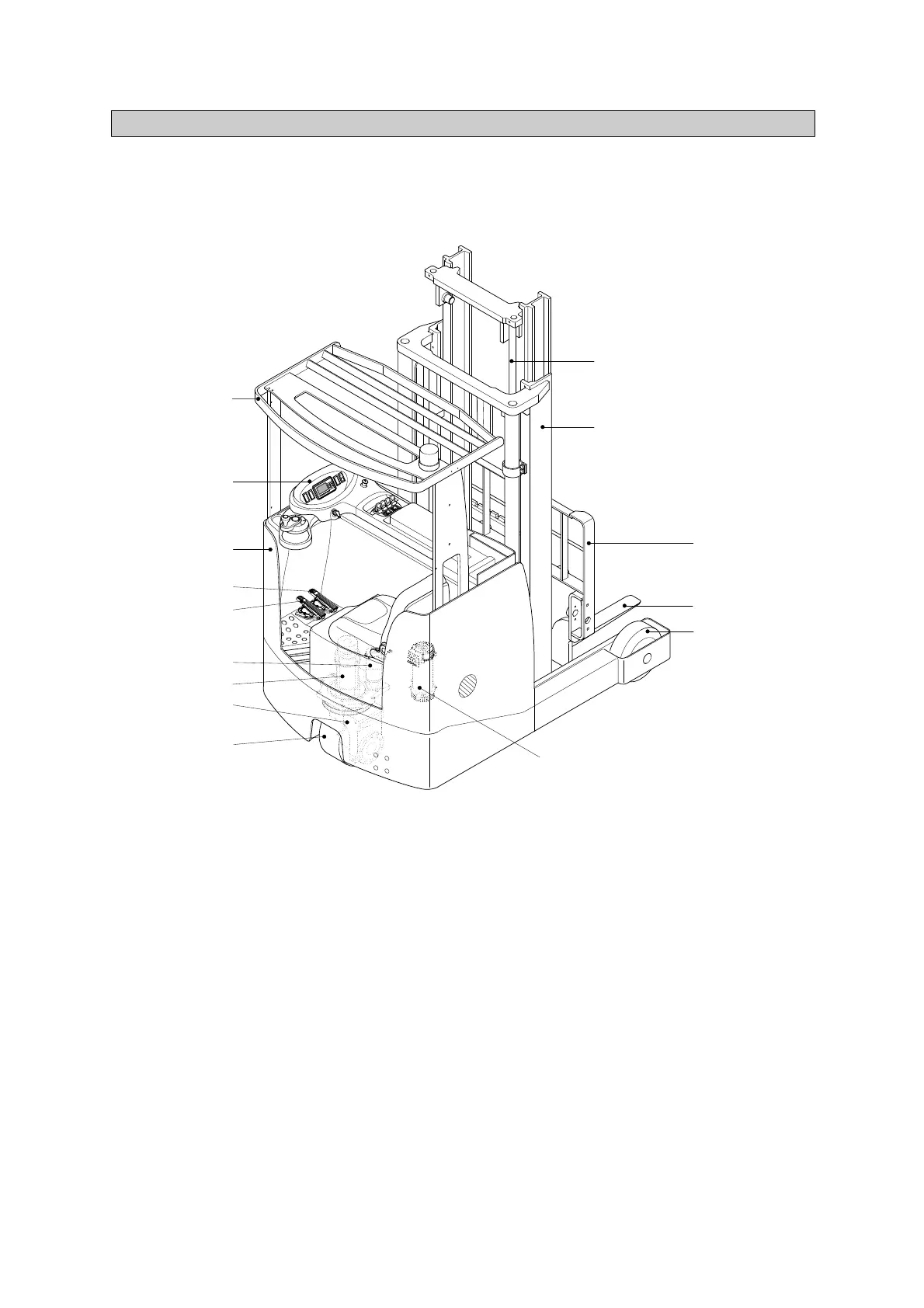

Use the illustration below to locate components included in the PM procedures.
1 Mast
2 Lift cylinder
3 Carriage and backrest
4Forks
5 Drive unit
6 Dash board
7 Frame
8 EPS motor
9 Drive motor
10 Drive wheel
11 Load wheel
12 Brake pedal
13 Accelerator pedal
14 Overhead guard
15 Pump motor
6
7
M
P
13
1
2
3
4
8
9
14
11
10
12
5
15
14BRJ7OM112
