6-26
GROUP 3 DISASSEMBLY AND ASSEMBLY
1. DISASSEMBLY

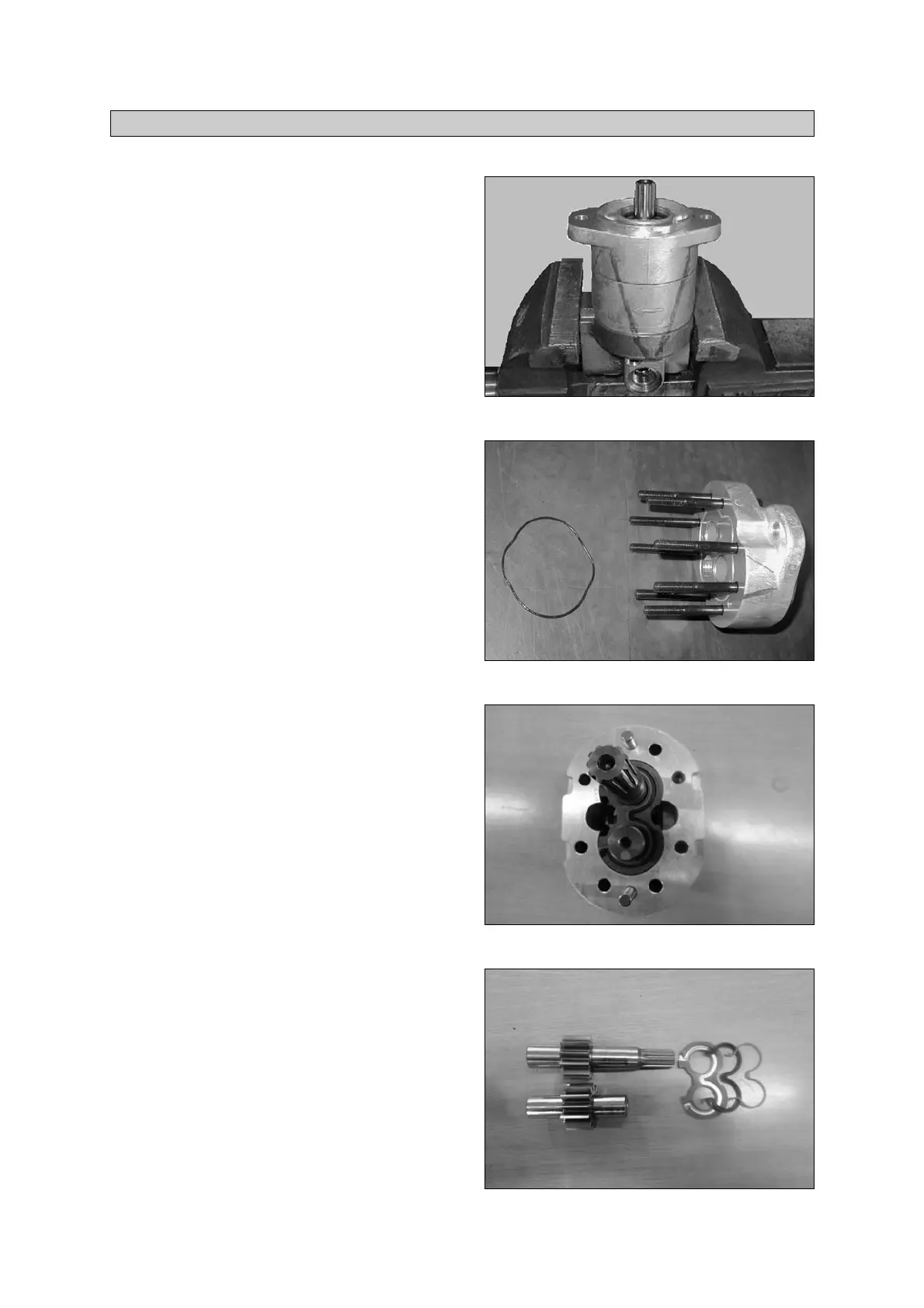

CLAMPING PUMP
Clamping pump in a vice with pump shaft
facing up.
(Do not chuck the aluminum parts such as
body and housing.)
Mark V by permanent marker pen.
This will assure proper reassembly.
(1)
(2)
PUMP101
PUMP102
1)
HOUSING
Loosen 8 bolts and remove housing.
Pry off snap ring for hole and remove oil
seal from housing.
Remove O-ring from housing.
(1)
(2)
(3)
2)
PUMP103
GEAR
Mark at the end of the idle gear by
permanent marker pen before removing
gear set. This will assure proper
reassembly.
(1)
3)
PUMP104
Dissemble gear set and side plate from
body.
Dissemble E-type ring and backup ring
from side plate.
(2)
(3)
To Next Page
