3. INSTRUMENTS AND CONTROLS
DETAIL A
HYUNDAI
H
E
F
0
0
0000
C
LPG
+
-
17
18
19
1
234578910
11
1213
14 15 16
A
20 21 22 24 25 26 27
32
28
3334
23
6
HYUNDAI
H
E
F
0
0
0000
C
+
-
29,30,31
15D7EOM641
Familiarize yourself with the controls and follow safe operating procedures.
15D/18D/20DA-7E 1)

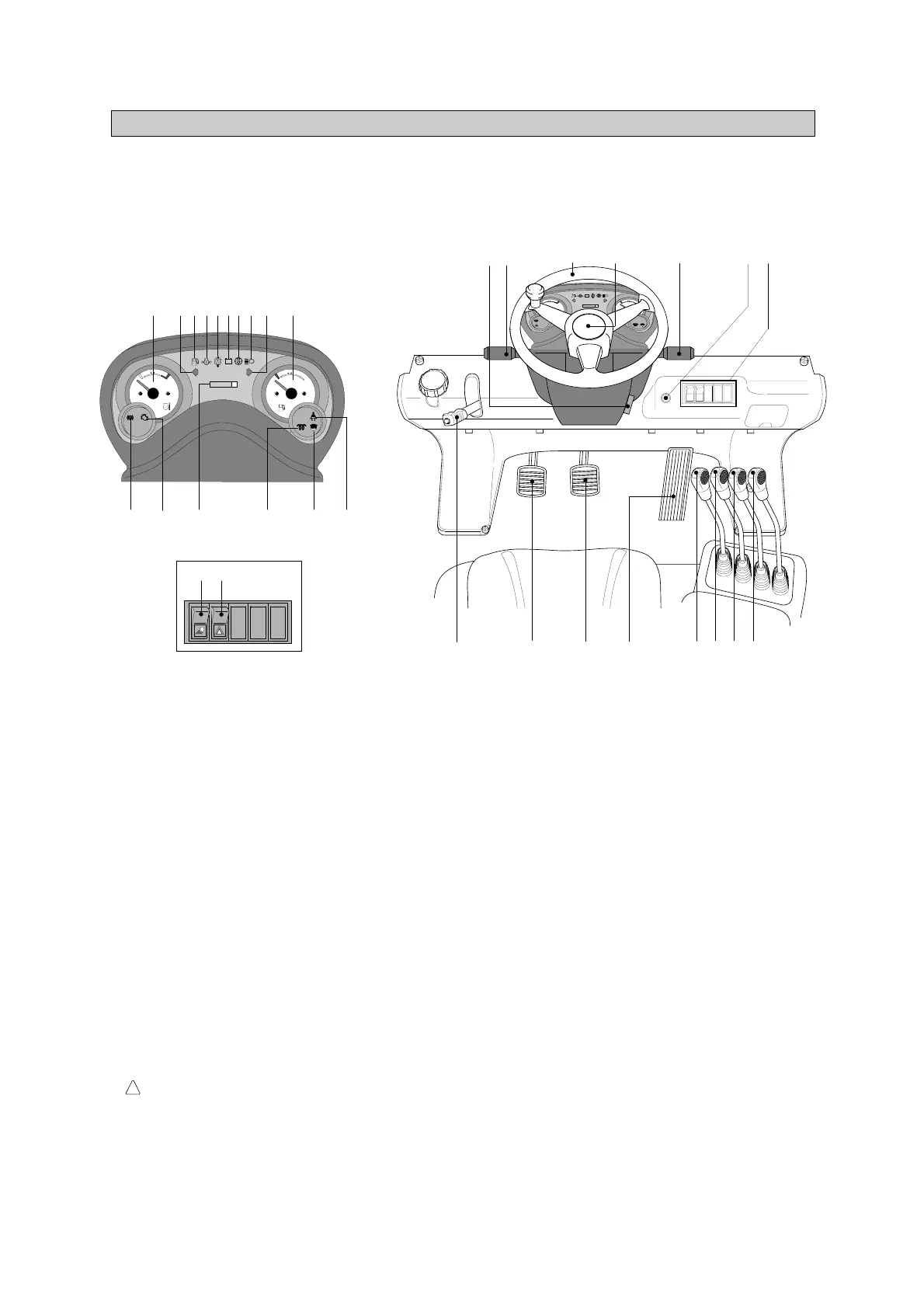

1 Start switch
2 Water temperature gauge
3 Left turn signal lamp
4 Fuel level warning lamp
5 Engine oil pressure warning lamp
6 Battery charge warning lamp
7 T/M oil temp warning lamp
8 Air cleaner element warning lamp
9 Head lamp signal lamp
10 Right turn signal lamp
11 Fuel gauge
12 Engine check lamp
13 Parking brake signal lamp
14 Hour meter
15 Preheater signal lamp
16 Water separator lamp
17 Work lamp switch(opt)
18 Hazard lamp switch(opt)
19 Seat belt warning lamp
20 Parking brake lever
21 Inching pedal
22 Brake pedal
23 Accelerator pedal
24 Lift lever
25 Tilt lever
26 Attach lever 1(opt)
27 Attach lever 2(opt)
28 Horn button
29 Head lamp switch
30 Illumination lamp
31 Turn signal switch
32 Steering wheel
33 Forward-reverse lever
34 Steering column adjust
lever
