Hyundai 35D-7E User Manual

3-14

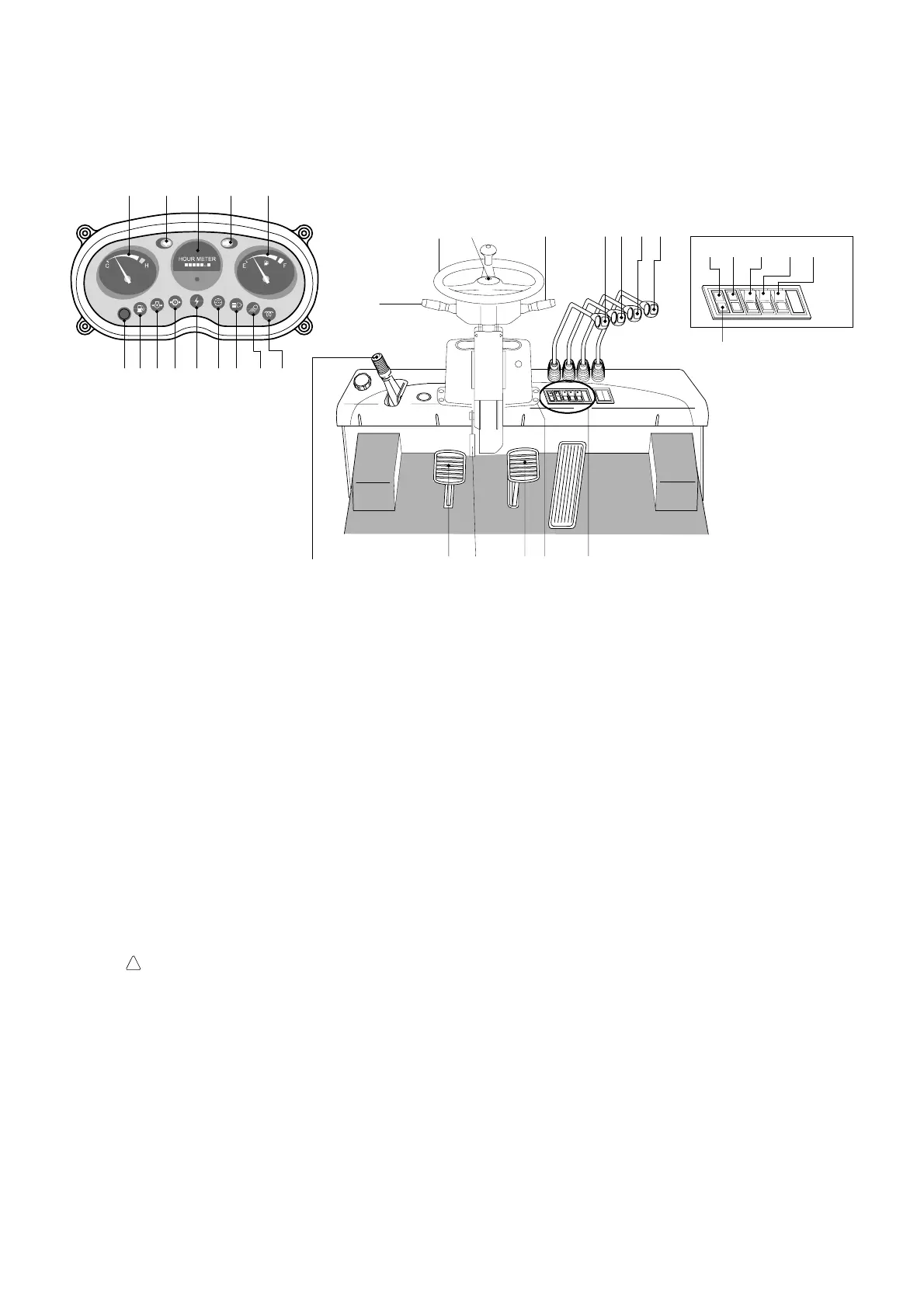

1 Start switch
2 Water temperature gauge
3 Left turn signal lamp
4 Fuel level warning lamp
5 Engine oil pressure warning lamp
6 Battery charge warning lamp
7 T/M oil temp warning lamp
8 Air cleaner element warning lamp
9 Head lamp signal lamp
10 Right turn signal lamp
11 Fuel gauge
13 Parking brake signal lamp
14 Hour meter
15 Preheater signal lamp
16 Water separator check lamp
17 Work lamp switch(opt)
18 Hazard lamp switch(opt)
19 Beacon switch
20 Parking brake lever
21 Inching pedal
22 Brake pedal
23 Lift lever
24 Tilt lever
25 Attach 1 lever(opt)
26 Attach 2 lever(opt)
27 Horn button
28 Head lamp switch
29 Illumination lamp
30 Turn signal switch
31 Steering wheel
32 Forward-reverse lever
33 Steering column adjust lever
35 Engine check lamp (STD)
36 Operator safety lamp (OPT)
P
13 4 5 7 6 8
31421011
20
28
32
A
16
36
18
17
DETAIL A
91715
23
24 25 26
1
21 22
31
19
,29,30
33
27
35
60DF7EOM64T
Familiarize yourself with the controls and follow safe operating procedures.
