3-16

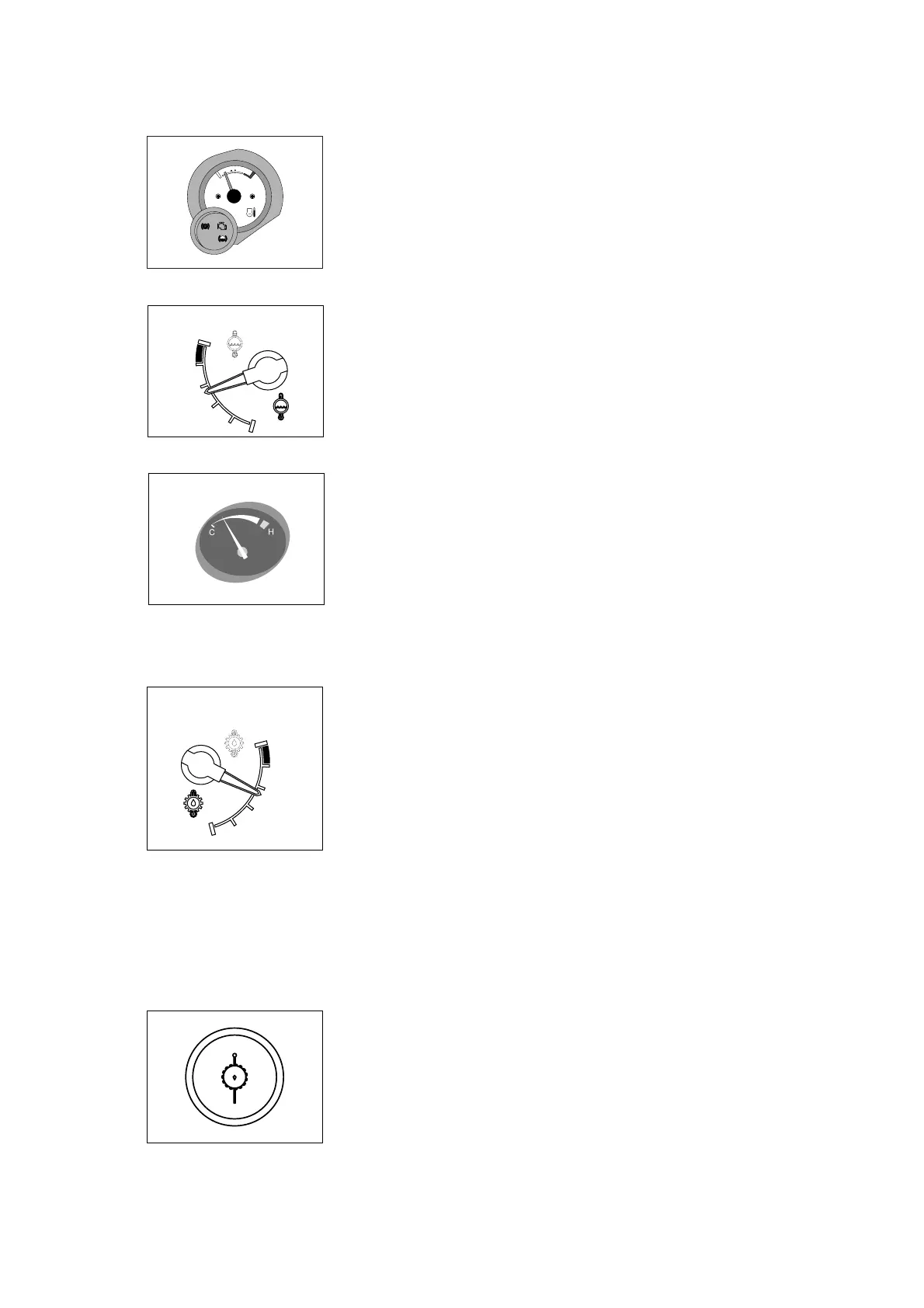

The indicator shows the engine cooling water temperature.
White range : Normal
Red range : Danger of overheating.
Action to take if indicator enters red range.
Stop operations immediately and move the truck to a safe
place.
Open the engine hood to improve the ventilation and run the
engine at low idling until the temperature drops to the white
range.
For details, see HANDLING MACHINE IN EXTREMELY
HOT PLACES, page 7-55.
WATER TEMPERATURE GAUGE
3)
160D7ECD10
%%%&%&
15D7EOM03K
(1)
Η
Θ
Η
Θ
(2)
ö
60DFOM03K
This range indicates the temperature of transmission oil.
Â
White range : 40-107
Á
C
(104-225
Á
F
)
Â
Red range : 107
Á
C
(225
Á
F
) above
The white range indicates when operating.
Keep idling engine at low speed until the white range
indicates, before operation of machine.
If the indicator is in the red range, it means the transmission
is overheated. Be careful that the indicator does not move
into the red range.
TTRANSMISSION OIL TEMPERATURE GAUGE
(1)
(2)
4)
160D7ECD11
%4%4%4&
%%%&%&
Η
Θ
This lamp informs the operator that transmission oil is above
the specified temperature.
Transmission oil temperature warning lamp ON : Abnormal
Transmission oil temperature warning lamp OFF : Normal
W
When this lamp lights up during operation, stop the engine
and check the machine.
TRANSMISSION OIL TEMP
ERATURE WARNING LAMP (1.5~4.5 ton, 50~70DF-7)
5)
D35AOM79
(1)
Η
Θ
ö
%'%'%'
