7-86
Maintenance
5. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
6. Remove the bulb by pulling it out.
7. Insert a new bulb by inserting it
into the socket.
8. Install the light assembly to the
trunk.
9. Reinstall the nuts and connector
and then the trunk lid cover by
pushing in the screw.

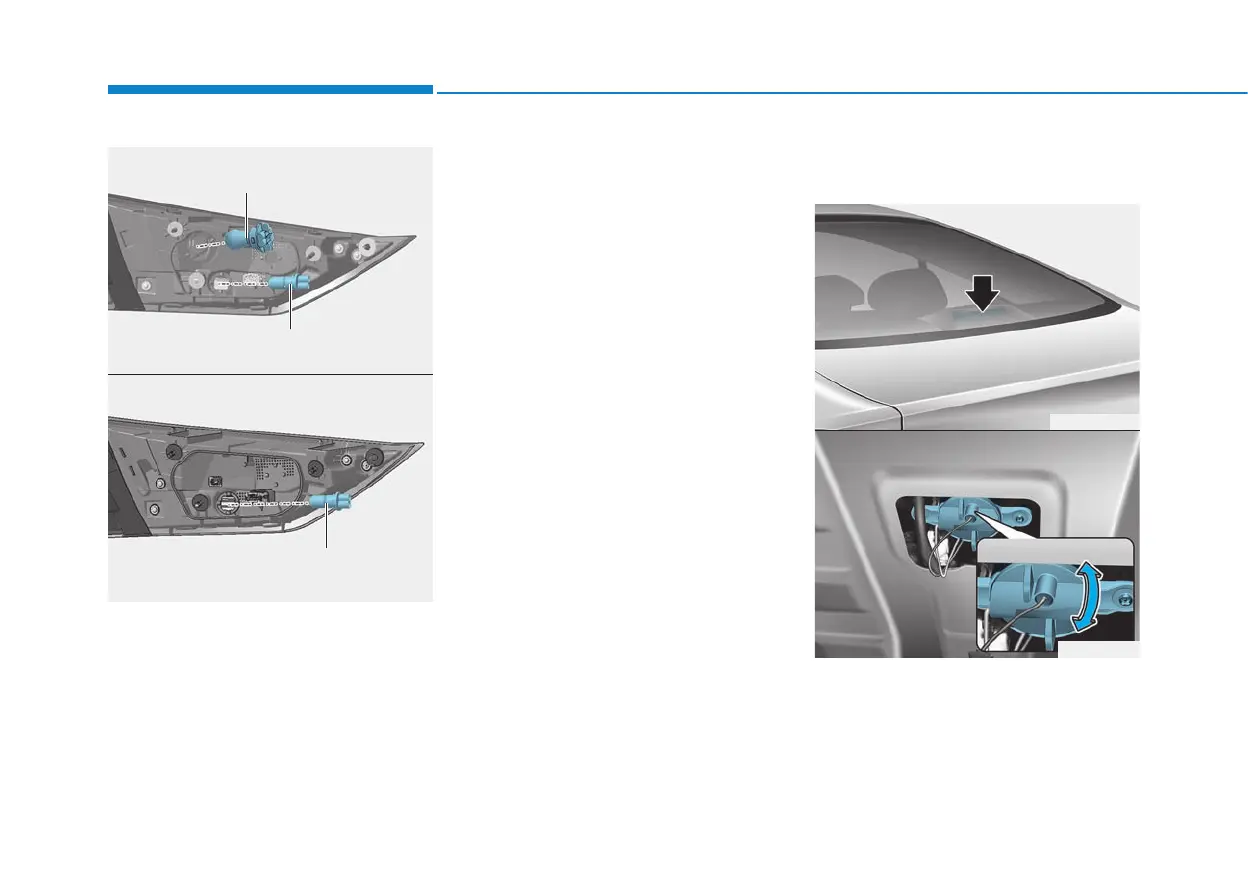

Stop/Tail light (Type B)
If the LED light does not operate,
have the vehicle checked by an
authorized HYUNDAI dealer.
High mounted stop light
replacement
1. Open the trunk.
2. Remove the socket by turning it
counterclockwise until the tabs on
the socket align with the slots.
OAD075041
OAD075042
OAD075069N
OAD075070N
■ Type A - Bulb type
■ Type B - LED type
Back up
Tail
Back up
