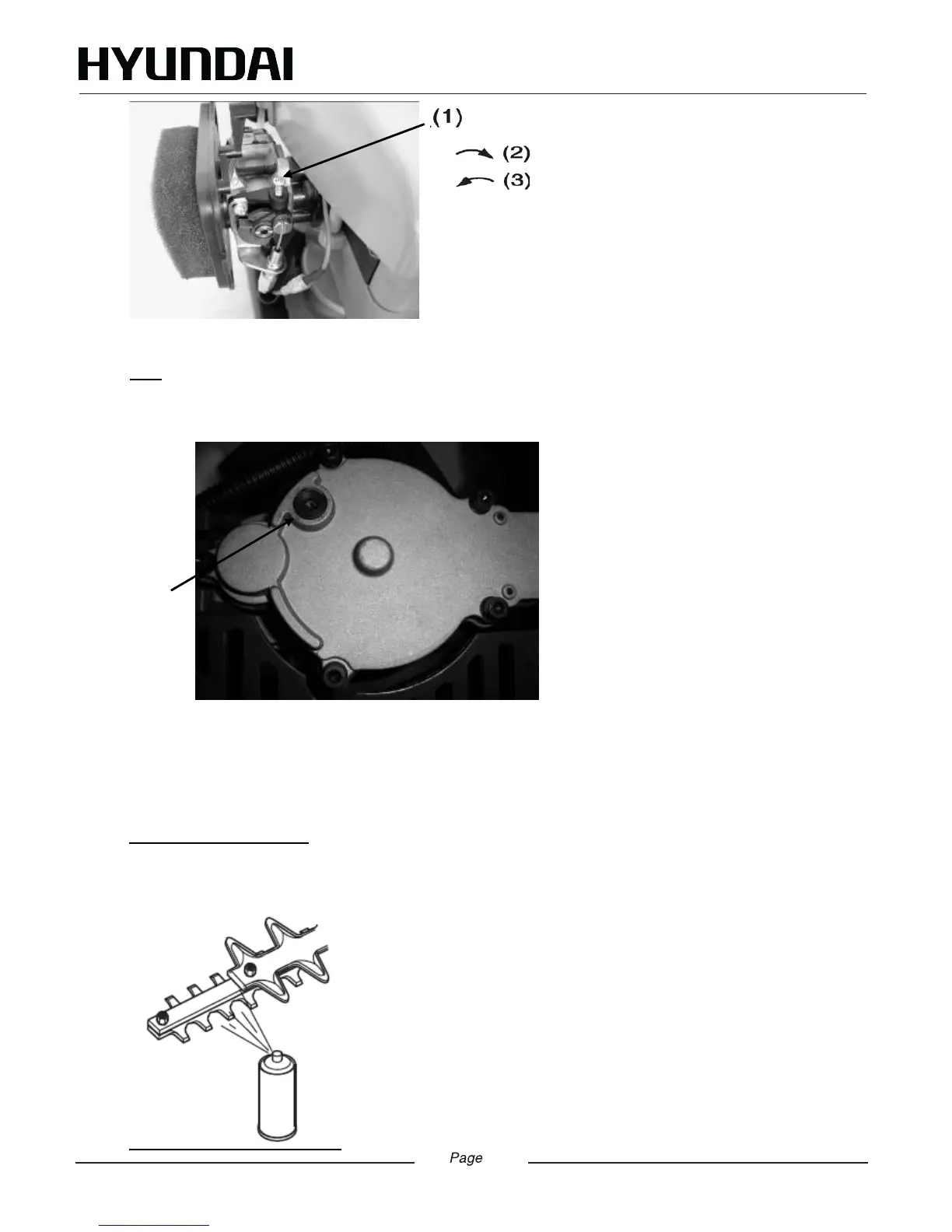

(1) Idle adjusting screw (2) Higher speed (3) Lower speed
Gear
There is a grease nipple and a plug for lling lubricant on the gear housing. Use a grease gun to ll with grease.
This should be done after every 50 working hours. Use special grease which can withstand high temperature
and high pressure.
(A) Grease nipple
CAUTION!
The gear housing must not be lled completely with grease. The grease expands as the machine heats
up during operation. If the gear housing was completely lled with grease it could damage the seals and
lead to leakage of grease.The grease in the bevel gear does not normally need to be changed except if
repairs are carried out.
C leaning and lubrica tion
Clean any resin and plant residue from the blades using cleaning agent before and after using the machine.
Lubricate the blade bars with anti-rust grease before long periods of storage.
