Maintenance
767

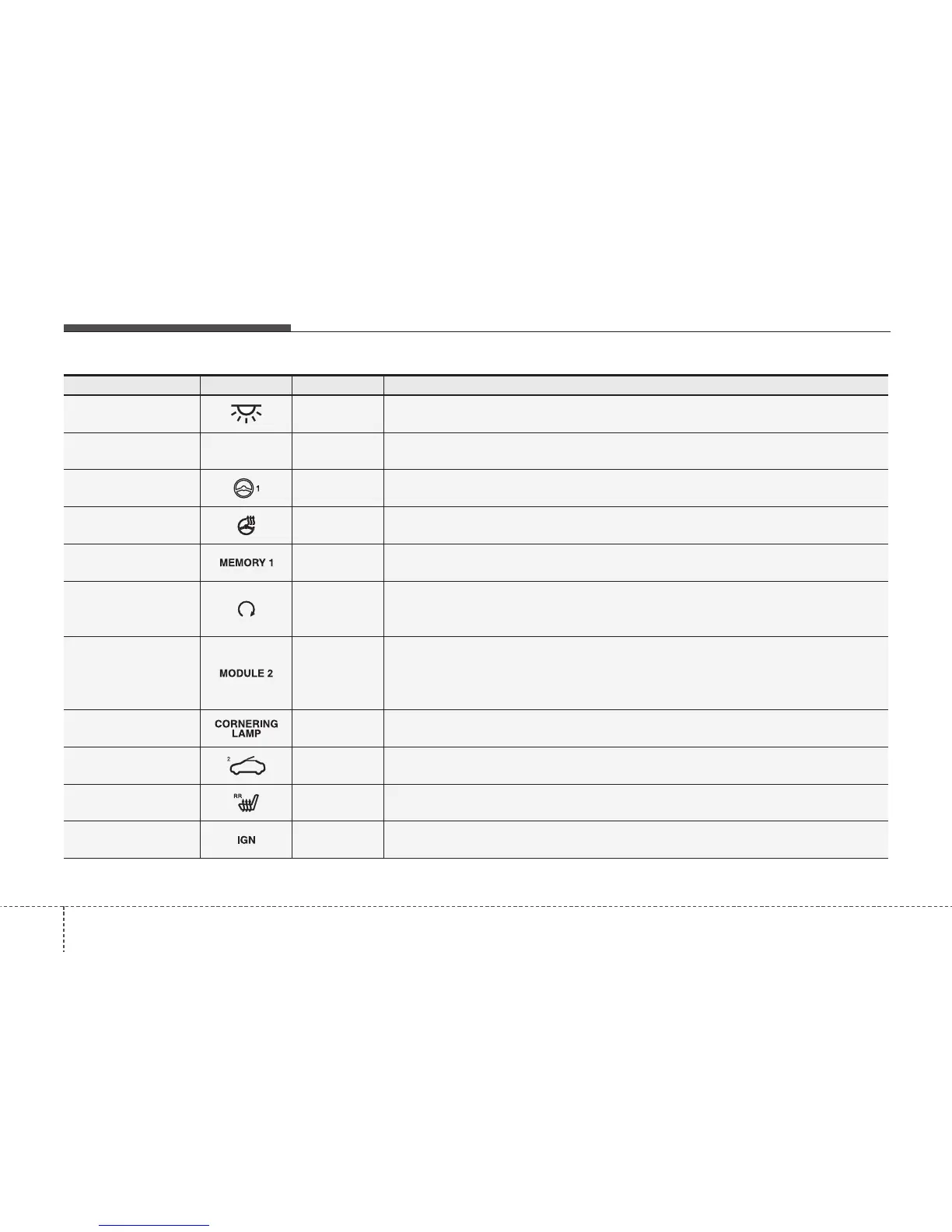

Description Symbol Fuse rating Protected Component
INTERIOR LAMP 15A
Cargo Lamp, Vanity Lamp LH/RH, Overhead Console Lamp Center Room Lamp,
Personal Lamp LH/RH
MULTI MEDIA
MULTI
MEDIA
15A Audio, A/V & Navigation Head Unit, Digital Clock
MDPS 7.5A MDPS Unit
HANDLE HTD 15A Steering Wheel Switch
MEMORY 1 10A RF Receiver, Ignition Key Ill. & Door Warning Switch
START 7.5A
W/O IMMO. & Smart Key : ICM Relay Box (Burglar Alarm Relay)
With IMMO./Smart Key : ECM/PCM, Transaxle Range Switch,
Smart Key Control Module, E/R Fuse & Relay Box (RLY. 2)
MODULE 2 10A
Adaptive Front Lighting Module, Crash Pad Switch, Active Hood Lift Control Module,
Glow Relay Unit (DSL), Multipurpose Check Connector, Head Lamp LH/RH, Head
Lamp Leveling Device Actuator LH/RH, Auto Head Lamp Leveling Device Module, Stop
Lamp Switch, Fuel Filter Warning Sensor (DSL), Diesel Box (RLY. 1)(DSL)
CORNERING LAMP 10A ICM Relay Box (Cornering Lamp Relay LH/RH)
SUNROOF 2 20A Sunroof
S/HEATER RR 15A Rear Seat Warmer LH/RH
IGN 20A E/R Fuse & Relay Box (Fuse - F35, F36, F37, F38)
To Next Page
