783
Maintenance

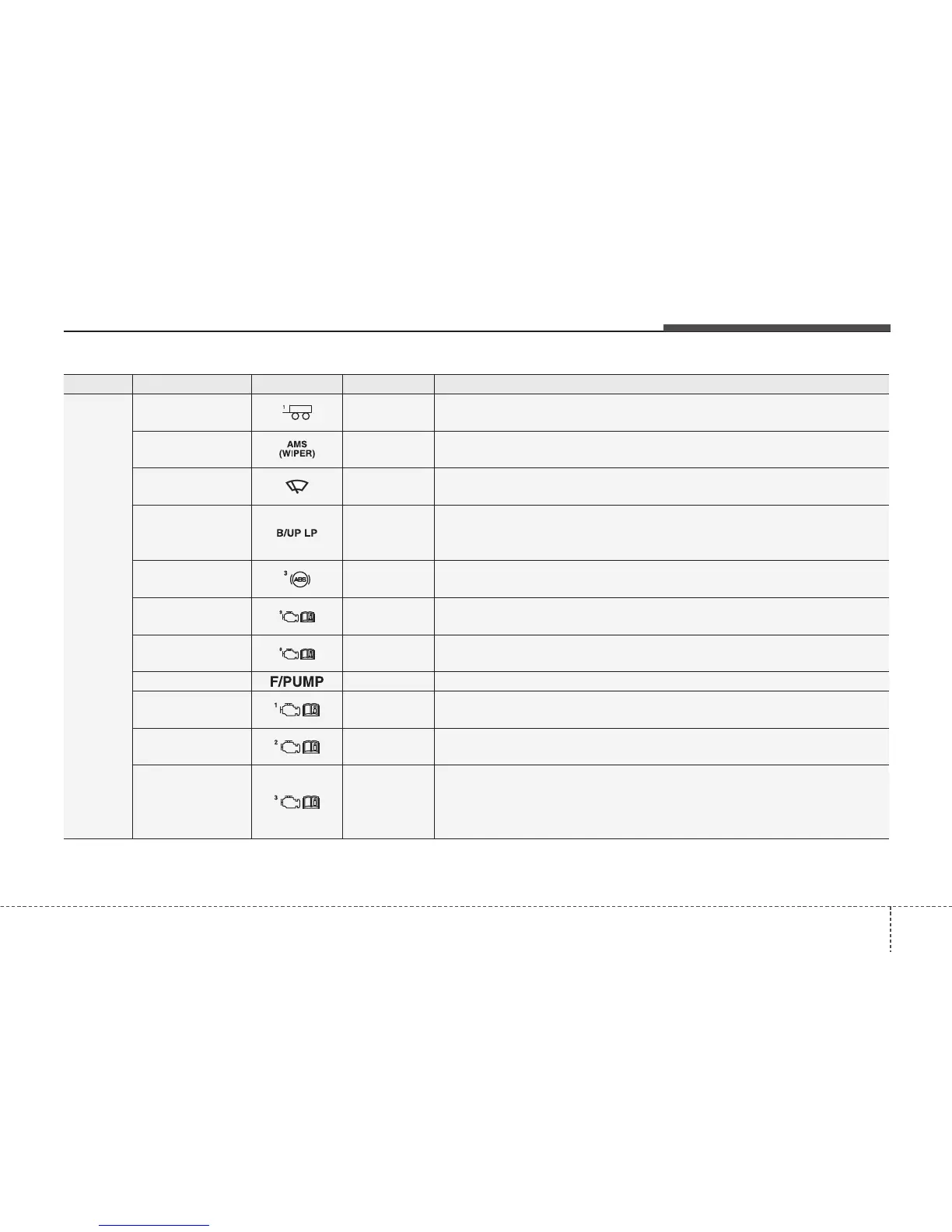

Description Symbol Fuse rating Protected Component
FUSE
TRAILER 1 15A Trailer Lamp & Power Outlet
WIPER 10A BCM, PCM/ECM
WIPER FRT 25A RLY. 5 (Wiper (LO) Relay), Front Wiper Motor
B/UP LAMP 10A
M/T - Back-Up Lamp Switch, A/T - Rear Combination Lamp (IN) LH/RH,
Electro Chromic Mirror, Trailer Lamp & Power Outlet, Audio, A/V & Navigation
Head Unit
ABS3 7.5A ABS Control Module, ESC Control Module
SENSOR5 7.5A PCM/ECM, Mass Air Flow Sensor
TCU 15A TCM (DSL), Transaxle Range Switch
F/PUMP 15A Fuel Pump Relay
ECU1 15A
G4KE/G4KJ/G6DF : PCM
D4HA/D4HB (VGT Regular Engine Pack) : TCM (A/T)
ECU2 10A D4HA/D4HB : Electronic VGT Actuator
SENSOR3 10A
G4KE : Injector #1/#2/#3/#4
G6DF : PCM, Injector #1/#2/#3/#4/#5/#6, Fuel Pump Relay
D4HA/D4HB (VGT Regular Engine Pack) : Lambda Sensor, Stop Lamp Switch
D4HA (VGT Low Power Engine Pack) : Lambda Sensor
To Next Page
