ENGINE COMPARTMENT
1. Engine coolant reservoir...................7-33
2. Engine oil filler cap ...........................7-31
3. Brake/clutch fluid reservoir ...............7-36
4. Positive battery terminal ...................7-46
5. Negative battery terminal..................7-46
6. Fuse box ...........................................7-63
7. Air cleaner.........................................7-38
8. Radiator cap .....................................7-35
9. Engine oil dipstick .............................7-31
10. Windshield washer fluid reservoir...7-37

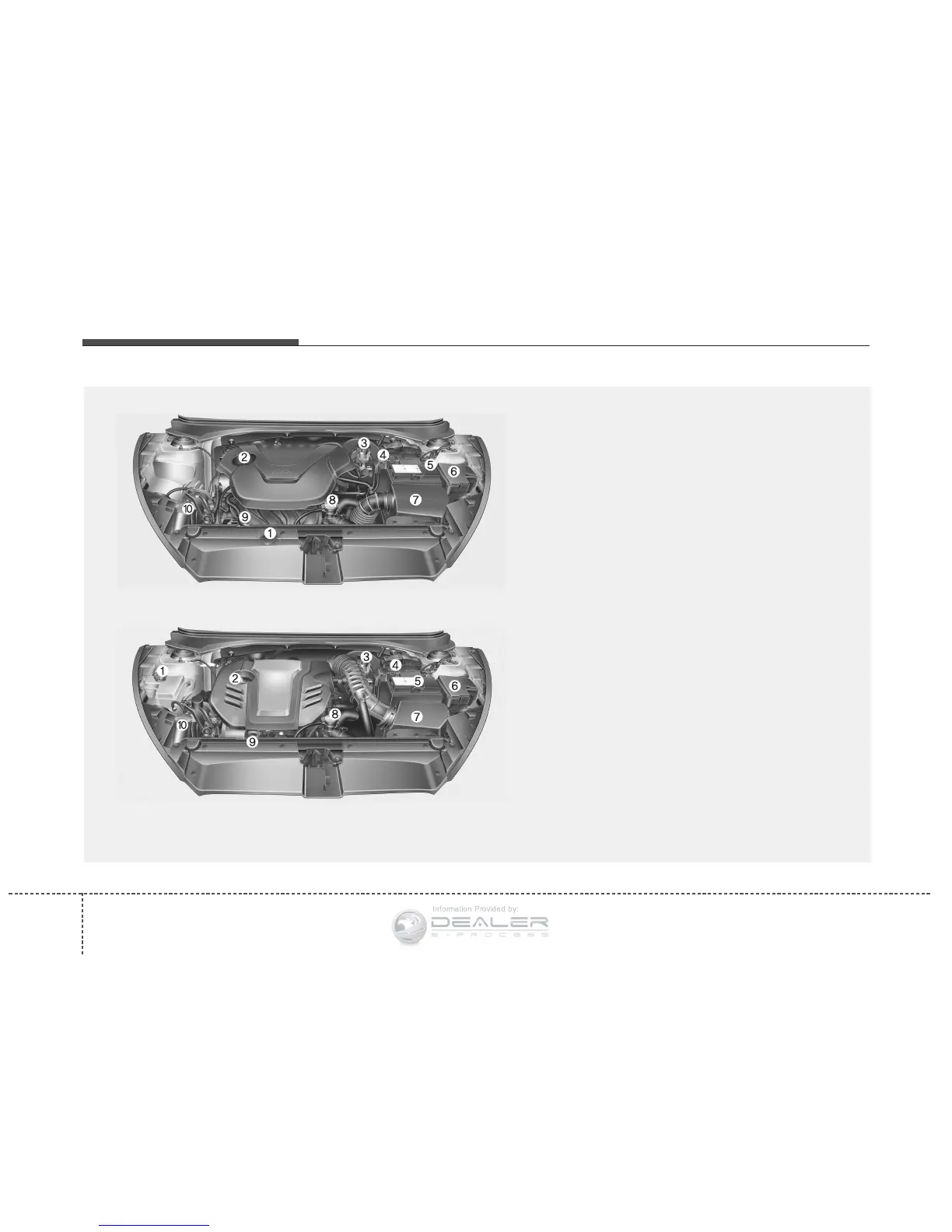

OFS011003/OFS012004
* The actual engine room including engine cover in the vehicle may differ from the illustration.
