IBC EX 850 User Manual

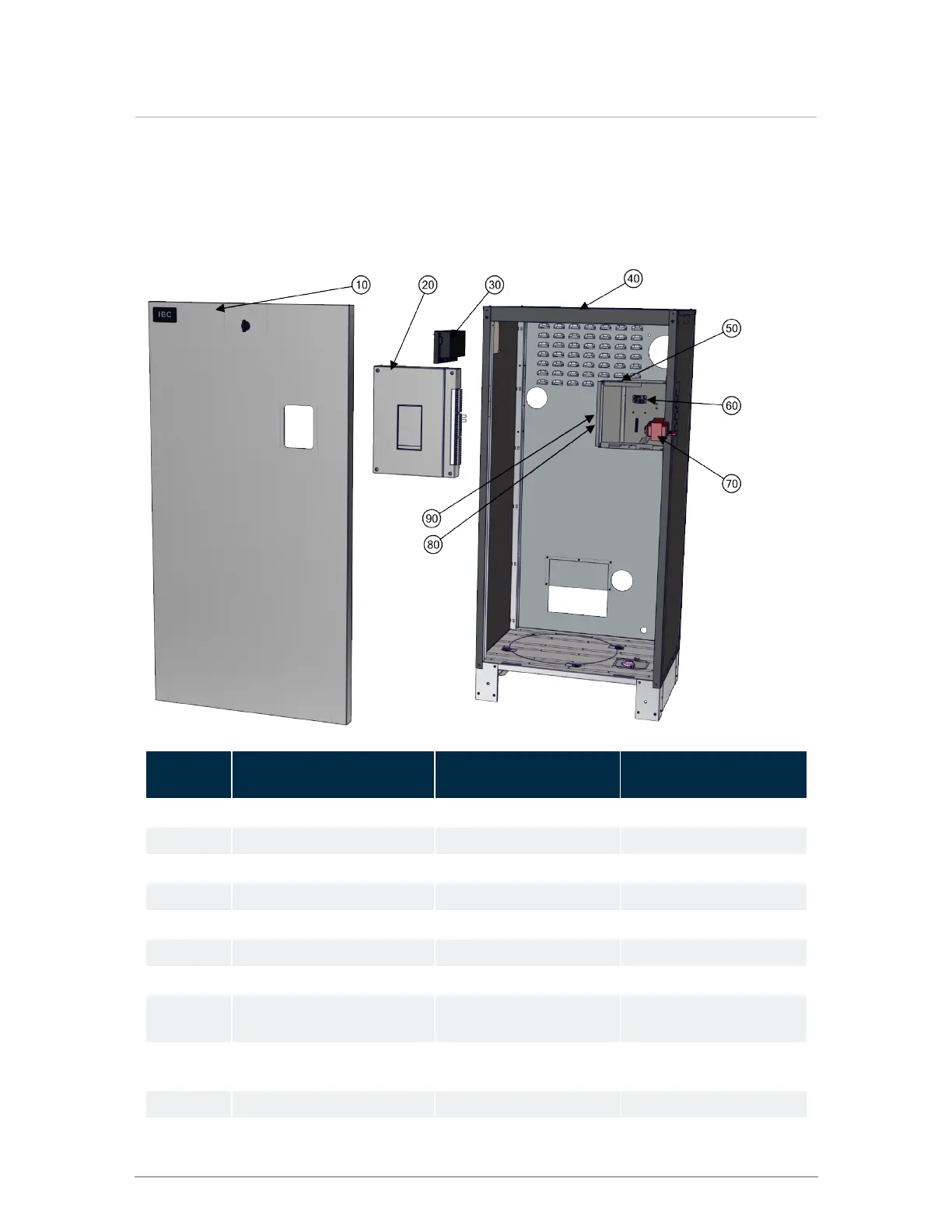

Boiler parts diagram - EX 400 and EX 500
Item
Number
Description Part Number
Replacement Kit
Numbers
10 Door 500-134 P-1209
20 Controller 500-044 P-242
30 Safety Ignition Module 500-105 P-270B
40 Top panel 251-030 P-1227
50 Controller module chassis 251-042 P-1248
60 Boiler pump relay 240-165 P-1233
70 Transformer 240-008 P-9059
80 Air pressure sensor (behind
controller)
240-162 P-1210
90 Vessel high limit switch
(behind controller)
240-030 P-9070
Wiring harness (not shown) 200-179 P-1256
125
Section: Boiler parts diagram - EX 400 and EX 500
