RIPLEY SWINGARM REMOVAL RIPLEY SWINGARM REMOVAL
This information is shown in a video:
http://tinyurl.com/n8f9o4p

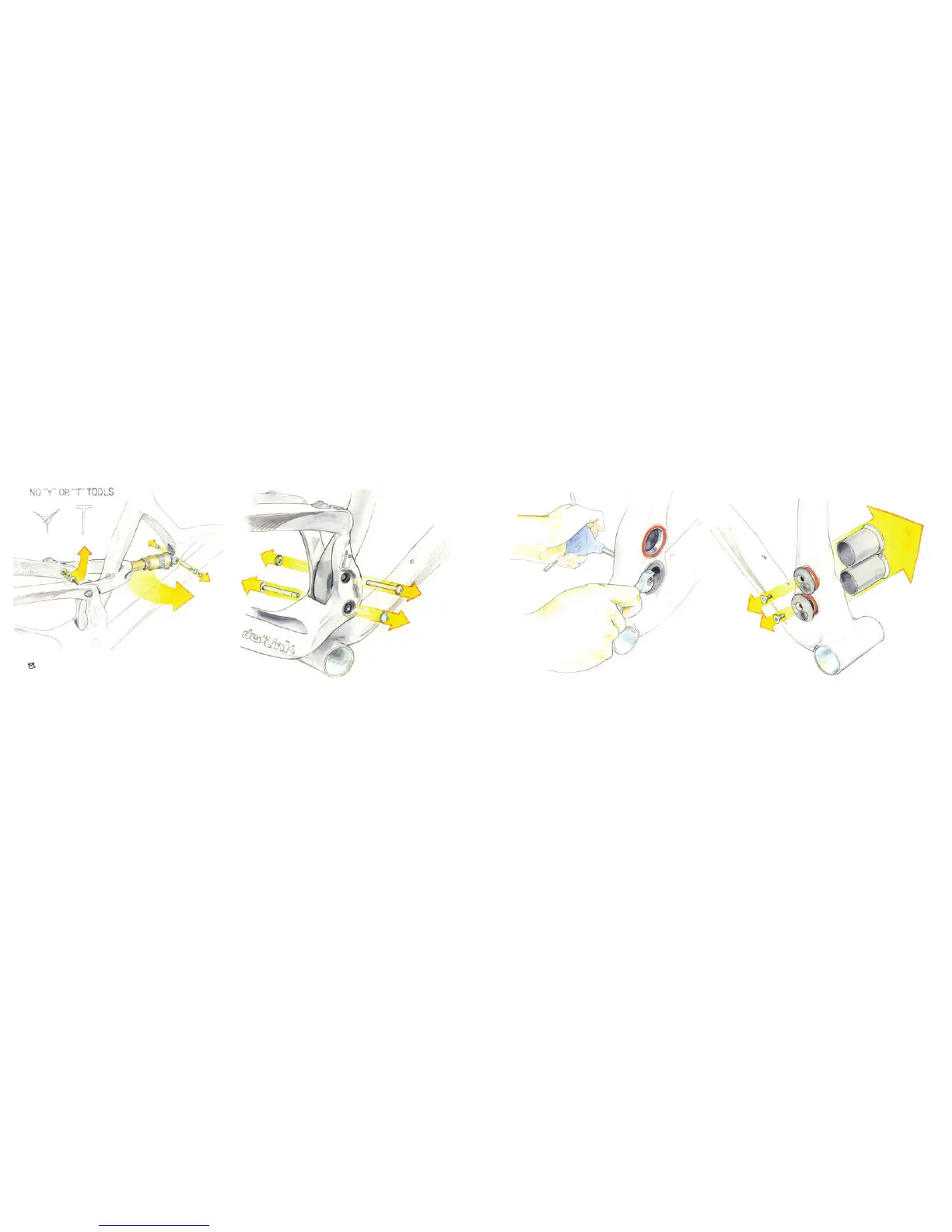

Step 1
Put your Ripley in a work stand. Remove the front
derailleur, cranks, brakes and the rear wheel.
Remove the upper 4mm shock bolts and lower
5mm clevis bolts (Do not use Y or T tools when
removing the clevis bolts). Gently remove the clevis
from the swingarm, leaving the shock attached.
Step 2
Remove both of the eccentric core bolts
using 6mm allen wrenches.
Step 3
Remove the countersunk bolt from each
eccentric core cap. You might need to
use a 12mm open end wrench to prevent
the eccentric from rotating. Do not use a
crescent wrench, cave man!
Step 4
Gently remove the cap, and then you will
be able to push the eccentric core out of
the frame.
