ibis Mojo HD 3 User Manual

G
6 7

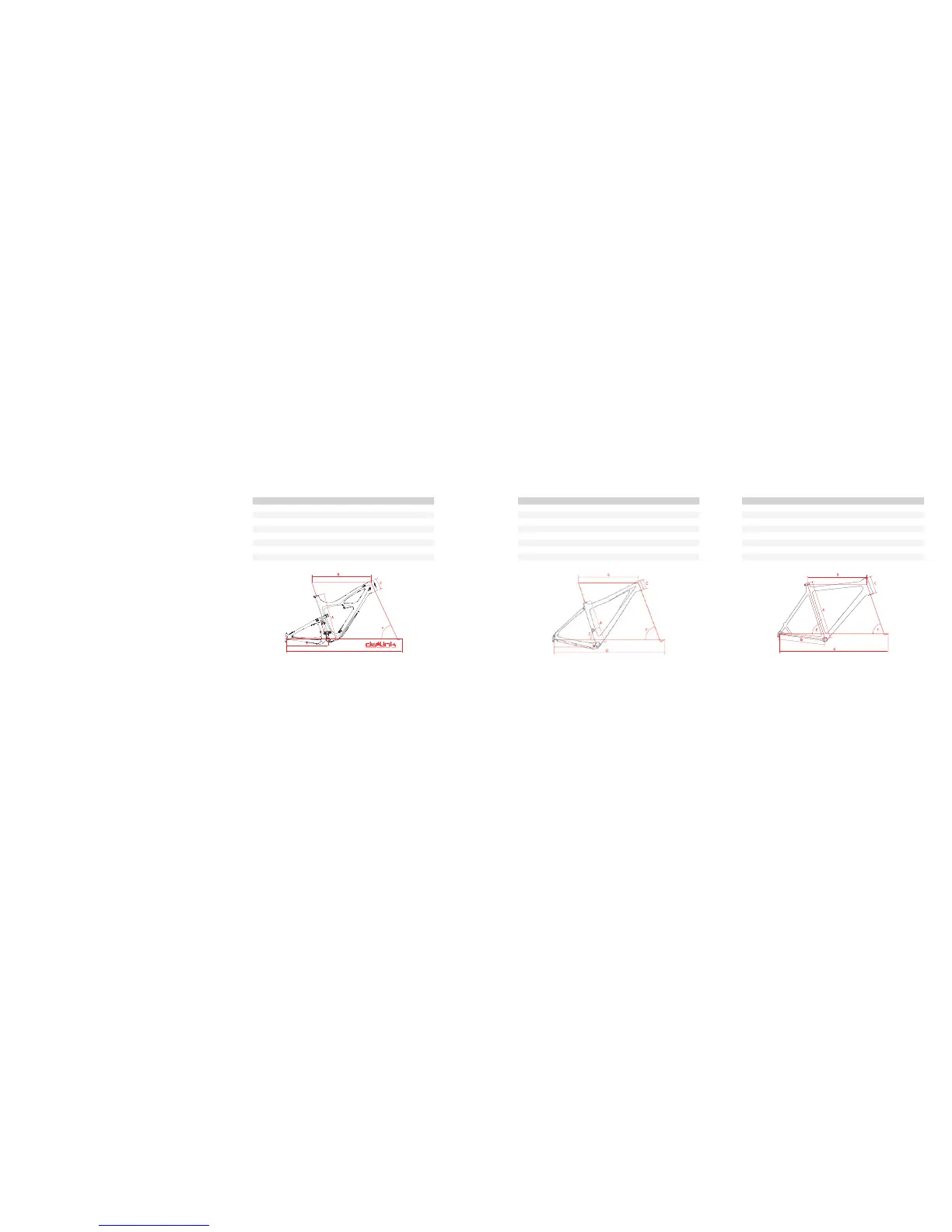

FRAME GEOMETRY CHART
Size Small Medium Large X-Large
Seattube A
14.5” 16.5” 18.5” 20.5”
Toptube B
580mm 600mm 620mm 640mm
Headtube C
85mm 105mm 117mm 132mm
Chainstay D
430mm 430mm 430mm 430mm
Seat Angle E
73.6° 72.6° 72.6° 72.6°
Head Angle F
66.6° 66.6° 66.6° 66.6°
Wheelbase G
1135mm 1146mm 1168mm 1189mm
Stack
580mm 599mm 610mm 624mm
Reach
411mm 414mm 431mm 446mm
Mojo HD
3
• 650b (27.5”) wheels
• 150mm rear wheel dw-link travel
• Approved for 150-160mm forks
• 67º head angle with a 150mm fork ( 66.6º with 160mm fork)
• Super versatile internal cable routing
• Optional polycarbonate down tube cable guard
• Chainstay length: 16.9”
• Threaded bottom bracket (68mm English thread)
• ISCG 05 compatible with removable adapter
• Tapered headtube and steerer, ZS44 upper, ZS56 lower
• 12 x 142mm Maxle rear axle
• 160mm post mount left dropout, carbon ber
FRAME GEOMETRY CHART
Size Small Medium Large X-Large
Seattube A
14.5” 17” 19” 21”
Toptube B
564mm 584mm 605mm 625mm
Headtube C
78mm 94mm 100mm 115mm
Chainstay D
435mm 435mm 435mm 435mm
Seat Angle E
73° 73° 73° 73°
Head Angle F
71° 71° 71° 71°
Wheelbase G
1045mm 1066mm 1087mm 1107mm
Stack
607mm 622mm 628.5mm 642mm
Reach
378mm 393mm 411mm 437mm
Size 47 50 53 55 58 61
Seattube A
470mm 500mm 530mm 550mm 580mm 610mm
Toptube B
520mm 530mm 540mm 555mm 570mm 590mm
Headtube C
100mm 115mm 135mm 155mm 175mm 195mm
Chainstay D
430mm 430mm 430mm 430mm 430mm 430mm
Seat Angle E
74.5° 74° 73.5° 73° 73° 73°
Head Angle F
70.5° 71° 71.5° 71.5° 71.5° 71.5°
Wheelbase G
1007mm 1009mm 1011mm 1024mm 1037mm 1057mm
Stack
523mm 538mm 559mm 578mm 596mm 616mm
Reach
373mm 374mm 374mm 377mm 387mm 400mm
Tranny
29
Hakkalügi Disc
700cc
• 29” wheels
• Approved for 120-140mm forks, 32 or 34 stanchion
• 71º head angle with a 100mm fork (70º with 120 fork)
• Super versatile internal cable routing
• Provision for cable-actuated adjustable seat posts
• Chainstay length: 17.1”
• Single speed and belt drive compatible
• BB92/Press GXP style integrated bottom bracket
• High direct mount front derailleur
• Tapered headtube and steerer: ZS44 upper, EC49 lower
• 12 x 142mm Maxle rear axle
• 160mm post mount left dropout, carbon ber
• 700c wheels
• Trail: 67mm @ 71.5º head angle, 70mm @ 71º and 73mm @ 70.5º
• Chainstay length: 16.9”
• BB86 Press Fit bottom bracket
• 34.9mm top pull front derailleur
• Tapered headtube: IS 41/28.6 upper, IS 52/40 lower
• 135mm rear dropout spacing
• Post mount for rear disc brake 140mm
