Ibiza sound MX401 User Manual

7

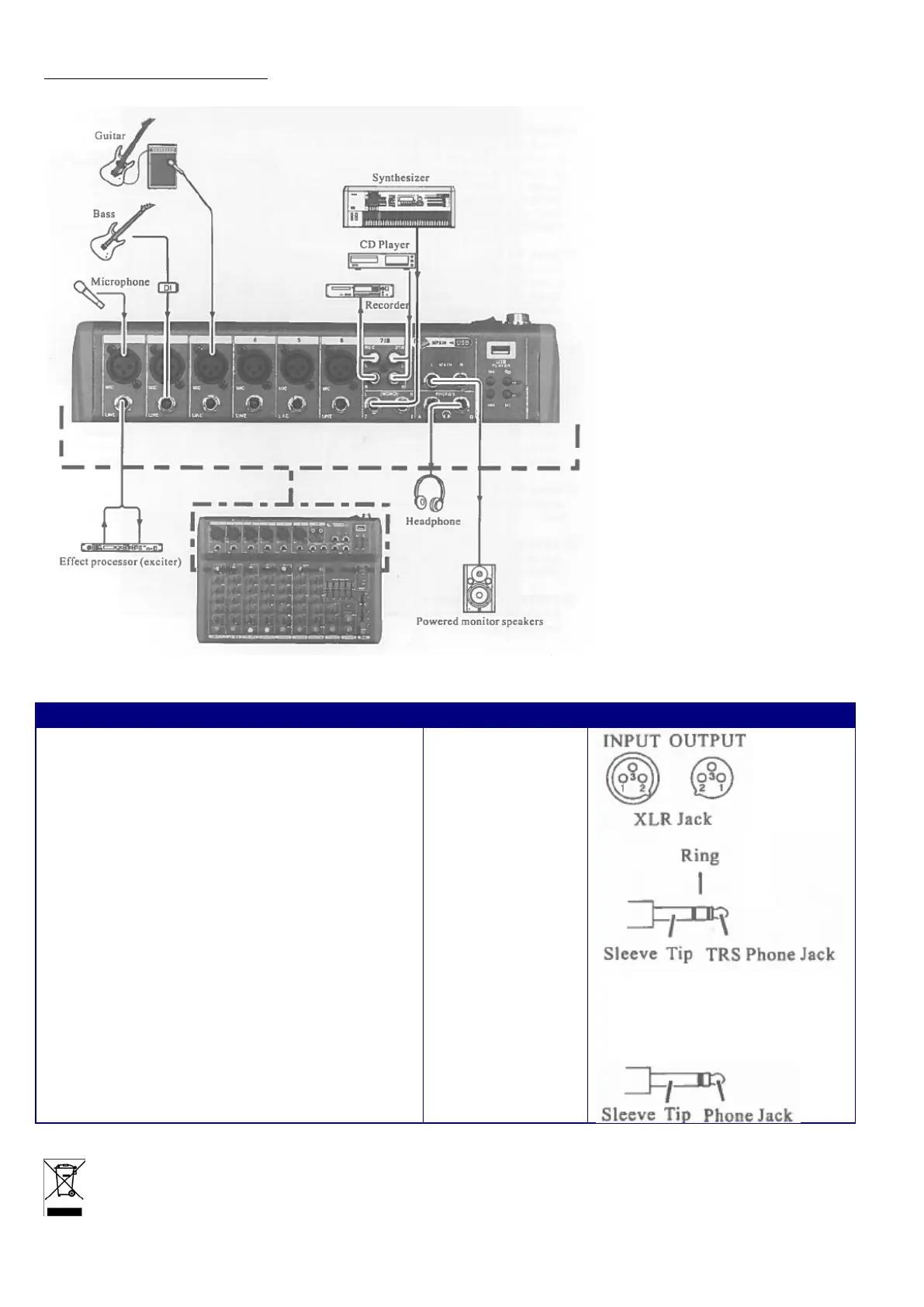

CONNECTION DIAGRAM:
JACK LIST
In & output jacks
Polarities
Configuration
MIC INPUT, STEREO OUT
Pin 1 : Ground
Pin 2: Hot (+)
Pin 3: Cold (-)
input/output
LINE INPUT (monaural channels) GROUP OUT,
STEREO OUT, MONITOR OUT, AUX SEND, EFFECT
SEND
Tip: Hot (+)
Ring: Cold (-)
Sleeve: Ground
INSERT
Tip: Output
Ring: Input
Sleeve: Ground
PHONES
Tip: L
Ring: R
Sleeve: Ground
RETURN LINE INPUT (stereo channels)
Tip: Hot
Sleeve: Ground
Electric products must not be put into household waste. Please bring them to a recycling centre. Ask
your local authorities or your dealer about the way to proceed.
