Table 63. Dimensions for 7014-T00 rack with FC 6117 or FC EPB8 installed
Dimensions Properties
Width (rack with side panels) 644 mm (25.4 in.)
Depth 1148 mm (45.2 in.)
Height with -48 v DC power only 1926 mm (75.8 in.)
Height with -48 v DC power and overhead cable tray
(normally included with FC EPB8)
1941 mm (76.4 in.)
Table 64. Environment requirements for FC 6117 and FC EPB8
Environment Recommended operating Allowable operating Nonoperating
Temperature -5°C to 55°C (23°F - 131°F)
Humidity range 0% - 90% relative humidity
(RH) (non-condensing)
Shipping temperature -40°C to 70°C (-40°F to
158°F)
Shipping relative humidity 0% - 93%
Model 7014-T42, 7014-B42, and 0553 rack:
Hardware specifications provide detailed information for your rack, including dimensions, electrical,
power, temperature, environment, and service clearances.

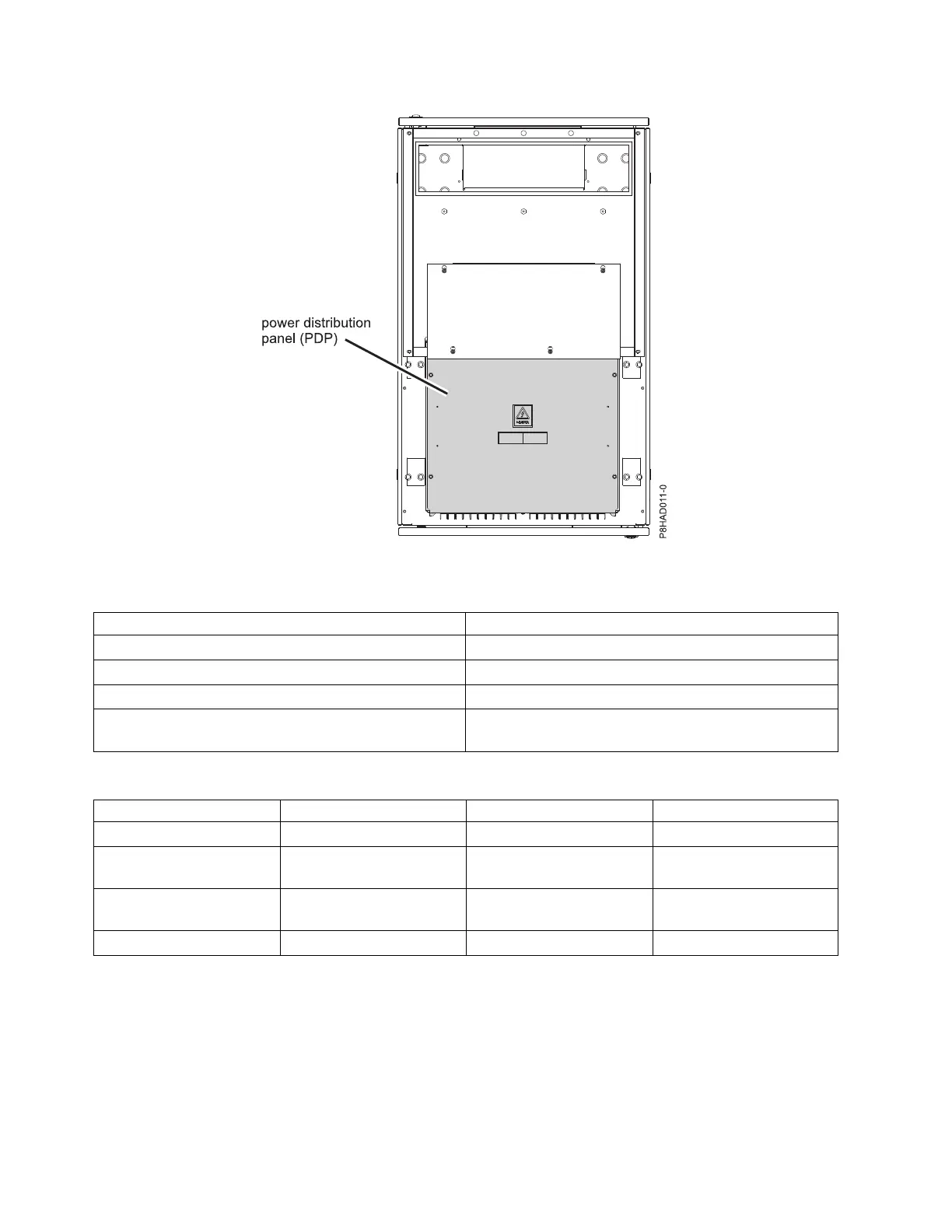

Figure 22. FC EPB8 - power distribution panel (top-down view)
40 Site and hardware planning
