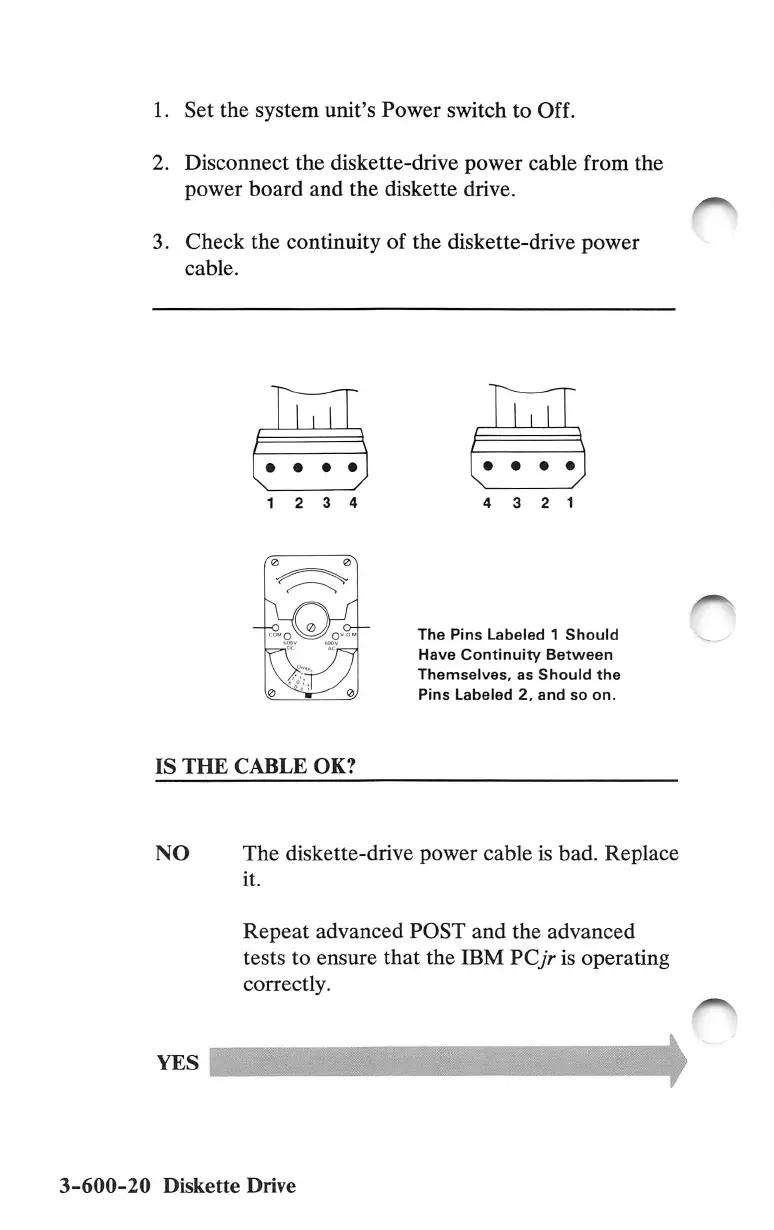

1.
Set
the
system
unit's
Power
switch
to
Off.
2.
Disconnect
the
diskette-drive
power
cable
from
the
power
board
and
the
diskette
drive.
3.
Check
the
continuity
of
the
diskette-drive
power
cable.
• • • •
12
3 4
— <dj
IS
THE
CABLE
OK?
• • • •
4 3 2 1
The
Pins
Labeled
1
Should
Have
Continuity
Between
Themselves,
as
Should
the
Pins
Labeled
2,
and
so
on.
The
diskette-drive
power
cable
is
bad.
Replace
it.
Repeat
advanced
POST
and
the
advanced
tests
to
ensure
that
the
IBM
PCjr
is
operating
correctly.
3-600-20
Diskette
Drive
