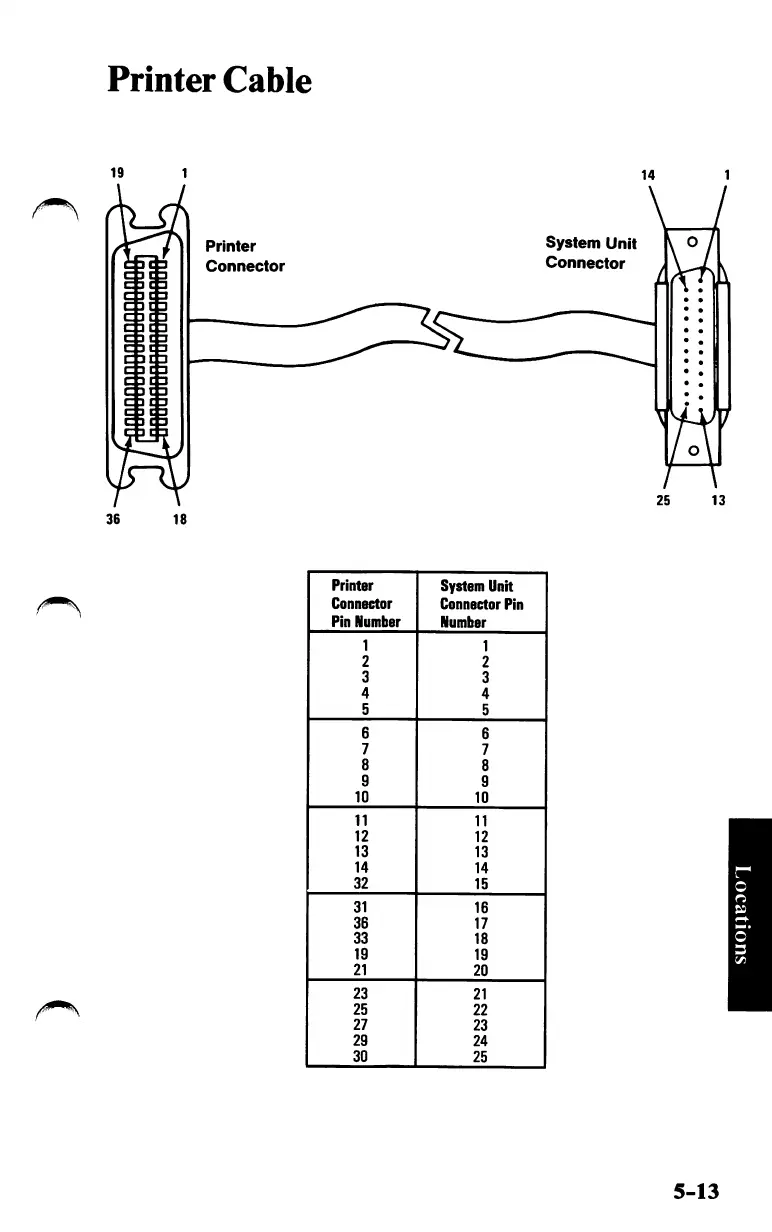

Printer
Cable
36
18
Printer
Connector
System
Unit
Connector
Printer
System Unit
Connector
Connector
Pin
Pin
Number
Number
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
32
15
31
18
38
17
33
18
19
19
21
20
23
21
25
22
27
23
29
24
30
25
5-13
