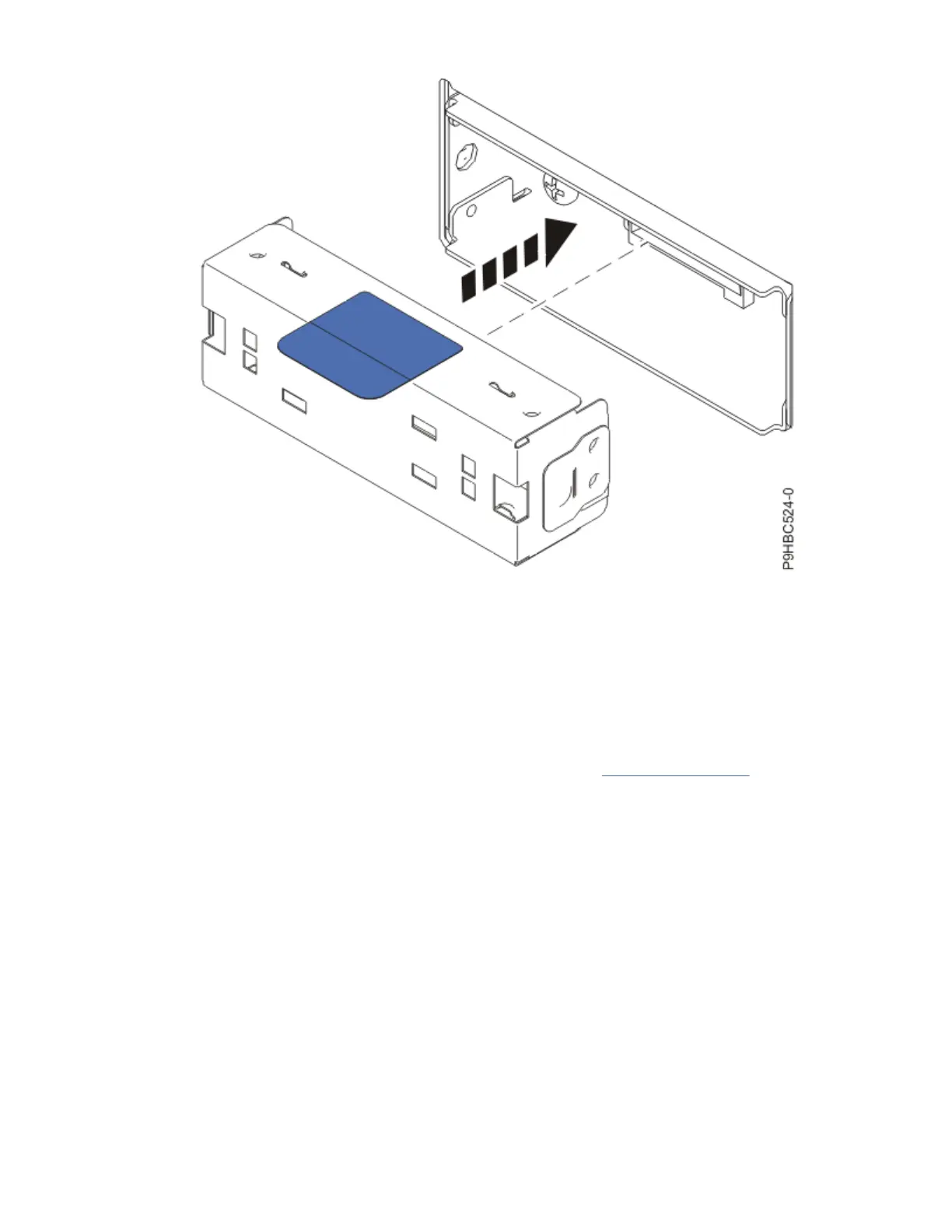

Figure 42. Inserting a display ller
Replacing the control panel display in the 9009-41A, 9009-42A, or 9223-42H system
To replace a control panel display, complete the steps in this procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. If needed, remove the display ller (A) using tab (B) as shown in Figure 43 on page 45.
If a plastic cover is in the front cover, remove the plastic cover to view the display.
44
Power Systems: Power Systems: Control panel

IBM Power System 9009-42A Specifications

General

Model	IBM Power System 9009-42A
Processor	POWER9
Maximum Memory	4 TB
Memory Type	DDR4
Operating System	AIX, IBM i, Linux
CPU Cores	Up to 24 cores
CPU	POWER9
Storage Options	NVMe
PCIe slots	Up to 16 PCIe slots
Networking	10 GbE
