4 - 5
L721
R616
R516
L722
C655
C555
L513
L943
RX peak
adjustment
Mixer balance
adjustment
FM distortion
adjustment
RX peak
adjustment
L613
RX peak
adjustment

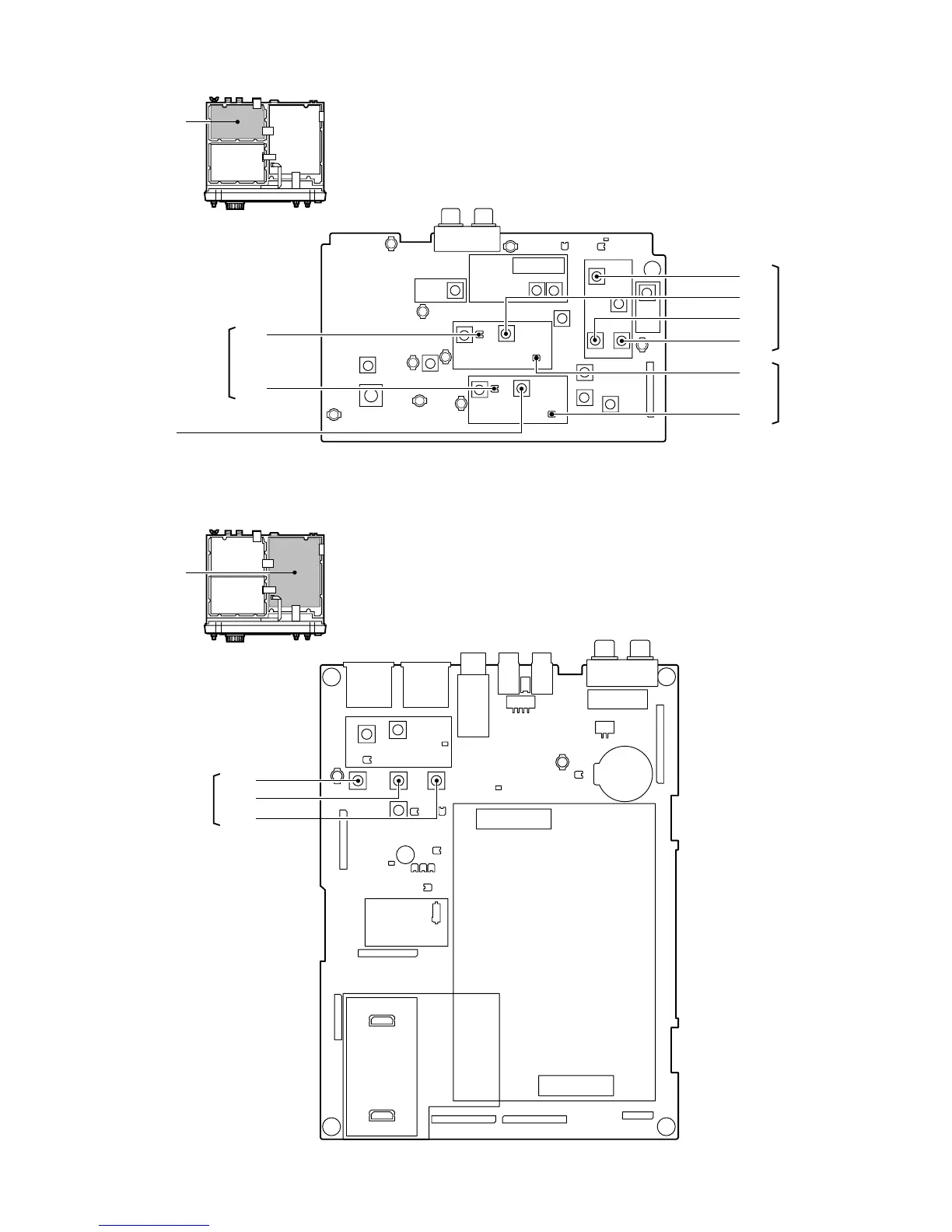

• RF unit
• MAIN unit
Bottom view of the transceiver
RF unit
L113
L112
L111
Bottom view of the transceiver
MAIN unit
