Icom IC-F210 Service Manual
4
of 1
of 1 rating
38 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
5 - 7
R59

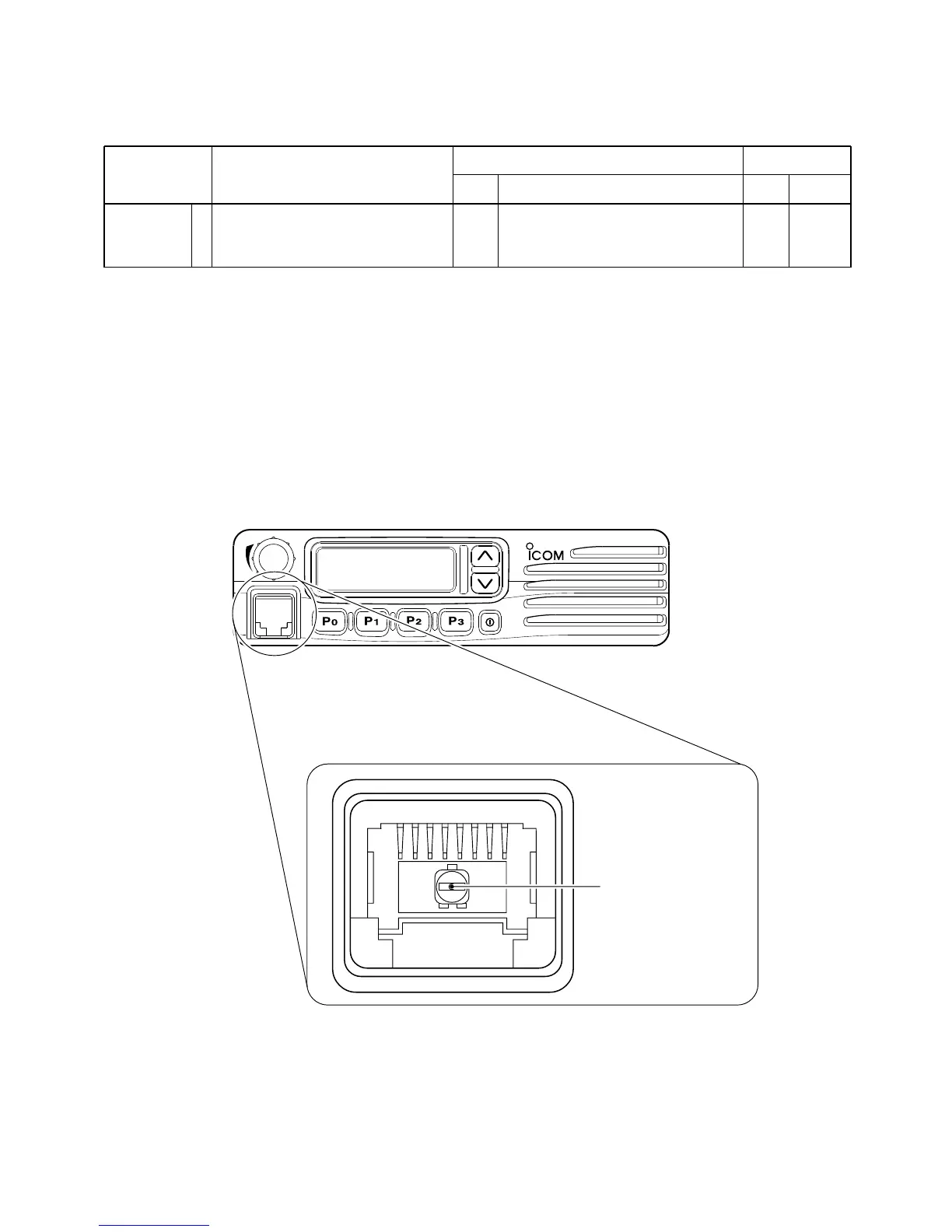

Beep volume adjustment
5-4 TRIMMER
ADJUSTMENT
• Make this adjustment if necessary (For example, when beep sound is too loud or too soft).
•
BE CAREFUL!:
5-tone calling beep sound becomes loud or soft when beep volume adjusts to loud or soft.
BEEP
VOLUME
1
•
Operating freq.
:
Any
•
Receiving
FRONT
Push any button except [POWER]
switch, then verify the beep volume
level.
FRONT
R59
ADJUSTMENT
ADJUSTMENT CONDITIONS
UNIT
LOCA
TION
UNIT
ADJUST
MEASUREMENT
ADJUSTMENT
• FRONT P
ANEL
17
19
Table of Contents
Default Chapter
2
Repair Notes
2
Explicit Definitions
3
Table of Contents
3
Specifications
4
Inside View
5
Section 11 Voltage Diagrams
6
Section 10 Block Diagram
6
Disassembly Instructions
6
Front Unit
6
Section 3 Disassembly Instructions
7
Section 2 Inside View
7
Circuit Description
7
1St Mixer and 1St if Circuits (Main Unit)
7
2Nd if and Demodulator Circuits (Main Unit)
7
Receiver Circuits
7
RF Circuit (Main Unit)
7
AF Amplifier Circuit (Main Unit)
8
Modulation Circuit (Main and Front Units)
8
Receiver Mute Circuits (Main and Front Units)
8
Transmitter Circuits
8
APC Circuit (Main Unit)
9
PLL Circuits
9
Power Amplifier Circuit (Main Unit)
9
VCO Circuit (Main Unit)
9
Port Allocations
10
Power Supply Circuit
10
D/A Converter IC
11
LCD Driver
11
Output Expander
11
Adjustment Procedures
12
Adjustment Software Installation
12
Preparation
12
Starting Software Adjustment
12
System Requirements
12
Connections
13
Required Test Equipment
13
Screen Display Example
14
PLL Adjustment
15
Software Adjustment
16
Trimmer Adjustment
18
Section 9 Board Layouts
19
Section 8 Semi-Conductor Information
19
Parts List
19
Front Unit
19
Mechanical Parts and Disassembly
26
Exploded View
27
Semi-Conductor Information
28
Board Layouts
29
Block Diagram
33
Voltage Diagrams
34
Main Unit
35
