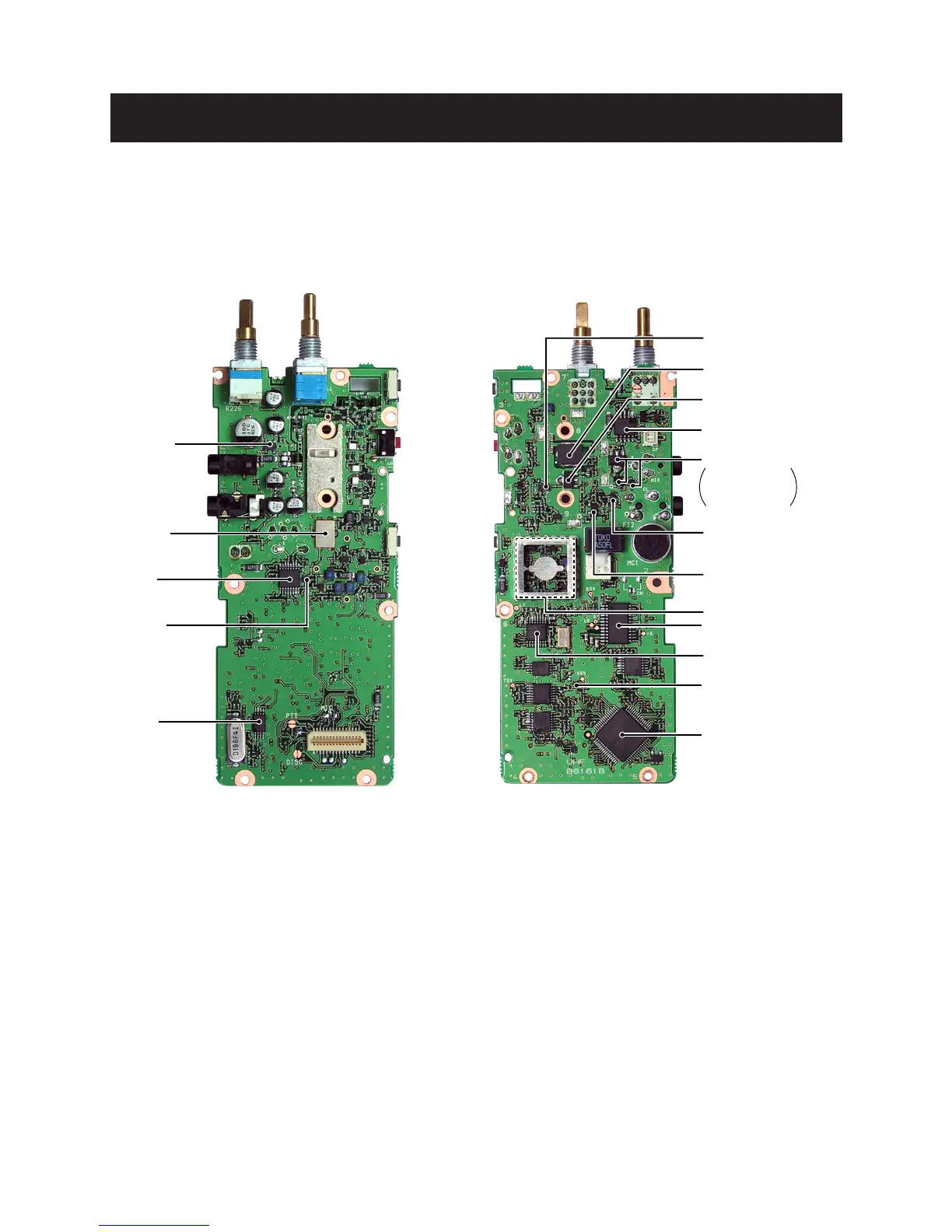

SECTION 2 INSIDE VIEWS
•
MAIN UNIT
2 - 1
+5 Regulator
(IC9: NJM2870)
AF amplifier
(IC12: TA7368F)
D/A converter
(IC8: M62363FP)
R5 Regulator
(Q22: 2SA1577)
CPU
(IC13: HD6433687A91FP)
S5 Regulator
Q23: 2SB1132
Q24: XP6501
Q25: UNR9113J
Crystal filter
(FI1: FL-335)
FM IF IC
(IC1: TA31136FN)
IF amplifier
(Q4: 2SC4215)
EEPROM
(IC15: BR24L16FV)
Power amplifier
(Q7: RD07MVS1)
T5 Regulator
(Q21: 2SA1577)
PLL IC
(IC4: MB15A02)
Pre-drive
(Q5: 2SC3356)
APC amplifier
(IC2: TC75S51F)
VCO circuit
TOP VIEW BOTTOM VIEW
Drive amplifier
(Q8: RD01MUS1)
