PANEL DESCRIPTION
■ Front panel
D Factory default key assignment
[Upper]
z Push to make a Smart-Ring call.
z Hold down to make a Call-Ring call.
L See the next page for more detail.
[Lower]
Hold down to release the C.Tone* mute. The
mute is released even if the received signal does
not include a matching C.Tone*.
[Top]
z Push to alternately select Zone 1 or Zone 2.
z Hold down to turn the Channel Announce
function ON or OFF.
NOTE: The Zone number is announced when
selecting a Zone, regardless of the Channel
Announce setting.
* CTCSS tone or DTCS code
D About the LED Indicator
• Lights red while transmitting.
• Lights green while receiving a signal.
• You should charge the battery when the indicator slowly
blinks green.
• You must charge the battery when the indicator quickly
blinks green.

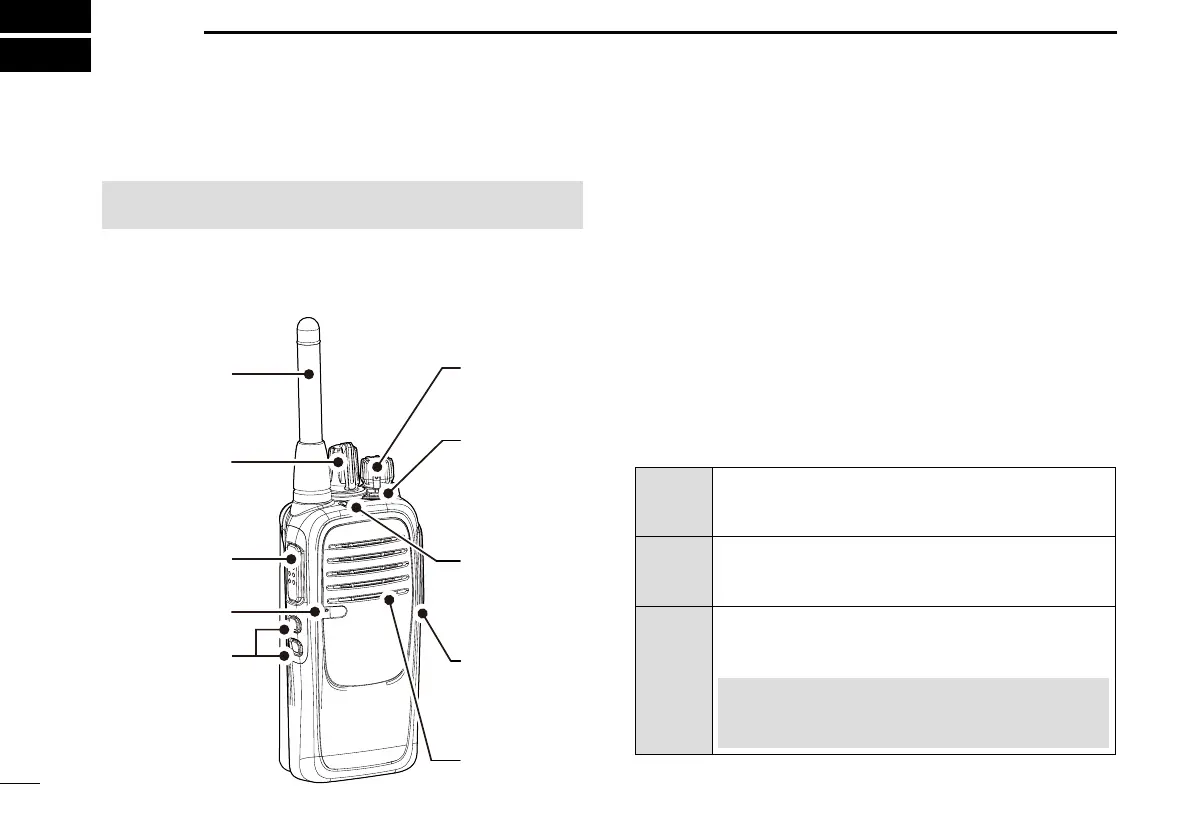

Speaker
Microphone
[PTT]
LED indicator
Antenna
[Upper]*
[Lower]*
* Other functions can be
assigned to these keys
with the CS-F29SR2
programming software
(purchase separately).
D About the Speaker microphone jack
The transceiver meets IP67 requirements for dust-tight
and waterproof protection only when the jack cover or the
optional HM-168LWP, HS-94LWP, or HS-95LWP is attached.
■ Turning ON the power
NOTE: For optimum life and operation, the battery must be
fully charged before using the transceiver for the rst time.
Rotate [VOL] to turn ON the power.
[Rotary Selector]
[VOL]
Speaker-
Microphone
jack
[Top]*
To Next Page
