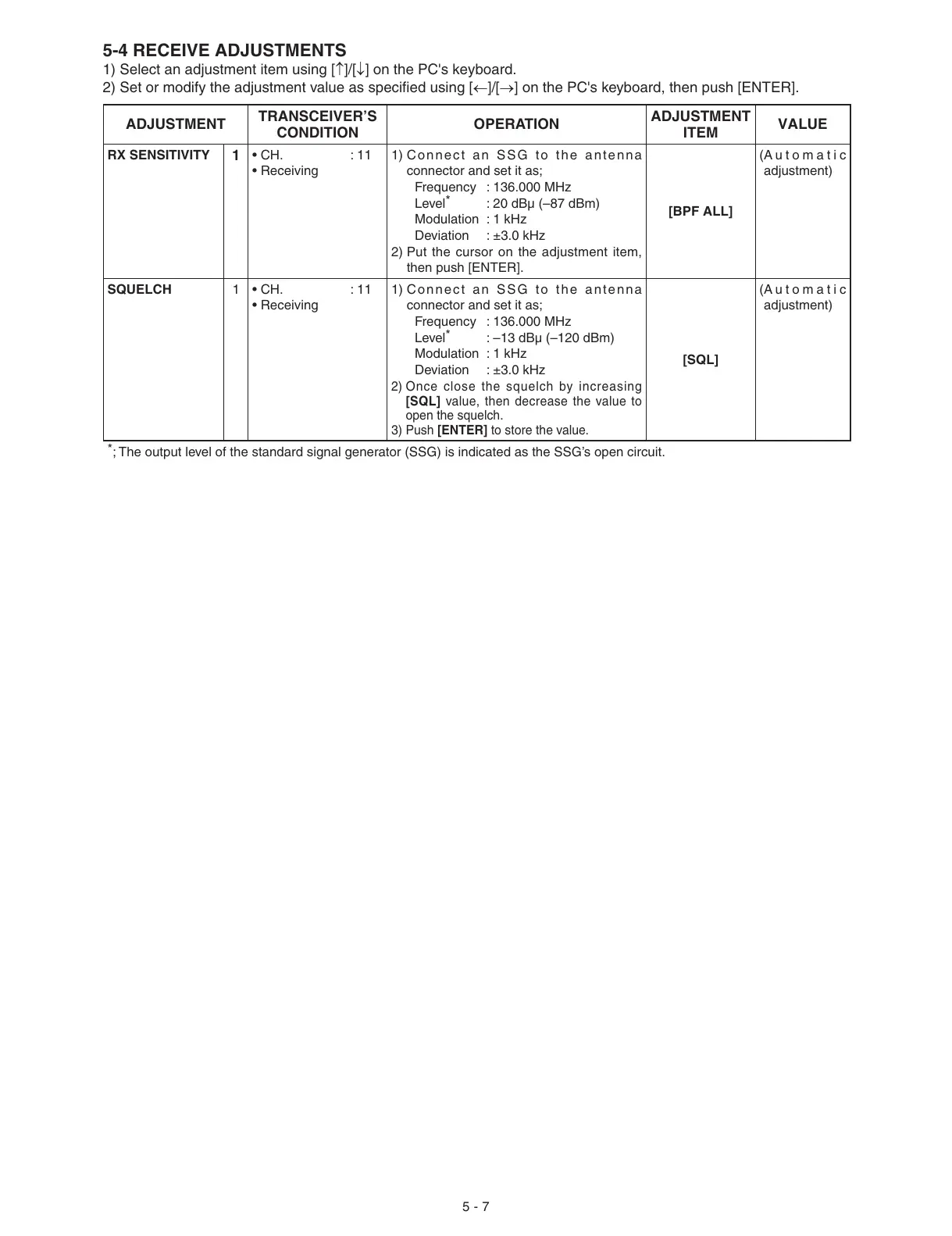

5-4 RECEIVE ADJUSTMENTS
1) Select an adjustment item using [
↑
]/[
↓
] on the PC's keyboard.
2) Set or modify the adjustment value as specifi ed using [
←
]/[
→
] on the PC's keyboard, then push [ENTER].
ADJUSTMENT
TRANSCEIVER’S
CONDITION
OPERATION
ADJUSTMENT
ITEM
VALUE
RX SENSITIVITY
1
• CH. : 11
• Receiving
1) Connect an SSG to the antenna
connector and set it as;
Frequency : 136.000 MHz
Level
*
: 20 dBµ (–87 dBm)
Modulation : 1 kHz
Deviation : ±3.0 kHz
2) Put the cursor on the adjustment item,
then push [ENTER].
[BPF ALL]
( Automatic
adjustment)
SQUELCH 1 • CH. : 11
• Receiving
1) Connect an SSG to the antenna
connector and set it as;
Frequency : 136.000 MHz
Level
*
: –13 dBµ (–120 dBm)
Modulation : 1 kHz
Deviation : ±3.0 kHz
2) Once close the squelch by increasing
[SQL] value, then decrease the value to
open the squelch.
3) Push [ENTER] to store the value.
[SQL]
( Automatic
adjustment)
*
; The output level of the standard signal generator (SSG) is indicated as the SSG’s open circuit.
