REMOTE CONTROL OPERATION
1
DD
System control command
NOTE: All commands must be entered within 10 sec. of entering a password. It is possible to enter the
password and command continuously.
Format of Command
• Basic command code
The Basic command code consists of a fixed 4-digit command code, preceded by a 1-digit Header Tone, and
followed by a 1-digit De-limiter Tone.
Header Tone
The Header tone is sent ahead of the command and indicates the start of the command. This tone is a
fixed 1-digit from 0—9, A—D, ∗(E), #(F) (programmed using CS-FR3000). The default setting is ∗(E).
De-limiter Tone
The De-limiter is sent between commands and at the end of remote control codes. This tone indicates a
space between segments of the command as well as the end of the command. This tone is a fixed 1-digit
from 0—9, A—D, ∗(E), #(F) (programmed using CS-FR3000). The default setting is #(F).
Command Code
This field indicates the pre-programmed command or action to be executed. These codes are pro-
grammed to fixed 4-digit codes in cloning software, and may include characters from 0—9, A—D, ∗(E),
#(F).
• Command code with sub code
The Command code with Sub code consists of basic command code and sub code (additionally required
information).
Sub Code
This field is entered following the command code and indicates a memory channel number (for Memory
CH Select), an Autodial number (for Telephone Autodial), or a telephone number (for manual Tel dial com-
mands). The Sub Code will be a fixed 2-digit code for Memory CH Select and Telephone Autodial com-
mands or may be up to 24-digits for Tel dial command.
• Command with password and sub code continuously
This is the format required for entering commands for remote control operation.
Password
The Password is a type of command code. The FR3000/FR4000 will enter the “System Control standby
mode” when it receives this command while in normal operating mode. This is a fixed 4-digit code that
is programmed using cloning software and may include digits from 0—9, A—D, ∗(E), #(F).
Header
Tone
De-limiter
Tone
De-limiter
Tone
De-limiter
Tone

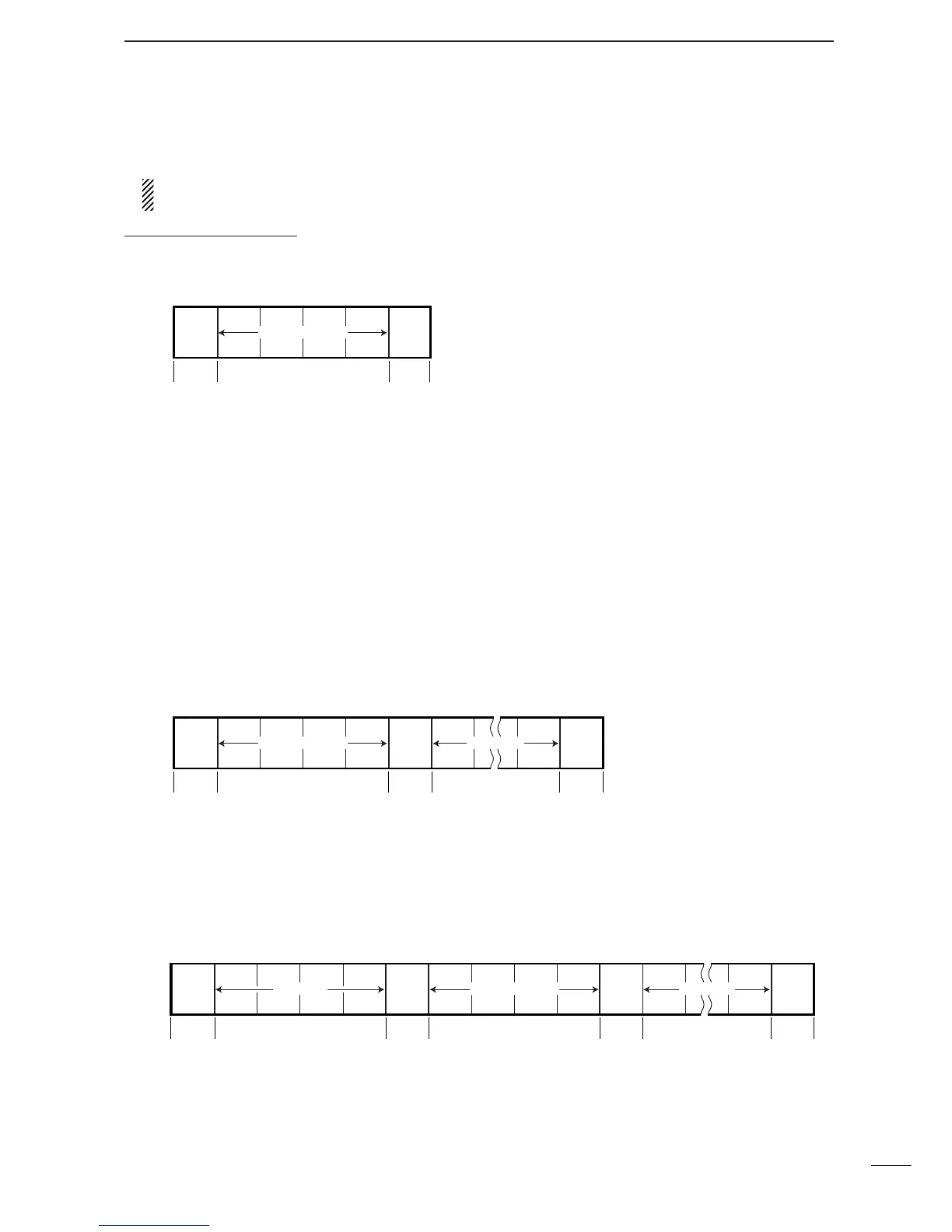

Password Command Code Sub Code
digits 11123 4
1123 4 1••••• N1
Header
Tone
De-limiter
Tone
De-limiter
Tone
Command Code Sub Code
digits 1111
••••• N123 4
Header
Tone
De-limiter
Tone
Command Code
digits 11123 4
1-2 REMOTE CONTROL OPERATION
