Icom IC-R8500 Service Manual

3-1

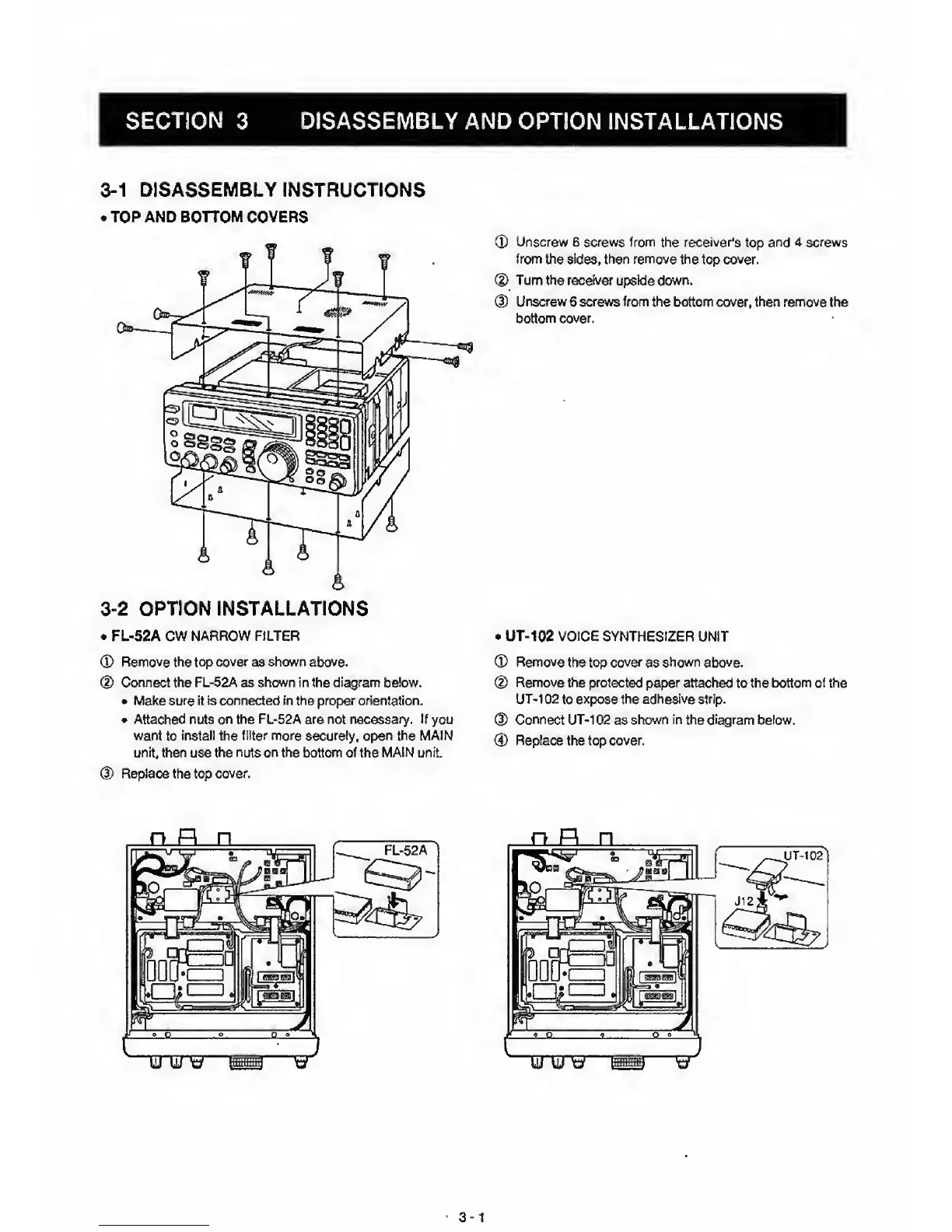

DISASSEMBLY INSTRUCTIONS
.
TOP AND
BOTTOM COVERS
3-2
OPTION INSTALLATIONS
•
FL-52A CW
NARROW FILTER
®
Remove the top
cover
as
shown
above.
(D
Connect the FL-52A as shown in the diagram below.
•
Make sure it is connected in the proper orientation.
Attached nuts on
the FL-52A are
not
necessary. If
you
want
to
install
the
filter
more securely, open the
MAIN
unit, then
use
the nuts on
the bottom of the
MAIN
unit
d)
Replace
the top
cover.
®
Unscrew
6 screws from the receiver's
top
and 4 screws
from
the
sides, then remove the
top cover.
®
Turn the receiver
upside down.
d)
Unscrew
6
screws from the bottom
cover,
then
remove the
bottom cover.
•
UT-102 VOICE SYNTHESIZER
UNIT
®
Remove
the top cover
as
shown above.
(D
Remove the
protected paper attached
to
the bottom of the
UT-102
to
expose the adhesive strip,
d)
Connect UT-1 02
as
shown
in
the diagram below.
®
Replace
the top
cover.
