PANEL DESCRIPTION
2001 NEW
1
q INTERNAL SPEAKER
Monitors received signals.
w VOLUME CONTROL [VOLUME] (p. 7)
Adjusts the audio output level.
e SELECTOR DIAL [SELECT]
Rotate to adjust the squelch threshold level, select
the operating channel. (Depending on the pre-
programmed condition.)
r POWER INDICATOR [POWER]
➥ Lights green at ‘A’ module's indicator while the
repeater power is turned ON.
When a channel extension module is installed:
➥ Lights green at the selected module indicator
(‘A’ or ‘B’) while the repeater power is turned
ON.
➥ Lights orange at the un-selected module indica-
tor (‘A’ or ‘B’) while the repeater power is turned
ON.
t TRANSMIT INDICATOR [TX]
Lights red while transmitting.
y BUSY INDICATOR [BUSY]
Lights green while receiving a signal or when the
noise squelch is open.
About [PWR], [TX] and [BUSY] indicators:
‘A’ and ‘B’ modules indicators are available for
these indications. ‘A’ module's indicator correspond
to the original module, and ‘B’ module's indicator
correspond to an extended module.
u
MICROPHONE CONNECTOR [MIC]
This 8-pin modular jack accepts the optional micro-
phone.
KEEP the [MIC] connector cover attached to the
repeater when the optional microphone is not
used.
q +8 V DC output (Max. 15 mA)
w Output port for PC programming
e NC
r M PTT (Input port for TX control)
t Microphone ground
y Microphone input
u Ground
i Input port for PC programming
i POWER SWITCH [POWER]
➥ Push to turn the repeater power ON.
➥ Push and hold for 3 sec. to turn the repeater
power OFF.
When a channel extension module is installed:
➥ While the repeater power is turned ON, push
to select the desired module to operate the re-
peater as the base station.
• The power indicator of the selected module unit
lights green.
o DEALER-PROGRAMMABLE KEYS
Desired functions can be programmed indepen-
dently by your dealer.
Ask your dealer for details.
• Because these keys are programmable, the functions
of these keys are unique to each unit.

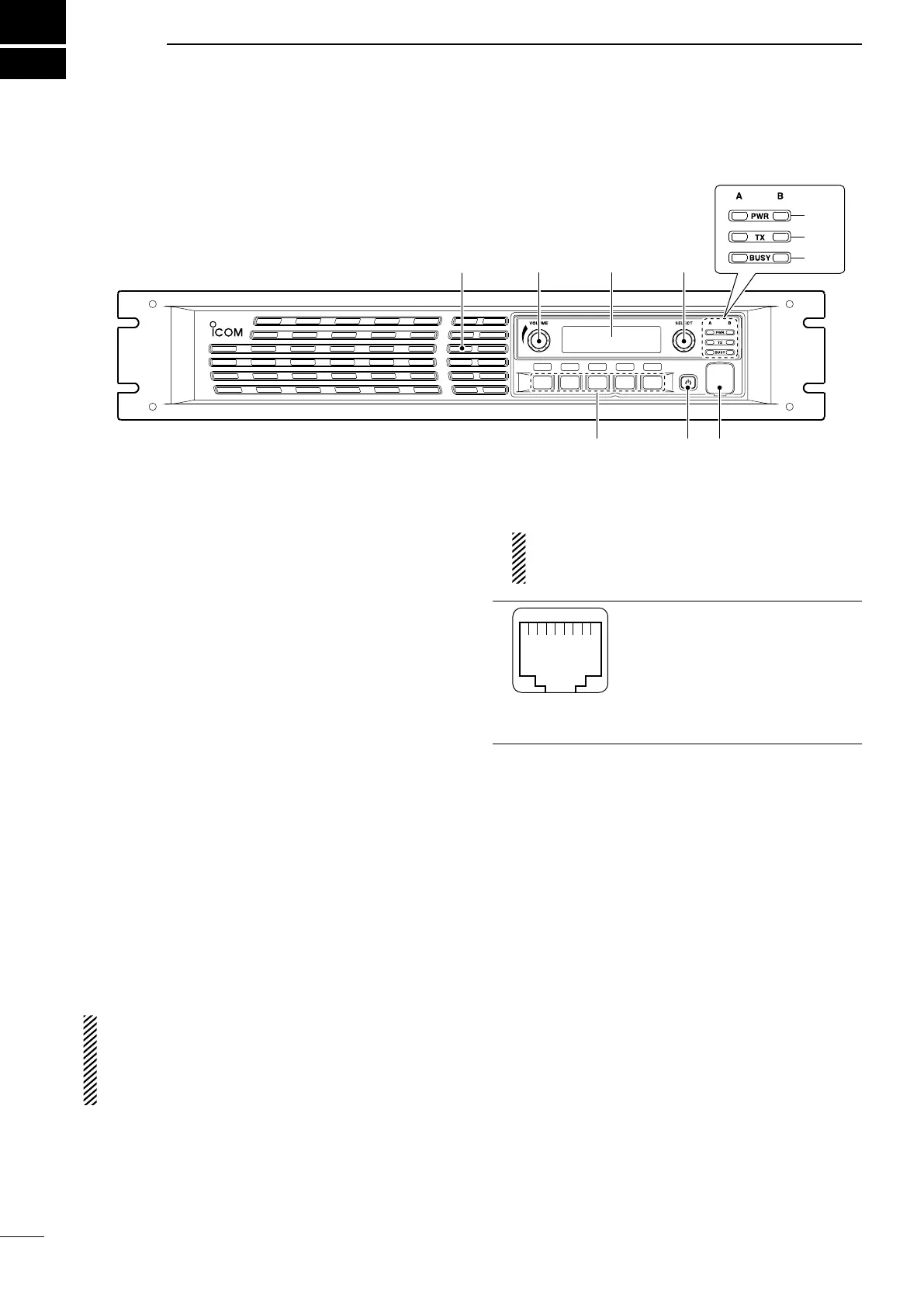

n Front panel
To Next Page
