IDEAL Concord CX40 User Manual

10
Concord CX - Installation
Legend
1. Cleanout cover
2. Collector hood
3. Middle section
4. Section alignment rings & 'O' rings
5. End section
6. Gas cock
13. Section bolt
14. Distribution tube
15. Tie rods
16. Thermostat pocket
17. Spillage skirt
18. Flueway baffles
19. Gas pipe
7. Drain cock
8. NOx duct
9. Front plate
10. Burner manifold assy.
11. Base plate
12. Combustion chamber

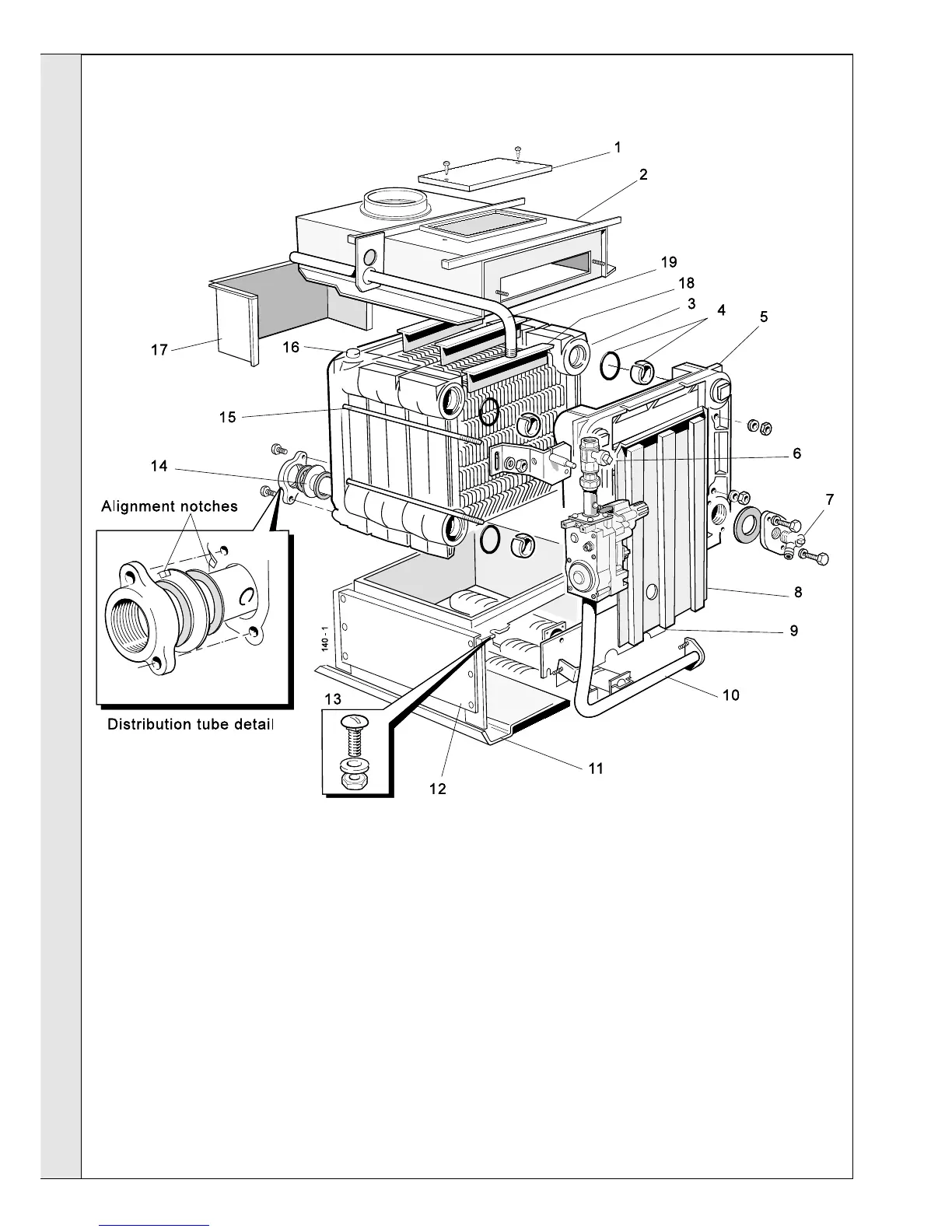

5 CONCORD CX BOILER ASSEMBLY - Exploded view
INSTALLATION
INSTALLATION

IDEAL Concord CX40 Specifications

General

Brand	IDEAL
Model	Concord CX40
Category	Boiler
Language	English
