Concord CXA/H - Installation and Servicing
9
INSTALLATION
CASING PACK contains:
• Front panel ...................... 1 off
• Side panel....................... 2 off
• Top panel ........................ 1 off
• Top support bracket ........ 2 off
• Flue brush....................... 1 off
• Casing hardware pack ... 1 off
Legend
1. Cleanout cover
2. Collector hood
3. Middle section
4. Section alignment rings & 'O' rings
5. End section
6. Gas cock
10. Burner manifold assy.
11. Base plate
12. Combustion chamber
7. Drain cock
8. NOx duct
9. Front plate
5

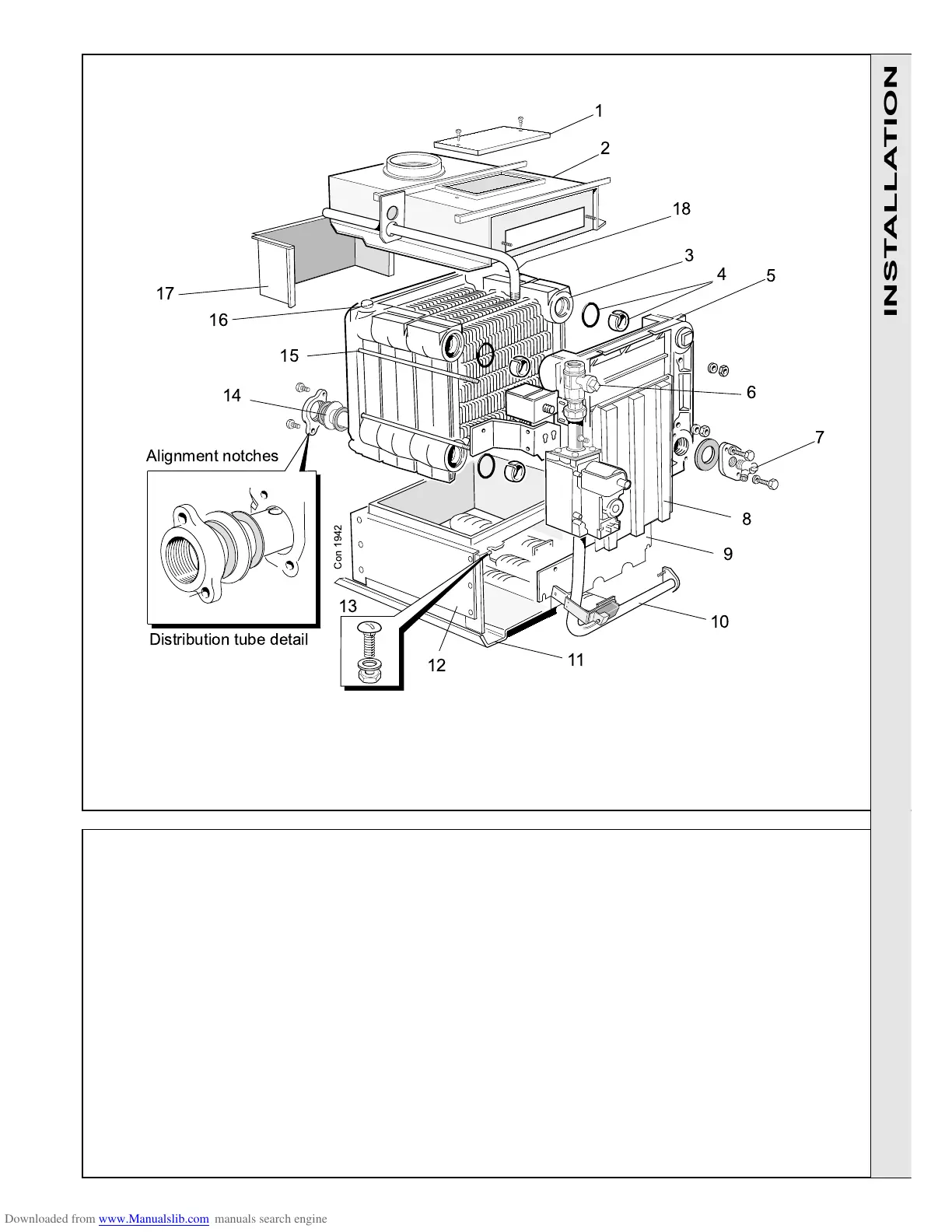

CONCORD CXA/H BOILER ASSEMBLY - Exploded view
6
PACKAGING
Check that all these packages are complete and have been
correctly received on site.
Factory assembled boilers are despatched from the works as
fully packaged units comprising:
1. Assembled boiler body (with distributor tube) on a wooden
pallet base enclosed in a wooden crate.
2. Carton containing the casing, fastenings and flue brush.
3. Carton containing the installation pack and instruction books.
4. Carton containing the control box.
INSTALLATION HARDWARE PACK contains:
• M10 washer ..................................... 4 off
• Split pin ............................................ 1 off
• Strain relief bush ............................. 1 off
• M10 x 25 Hex. Hd. screw ................. 2 off
• M10 x 35 Hex. Hd. screw ................. 2 off
• Gasket EPDM Type EP600 .............. 3 off
• Plug 2" taper Sq.Hd. ........................ 3 off
• Installation/Service instructions ...... 1 off
• User's instructions .......................... 1 off
• Flange RC 1" ................................... 1 off
• 2" BSP Flange (distributor tube) ...... 1 off
• 2" Installation pipe (handling bars) . 2 off
• Thermostat pockets ......................... 2 off
13. Section bolt
14. Distribution tube
15. Tie rods
16. Thermostat pocket
17. Spillage skirt
18. Gas pipe
Con 1942
Alignment notches
Distribution tube detail
1
2
18
3
4
5
7
8
6
9
10
11
12
13
14
15
16
17
INSTALLATION
