SERVICING

Esprit - Installation and Servicing

Ecl 6073

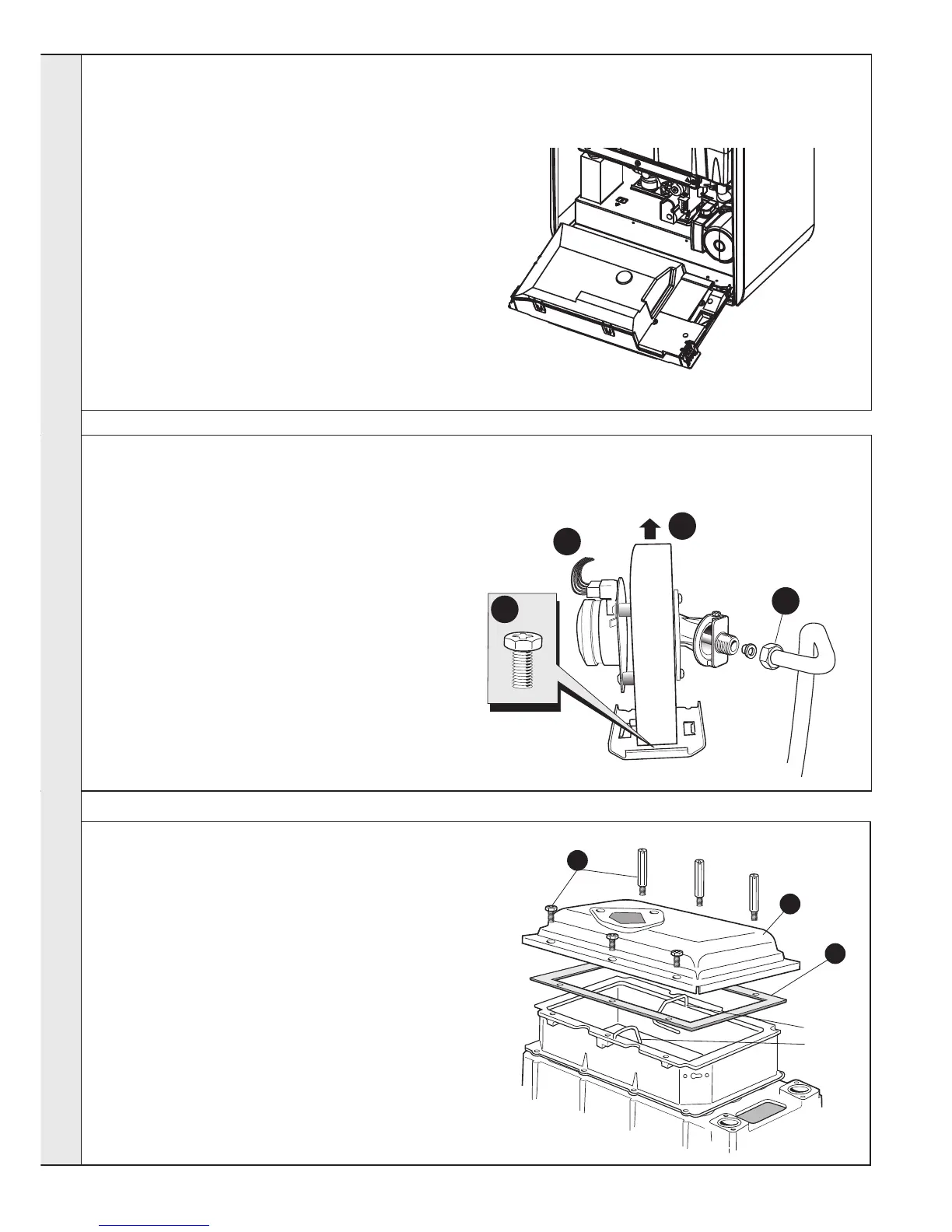

FAN AND VENTURI ASSEMBLY REMOVAL AND CLEANING

BURNER REMOVAL AND CLEANING

1. Remove the 6 screws securing the burner (the 3 screws at the

rear are extended to ease access).

2. Lift off the burner from the combustion chamber.

IMPORTANT

The burner head is a ceramic plaque construction. Care must

be taken to ensure that the burner is not placed down upon its

face as this may cause damage to the ceramic.

3. Brush off any deposits that may be on the ceramic with a SOFT

brush.

4. Inspect the sealing gasket around the burner and combustion

chamber insulation for any signs of damage. Replace as

necessary.

Note.

Take care not to disturb the ionisation probes at the front and rear

of the combustion chamber.

1. Disconnect the electrical leads from the

fan.

2. Undo the gas pipe union connection to the

injector housing.

3. Undo the screw on the fan mounting

bracket.

4. Lift off fan and venturi assembly.

5. Inspect the injector for blockage or

damage.

nm7400

Ionisation

Probes

THE CONTROL BOX IN THE SERVICING POSITION

1. Pull the panel forward at the top to disengage the

two clips.

2. Carefully swing the control down into its

servicing position.

esp8854

SERVICING
