Installation and Servicing
SECTION 2 - INSTALLATION

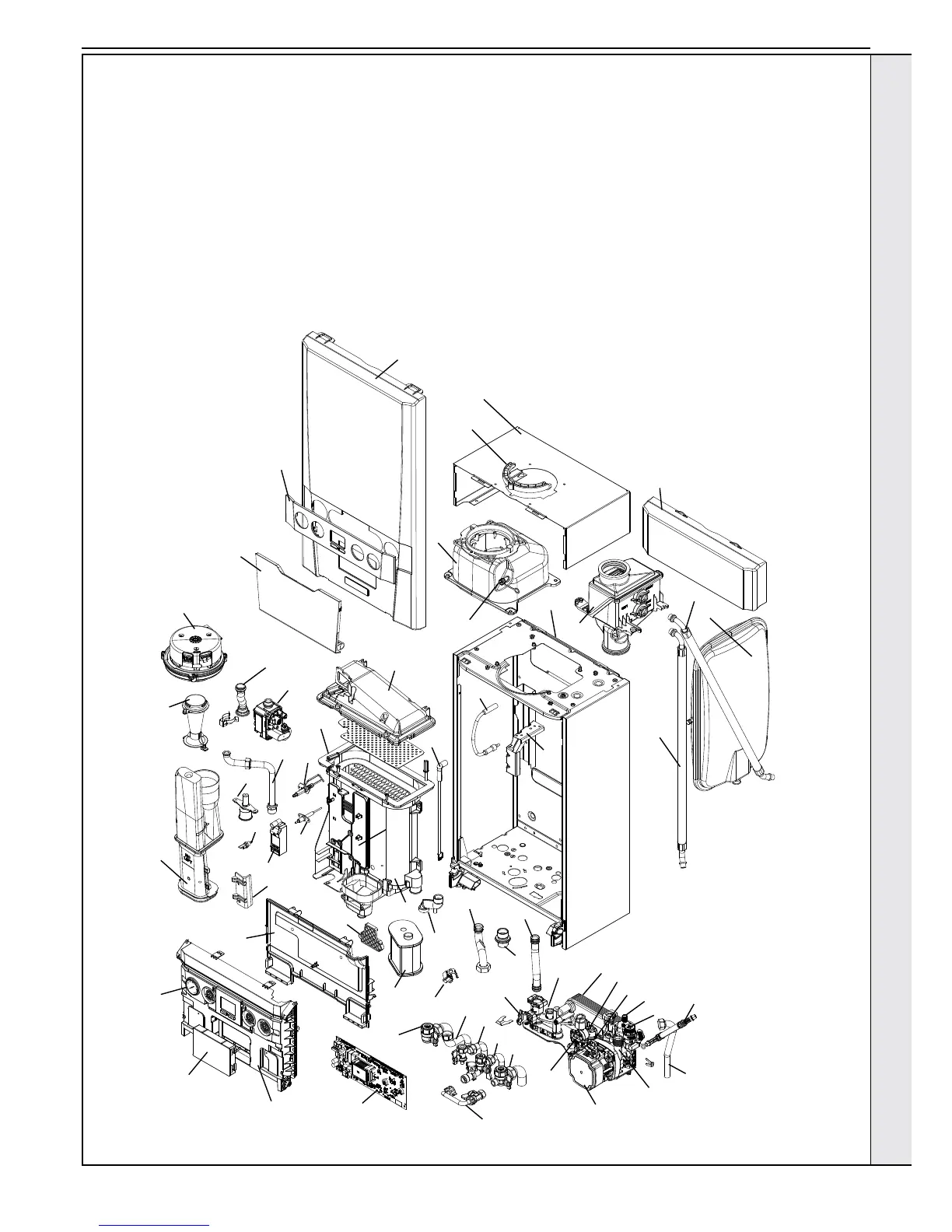

2.1 BOILER ASSEMBLY - Exploded View
Note that item numbers are linked to the spares list
104 CH Return Valve
105 CH Flow Valve
106 DHW Inlet & Outlet
107 Filling Loop
108 Pump Head
110 Air Vent Pump
111 Divertor Valve Head
112 Divertor Valve Cartridge
113 Pressure Relief Valve
114 Pipe - PRV Outlet
115 Pipe - Flow
116 Pipe - Return
117 Pipe - Expansion Vessel
118 Expansion Vessel
119 Return Group Manifold
120 Flow Group Manifold
121 Plate Heat Exchanger
127 Flow Turbine
131 Water Pressure Switch
135 Pressure Gauge
203 Gas Cock
204 Pipe - Gas Inlet
205 Gas Valve
206 Pipe - Gas Injector
211 Injector Assy
214 Venturi
215 Fan
217 Burner
218 Gasket - Burner
221 Sump Clean Out Cover
223
Flue Manifold
224 Recuperator Assy
226 Air Duct Assy
228 Recuperator Inlet Pipe
229 Recuperator Outlet Pipe
231 Guide Bracket
232 Clamp Retaining Flue Turret
233 Hose Condensate Internal
234 Siphon Trap
236
Condensate Outlet Connection
238 Flue Sensing Nipple
302 PCB
304
Control Thermistor (Return)
306 Electrode Ignition
307 Electrode Detection
308 Ignitor Unit
309 Thermistor Flow
313 Ignition Lead
320 Detection Lead
324 Control Box Lid
325 Control Box Front
326 Blank Insert
401 Heat Engine
503 Wall Mounting Bracket
504 Front Panel
505 Fascia
506 Bracket - Gas Valve
507 Bracket - Expansion Vessel
512 Casing Door
514 Front Panel Door
516 Module Casing
516
232
512
224
118
228
229
507
226
238
503
114
117
108
221
204
205
206
211
506
308
214
218
320
401
313
302
325
326
231
223
217
309
307
306
304
233
236
116
104
106
203
106
135
105
121
111
112
504
505
514
215
324
234
107
110
113
119
131
120
127
115
INSTALLATION
