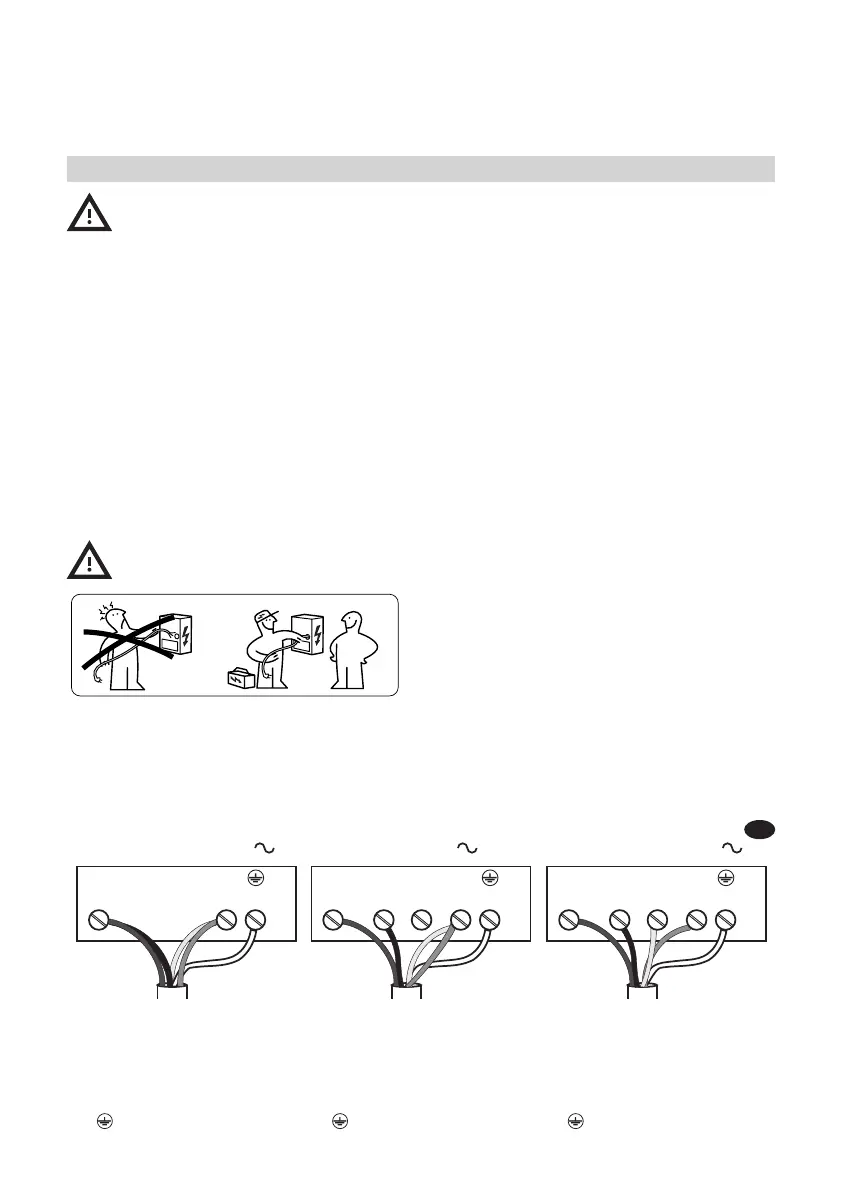

Electrical connection
WARNING: All electrical connections
must be carried out by an authorised
installer.
• Before making the connections, check that
the rated voltage of the appliance indicated
on the respective rating plate corresponds
to the power supply voltage. The rating
• Follow the connection diagram (located on
the underside of the hob).
• Only use original components supplied by
the spare parts service.
• The appliance is supplied with a connection
cable.
• If damaged, replace the power supply
cables with the respective original spare
cables. Please contact your local IKEA store
call centre.
Caution! Do not weld any of the cables!
13
Warning Strips
Warning strips show that specialist should do the connecting water, gas and electricity:
The electricity installation
specialist.
The gas installation specialist.
The water installation
specialist.
Electrical connection
• The wire connection has to be done by
specialized technician.
• This appliance has a Type “Y” attachment
and requires at least a power supply cord
2,5 mm². External diameter of the supply
• This appliance has a Type “Y” attachment
5x2,5 mm².
• Connection terminals are revealed when the
connection box cover is removed.
• Make sure the characteristics of the
household electrical system (voltage,
maximum power and current) are
compatible with those of the appliance.
• Connect the appliance like shown in the
diagram (in accordance with the mains
voltage and country standard reference).
L = Black
L = Brown
N = Blue
N = Grey
= Yellow / Green
L1 = Brown
L2 = Black
N = Blue
N = Grey
= Yellow / Green
L1 = Brown
L2 = Black
N1 = Blue
N2 = Grey
= Yellow / Green
220V - 240V 1N 400V 2N
L1 L2 L3 NN L1 L2 N2N1
220V - 240V 2N
L
Connection diagram
